34 - Husqvarna Chainsaw (1980-01) 34 General Assembly Parts Diagram

Chainsaw

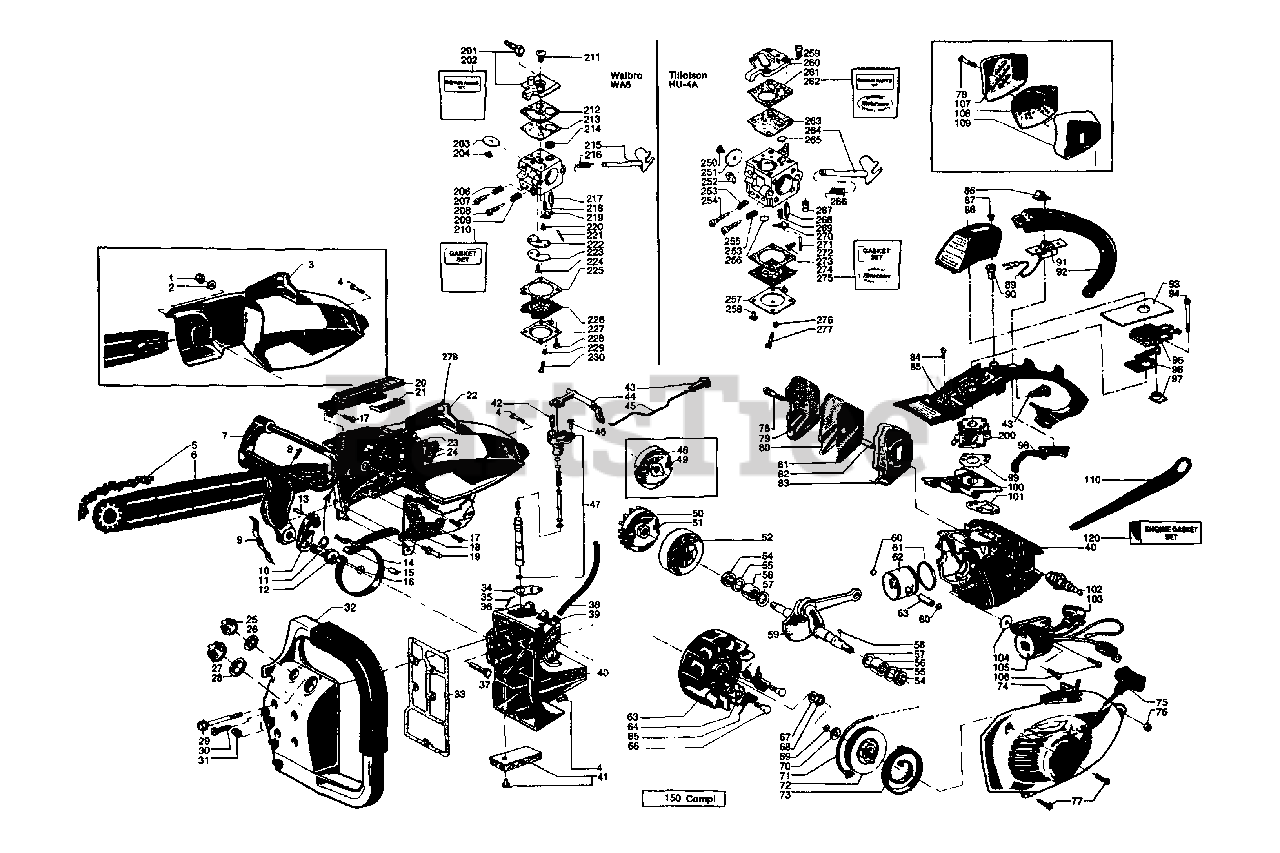

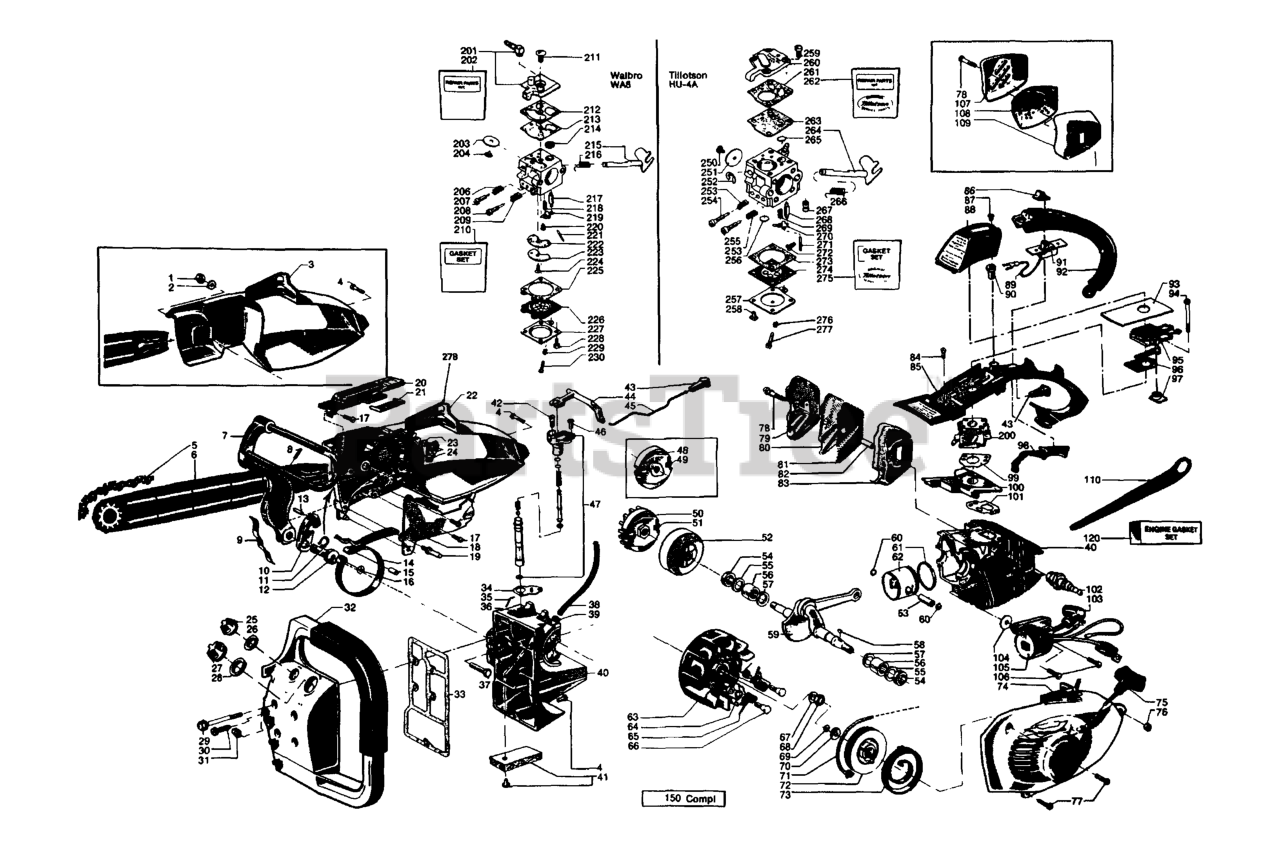

34 General Assembly Parts Diagram

  • Title

1

Husqvarna 505180073

USE 504 350917 NUT

$

$

Not available

2

Husqvarna 505180359

WASHER
(Superseded to 507520803)

$

$

Not available

3

Husqvarna 505320864

CLUTCH COVER

$

$

Not available

4

Husqvarna 505736210

SCREW
(Superseded to 530015239)

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 501716402

$

$

Currently unavailable

5

Husqvarna 501736302

$

$

Currently unavailable

6

Husqvarna 501716502

BAR 12 '' 3/8''

$

$

Not available

6

Husqvarna 501736202

$

$

Currently unavailable

7

Husqvarna 505318257

$

$

Currently unavailable

8

Husqvarna 505317569

SET SCREW

$

$

Not available

9

Husqvarna 505317551

SPRING NLA

$

$

Not available

10

Husqvarna 505317550

USE 507 317550 LEVER

$

$

Not available

11

Husqvarna 505317574

LOCKRING

$

$

Not available

12

Husqvarna 505317552

HAND GUARD SHAFT NLA

$

$

Not available

13

Husqvarna 505317573

DOWEL PIN

$

$

Not available

14

Husqvarna 505317556

BRAKE BAND

$

$

Not available

15

Husqvarna 505317572

SPACER

$

$

Not available

16

Husqvarna 505317568

USE 507 508500 WASHER

$

$

Not available

17

Husqvarna 505317570

$

$

Currently unavailable

18

Husqvarna 505317557

PROTECTION PLATE

$

$

Not available

19

Husqvarna 505318258

CHAIN CATCHER

$

$

Not available

20

Husqvarna 505315383

SHIM

$

$

Not available

21

Husqvarna 505317554

INDICATOR

$

$

Not available

22

Husqvarna 505320868

$

$

Currently unavailable

23

Husqvarna 505317571

$

$

Currently unavailable

24

Husqvarna 505317553

COVER PLATE

$

$

Not available

25

Husqvarna 505180638

OIL TANK CAP

$

$

Not available

26

Husqvarna 505180258

$

$

Currently unavailable

27

Husqvarna 505317888

FUEL TANK CAP

$

$

Not available

28

Husqvarna 505180186

USE 505 094012 GASKET

$

$

Not available

29

Husqvarna 505806010

SCREW NLA

$

$

Not available

30

Husqvarna 505732060

REPL BY 505 80 00-92
(Superseded to 505800092)

$

$

Not available

31

Husqvarna 505180282

$

$

Currently unavailable

32

Husqvarna 505320867

TANK & HANDLE

$

$

Not available

33

Husqvarna 505313478

GASKET

$

$

Not available

34

Husqvarna 505180252

GASKET

$

$

Not available

35

Husqvarna 505180015

VENT WIRE

$

$

Not available

36

Husqvarna 505043262

VALVE NLA

$

$

Not available

37

Husqvarna 505180013

BAR BOLT

$

$

Not available

38

Husqvarna 505180206

$

$

Currently unavailable

39

Husqvarna 505177229

$

$

Currently unavailable

40

Husqvarna 505320866

CYLINDER & CRANKCASE

$

$

Not available

41

Husqvarna 505180635

USE 504 350848 FUEL FILTE

$

$

Not available

42

Husqvarna 505730810

SCREW

$

$

Not available

43

Husqvarna 505180190

OIL PUMP BUTTON

$

$

Not available

44

Husqvarna 505312808

CROSS SHAFT

$

$

Not available

45

Husqvarna 505312822

PUSH ROD NLA

$

$

Not available

46

Husqvarna 505720610

SCREW

$

$

Not available

47

Husqvarna 505180792

OIL PUMP ASSY NLA

$

$

Not available

48

Husqvarna 505180647

REPL BY 504 35 07-90
(Superseded to 507100540)

$

$

Not available

49

Husqvarna 505180373

$

$

Currently unavailable

50

Husqvarna 505318143

$

$

Currently unavailable

51

Husqvarna 505180373

$

$

Currently unavailable

52

Husqvarna 505071956

$

$

Currently unavailable

53

Husqvarna 505180017

$

$

Currently unavailable

54

Husqvarna 505180033

USE 504 350707 SEAL RING

$

$

Not available

55

Husqvarna 505180166

USE 504 350706 WASHER

$

$

Not available

56

Husqvarna 505180030

USE 504 350705 NEEDLE BEA

$

$

Not available

57

Husqvarna 505180024

$

$

Currently unavailable

58

Husqvarna 505180303

$

$

Currently unavailable

59

Husqvarna 505318270

USE 507 101602 CRANKSHAFT

$

$

Not available

60

Husqvarna 505180047

$

$

Currently unavailable

61

Husqvarna 505180050

$

$

Currently unavailable

62

Husqvarna 505312836

REPL BY 504 35 08-89
(Superseded to 507101601)

$

$

Not available

63

Husqvarna 505317683

USE 507 317682 FLYWHEEL

$

$

Not available

64

Husqvarna 505180086

USE 504 350732 SPRING

$

$

Not available

65

Husqvarna 505180085

USE 504 350890 STARTER PA

$

$

Not available

66

Husqvarna 505180084

$

$

Currently unavailable

67

Husqvarna 505023622

$

$

Currently unavailable

68

Husqvarna 505850365

$

$

Currently unavailable

69

Husqvarna 505180324

$

$

Currently unavailable

70

Husqvarna 505180323

$

$

Currently unavailable

71

Husqvarna 505318303

USE 507 100075 ROPE

$

$

Not available

72

Husqvarna 505180298

USE 504 350724 STARTER PU

$

$

Not available

73

Husqvarna 505315882

USE 504 350725 RECOIL SPR

$

$

Not available

74

Husqvarna 505320863

FAN CASING

$

$

Not available

75

Husqvarna 505180337

USE 507 431441 STARTER HA

$

$

Not available

76

Husqvarna 505850210

NUT NLA

$

$

Not available

77

Husqvarna 505736410

SCREW NLA

$

$

Not available

78

Husqvarna 505727210

USE 507 727210 SCREW

$

$

Not available

79

Husqvarna 505317578

MUFFLER COVER

$

$

Not available

80

Husqvarna 505317582

SPARK ARRESTOR

$

$

Not available

81

Husqvarna 505317581

MUFFLER BAFFLE

$

$

Not available

82

Husqvarna 505317583

SPACER

$

$

Not available

83

Husqvarna 505317577

MUFFLER BODY

$

$

Not available

84

Husqvarna 50531280

$

$

Currently unavailable

85

Husqvarna 505312802

$

$

Currently unavailable

86

Husqvarna 505312824

TOGGLE CAP NLA

$

$

Not available

87

Husqvarna 505790660

SCREW NLA

$

$

Not available

88

Husqvarna 505312821

INTAKE COVER NLA

$

$

Not available

89

Husqvarna 505312825

LEAD WIRE NLA

$

$

Not available

90

Husqvarna 505312803

THREAD INSERT NLA

$

$

Not available

91

Husqvarna 505312823

SWITCH NLA

$

$

Not available

92

Husqvarna 505312806

HANDLE FILLER NLA

$

$

Not available

93

Husqvarna 505180174

$

$

Currently unavailable

94

Husqvarna 505728610

SCREW NLA

$

$

Not available

95

Husqvarna 505312804

CHOKE HOLDER

$

$

Not available

96

Husqvarna 5053128415

$

$

Currently unavailable

97

Husqvarna 505312800

SPACER

$

$

Not available

98

Husqvarna 505312807

THROTTLE TRIGGER
(Superseded to 505851100)

$

$

Not available

99

Husqvarna 505180098

GASKET NLA

$

$

Not available

100

Husqvarna 505180096

INSUL.FLANGE

$

$

Not available

101

Husqvarna 505180097

GASKET

$

$

Not available

102

Husqvarna 505180523

USE 503 235203 SPARK PLUG

$

$

Not available

103

Husqvarna 505317796

IGNITION LEAD

$

$

Not available

104

Husqvarna 505317261

WASHER NLA

$

$

Not available

105

Husqvarna 505317699

USE 507 317699 COIL

$

$

Not available

106

Husqvarna 505317898

$

$

Currently unavailable

107

Husqvarna 505180136

MUFFLER COVER NLA

$

$

Not available

108

Husqvarna 505180131

BAFFLE NLA

$

$

Not available

109

Husqvarna 505180135

MUFFLER BODY NLA

$

$

Not available

110

Husqvarna 505180522

SOCKET WRENCH NLA

$

$

Not available

120

Husqvarna 505180710

GASKET SET NLA

$

$

Not available

200

Husqvarna 505180095

CARBURETOR NLA

$

$

Not available

201

Husqvarna 505520103

PUMP COVER

$

$

Not available

202

Husqvarna 505520130

REPAIR PARTS KIT

$

$

Not available

203

Husqvarna 505520105

THROTTLE FLAP

$

$

Not available

204

Husqvarna 505468701

$

$

Currently unavailable

206

Husqvarna 505467301

$

$

Currently unavailable

207

Husqvarna 505520124

NO LONGER AVAILABLE NLA

$

$

Not available

208

Husqvarna 505520123

ADJ.SCREW H NLA

$

$

Not available

209

Husqvarna 505520119

$

$

Currently unavailable

210

Husqvarna 505520131

DIAPHRAGM SET
(Superseded to 501883401)

$

$

Not available

211

Husqvarna 501466901

SCREW

$3.99

$

In Stock, Qty 5

0

212

Husqvarna 505520108

GASKET, FUEL PUMP

$

$

Not available

213

Husqvarna 505520111

FUEL PUMP DIAPHRAGM

$

$

Not available

214

Husqvarna 501469801

SCREEN
(Superseded to 501666101)

$6.99

$

Usually ships in 3-10 days

0

215

Husqvarna 505520104

THROTTLE SHAFT

$

$

Not available

216

Husqvarna 505520122

SPRING, THROTTLE RETURN

$

$

Not available

217

Husqvarna 501466701

INLET NEEDLE
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

218

Husqvarna 505520121

LEVER SPRING

$

$

Not available

219

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

220

Husqvarna 505520115

$

$

Currently unavailable

221

Husqvarna 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

222

Husqvarna 505520109

GSKT
(Superseded to 501781301)

$

$

Not available

223

Husqvarna 505520126

USE 505 316765 PLATE

$

$

Not available

224

Husqvarna 505520116

$

$

Currently unavailable

225

Husqvarna 505520110

GASKET, METERING SIDE

$

$

Not available

226

Husqvarna 505520113

DIAPHRAGM
(Superseded to 504130808)

$8.99

$

In Stock, only 2 left!

0

227

Husqvarna 505520102

DIAPHRAGM COVER

$

$

Not available

228

Husqvarna 501468801

SCREW
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

229

Husqvarna 505316724

PRESSURE SPRING NLA

$

$

Not available

230

Husqvarna 505520112

IDLE SPEED SCREW

$

$

Not available

250

Husqvarna 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0

251

Husqvarna 505316396

THROTTLE FLAP

$

$

Not available

252

Husqvarna 501222901

CLIP NLA

$

$

Not available

253

Husqvarna 501221701

SPRING

$3.49

$

In Stock, Qty 8

0

254

Husqvarna 505316389

USE 501 713401 ADJ SCREW

$

$

Not available

255

Husqvarna 505316391

ADJ.SCREW HIGH SPEED NLA

$

$

Not available

256

Husqvarna 501712501

WELCH PLUG

$

$

Not available

257

Husqvarna 505316388

REPL BY 501 71 28-01
(Superseded to 501712801)

$

$

Not available

258

Husqvarna 501221101

REPL BY 503 48 63-01
(Superseded to 503486301)

$4.99

$

In Stock, only 2 left!

0

259

Husqvarna 501713301

SCREW

$

$

Not available

260

Husqvarna 505316378

FUEL PUMP COVER

$

$

Not available

261

Husqvarna 501713001

GASKET, PUMP SIDE

$

$

Not available

262

Husqvarna 505316398

REPAIR PARTS KIT NLA

$

$

Not available

263

Husqvarna 501713101

FUEL PUMP DIAPHRAGM

$

$

Not available

264

Husqvarna 505316393

THROTTLE SHAFT

$

$

Not available

265

Husqvarna 501222401

FILTER
(Superseded to 578004601)

$

$

Not available

266

Husqvarna 505316395

SPRING

$

$

Not available

267

Husqvarna 501714501

$

$

Currently unavailable

268

Husqvarna 501466701

INLET NEEDLE
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

269

Husqvarna 505316390

USE 502 058102 LEVER SPRI

$

$

Not available

270

Husqvarna 501713801

LEVER

$

$

Not available

271

Husqvarna 501713901

PIN NLA

$

$

Not available

272

Husqvarna 501222201

SCREW

$

$

Not available

273

Husqvarna 501712601

GASKET, METERING SIDE

$

$

Not available

274

Husqvarna 501712701

METERING DIAPHRAGM

$

$

Not available

275

Husqvarna 502058701

$

$

Currently unavailable

276

Husqvarna 501220901

METERING DIAPHRAGM

$25.99

$

In Stock, Qty 11

0

277

Husqvarna 501221801

SCREW

$3.49

$

Usually ships in 3-10 days

0

278

Husqvarna 505320865

$

$

Currently unavailable
