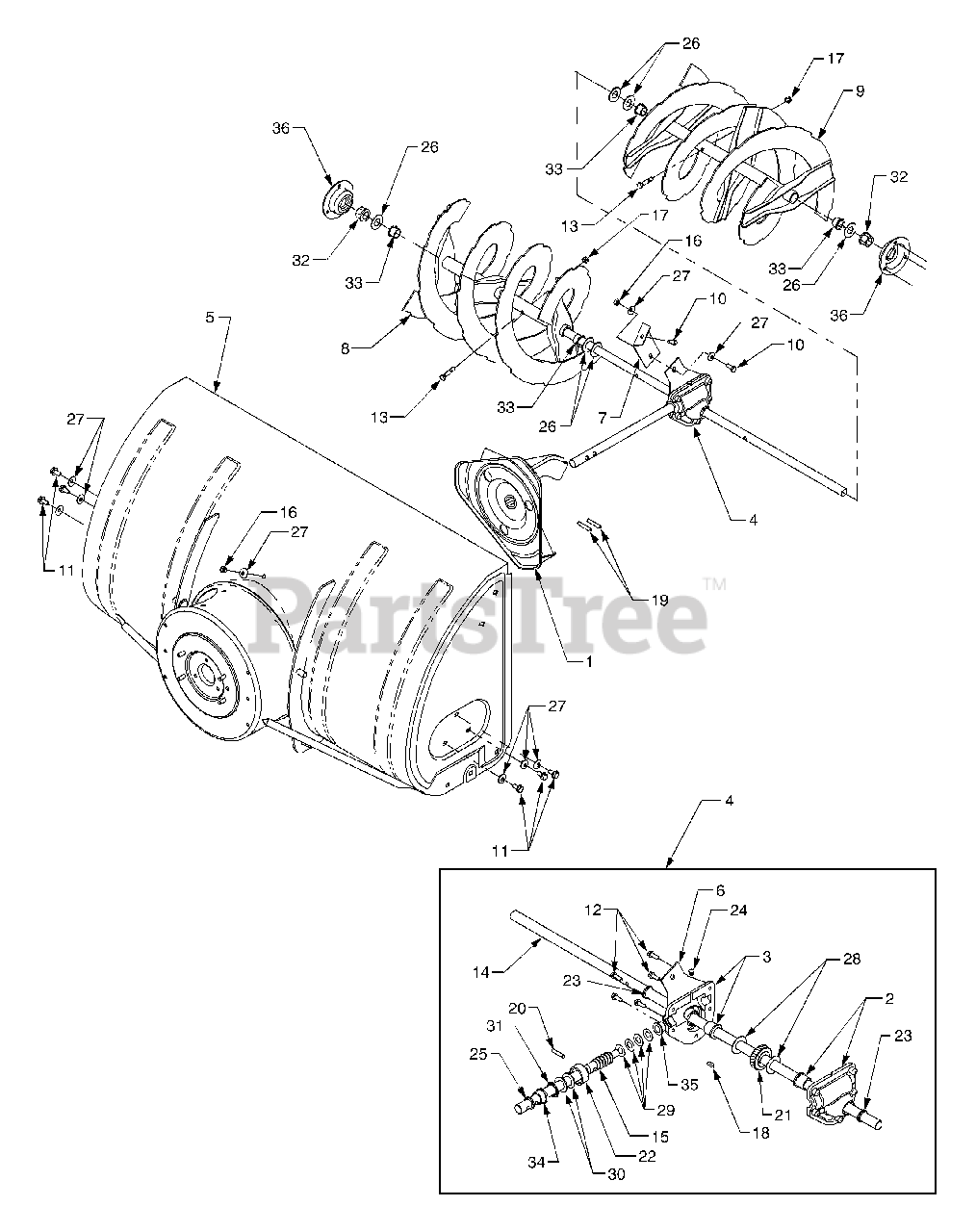

340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment att Augers And Auger Housing Parts Diagram

40" Snow Thrower Attachment

Augers And Auger Housing Parts Diagram

  • Title

1

Cub Cadet 603-0687-0716

Impeller Assembly
(Superseded to 603-0687-0637)

$160.99

$

In Stock, only 1 left!

0

1

Cub Cadet 603-0687-0498

Impeller Assembly
(Superseded to 603-0687-0637)

Note: (Mfg Date Prior To 1G239)

$160.99

$

In Stock, only 1 left!

0

2

Cub Cadet 618-0123

Housing Assembly, Auger RH
(Superseded to 918-0123A)

Note: Includes Ref. No. 23 and Flange Bearing

$55.99

$

In Stock, Qty 7

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0124

Housing Assembly, Auger LH
(Superseded to 918-0124A)

Note: Includes Ref. No. 23 and Flange Bearing

$55.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz Tube

$70.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-3196

Auger Gear Box Ass'y., Complete

$685.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-0147-0716

Housing, Auger

$

$

Not available

5

Cub Cadet 684-0147-0498

Housing, Auger

Note: (Mfg Date Prior To 1G239)

$

$

Not available

Cub Cadet 777D00140

Graphic, Cub Sprigs

$

$

Not available

Cub Cadet 777D03479

Graphic, Cub Cadet
(Superseded to 777D09506)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30007

Graphic, Warning/Danger

$

$

Not available

6

Cub Cadet 703-2733-0716

Plate, Housing Brace
(Superseded to 703-2733A-0716)

$20.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2733-0498

Plate, Housing Brace

Note: (Mfg Date Prior To 1G239)

$

$

Not available

7

Cub Cadet 703-2734-0716

Bracket, Housing Brace
(Superseded to 703-2734-0637)

$11.99

$

In Stock, only 2 left!

0

7

Cub Cadet 703-2734-0498

Bracket, Housing Brace

Note: (Mfg Date Prior To 1G239)

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 705-5269-0716

Auger, Serrated, LH
(Superseded to 753-05285-0637)

$

$

Not available

8

Cub Cadet 705-5269-0498

Auger, Serrated, LH
(Superseded to 753-05285-0637)

Note: (Mfg Date Prior To 1G239)

$

$

Not available

9

Cub Cadet 705-5270-0716

Auger, Serrated, RH
(Superseded to 753-05286-0637)

$

$

Not available

9

Cub Cadet 705-5270-0498

Auger, Serrated, RH
(Superseded to 753-05286-0637)

Note: (Mfg Date Prior To 1G239)

$

$

Not available

10

Cub Cadet 710-0157

Screw, Hex Cap 5/16-24 x .75 GR5

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

12

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0890A

Shear Bolt, 5/16-18

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet 711-1033

Shaft, Auger
(Superseded to 911-1033)

$

$

Not available

15

Cub Cadet 711-1365

Shaft, Worm Gear

$133.99

$

In Stock, only 3 left!

0

16

Cub Cadet 712-0123

Nut, Hex, 5/16-24 GR2
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

17

Cub Cadet 712-0429

Nut, Hex, Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0161

Key, Hi-Pro, 3/16 x 5/8
(Superseded to 914-0161)

$4.99

$

In Stock, Qty 18

0

19

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 x 1-1/2

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 715-0143

Pin, Spiral Spring, 1/4 x 1.25

$4.99

$

In Stock, Qty 8

0

21

Cub Cadet 717-0528

Gear, Worm, 20T
(Superseded to 917-04861)

$45.99

$

In Stock, Qty 20+

0

22

Cub Cadet 718-0513

Collar, Thrust

$13.99

$

In Stock, only 2 left!

0

23

Cub Cadet 721-0179

Seal, Oil

$9.49

$

In Stock, Qty 14

0

24

Cub Cadet 721-0325

Plug

$4.99

$

In Stock, only 3 left!

0

25

Cub Cadet 721-0327

Seal, Oil

$6.99

$

In Stock, Qty 18

0

26

Cub Cadet 736-0188

Washer, Flat, .76 x 1.49 x .06

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .06

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0351

Washer, Flat, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0369

Washer, Flat, .508 x 1.0 x .020

$4.99

$

In Stock, Qty 19

0

30

Cub Cadet 736-0617

Washer, Thrust, .75 x 1.25 x .062

$12.99

$

In Stock, Qty 8

0

31

Cub Cadet 741-0150

Bearing, Thrust,
(Superseded to IH-324105-R92)

$12.99

$

In Stock, Qty 6

0

32

Cub Cadet 741-0245

Bearing, Hex Flange
(Superseded to 941-0245)

$10.99

$

In Stock, Qty 20+

0

33

Cub Cadet 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 741-0700

Bearing, Flange

$12.99

$

In Stock, only 4 left!

0

35

Cub Cadet 748-0108

Bearing, Flange
(Superseded to 948-0108)

$9.49

$

In Stock, Qty 17

0

36

Cub Cadet 784-5618

Housing, Bearing
(Superseded to 784-5618A-0637)

Variations

Cub Cadet 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

Cub Cadet 737-0168

Grease, Shell Alvania
(Superseded to 737-0168A)

Note: 2 oz.

$32.99

$

In Stock, Qty 9

0
