340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment att Discharge Chute, Shave Plate And Skid Shoes Parts Diagram

40" Snow Thrower Attachment

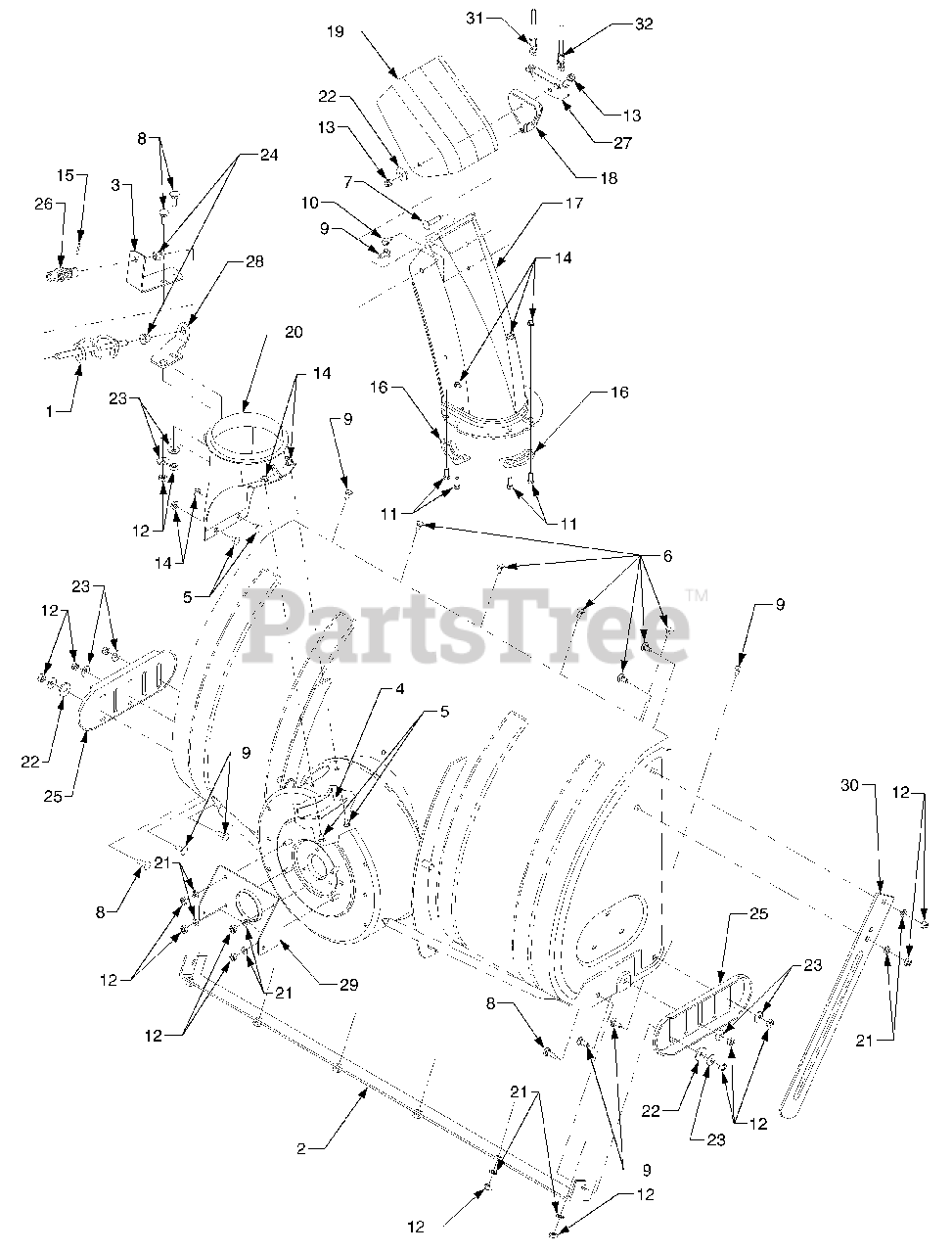

Discharge Chute, Shave Plate And Skid Shoes Parts Diagram

  • Title

1

Cub Cadet 684-0061

Chute Crank
(Superseded to 684-0061A)

$38.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2715-0716

Plate, Shave
(Superseded to 703-2715-0637)

$

$

Not available

2

Cub Cadet 703-2715-0498

Plate, Shave
(Superseded to 703-2715-0716)

Note: (Mfg Date prior to 1G239)

$

$

Not available

3

Cub Cadet 703-2735A-0716

Bracket, Chute Crank

$16.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2735A-0498

Bracket, Chute Crank
(Superseded to 703-2735A-0637)

Note: (Mfg Date prior to 1G239)

$18.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 705-5226-0716

Plate, Chute Reinforcement

$

$

Currently unavailable

4

Cub Cadet 705-5226-0498

Plate, Chute Reinforcement
(Superseded to 705-5226-0637)

Note: (Mfg Date prior to 1G239)

$9.99

$

In Stock, Qty 7

0

5

Cub Cadet 710-0167

Bolt, Carriage, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0260A

Bolt, Carriage, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0262

Bolt, Carriage, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 14

0

8

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0896

Screw, Hex Wash. Hd. Tapp 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

Nut, Hex, 5/16-18 GR2 22
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 715-0129

Pin, Spirol, 1/8 x .812

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 731-0851A

Keeper, Chute Flange

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-1300A

Chute, Lower Discharge
(Superseded to 731-1300E)

$54.99

$

In Stock, Qty 9

0

18

Cub Cadet 731-1313C

Guide, Cable

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-1320

Chute, Upper Discharge
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30004

Graphic, Danger Shut Off Eng.

$

$

Not available

20

Cub Cadet 731-1379

Adapter, Discharge Chute
(Superseded to 731-1379D)

$61.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0231

Washer, Flat, .344 x 1.125 x .12

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0242

Washer, Bell, .34 x .872 x .06

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 784-5038B-0716

Shoe, Skid

$

$

Currently unavailable

25

Cub Cadet 784-5038B-0498

Shoe, Skid

Note: (Mfg Date prior to 1G239)

$

$

Currently unavailable

26

Cub Cadet 784-5149

Block Assembly, Joint
(Superseded to 684-04350)

$26.99

$

In Stock, only 4 left!

0

27

Cub Cadet 784-5594-0716

Bracket, Cable
(Superseded to 784-5594-0637)

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet 784-5594-0498

Bracket, Cable
(Superseded to 784-5594-0637)

Note: (Mfg Date prior to 1G239)

$10.99

$

In Stock, only 1 left!

0

28

Cub Cadet 784-5647-0716

Bracket, Chute Crank

$

$

Currently unavailable

28

Cub Cadet 784-5647-0498

Bracket, Chute Crank

Note: (Mfg Date prior to 1G239)

$

$

Currently unavailable

29

Cub Cadet 784-5703-0716

Bracket, Box Mounting

$

$

Currently unavailable

29

Cub Cadet 784-5703-0498

Bracket, Box Mounting

Note: (Mfg Date prior to 1G239)

$

$

Currently unavailable

30

Cub Cadet 05139A-0716

Guide, Blade
(Superseded to 790-00181-0637)

$40.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 05139A-0498

Guide, Blade
(Superseded to 790-00181-0637)

Note: (Mfg Date prior to 1G239)

$40.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 746-0928

Cable, Chute Control

$70.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 746-0929

Cable, Chute Control w/Clip

$

$

Not available
