340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment att Lift Handle And Chute Controls Parts Diagram

40" Snow Thrower Attachment

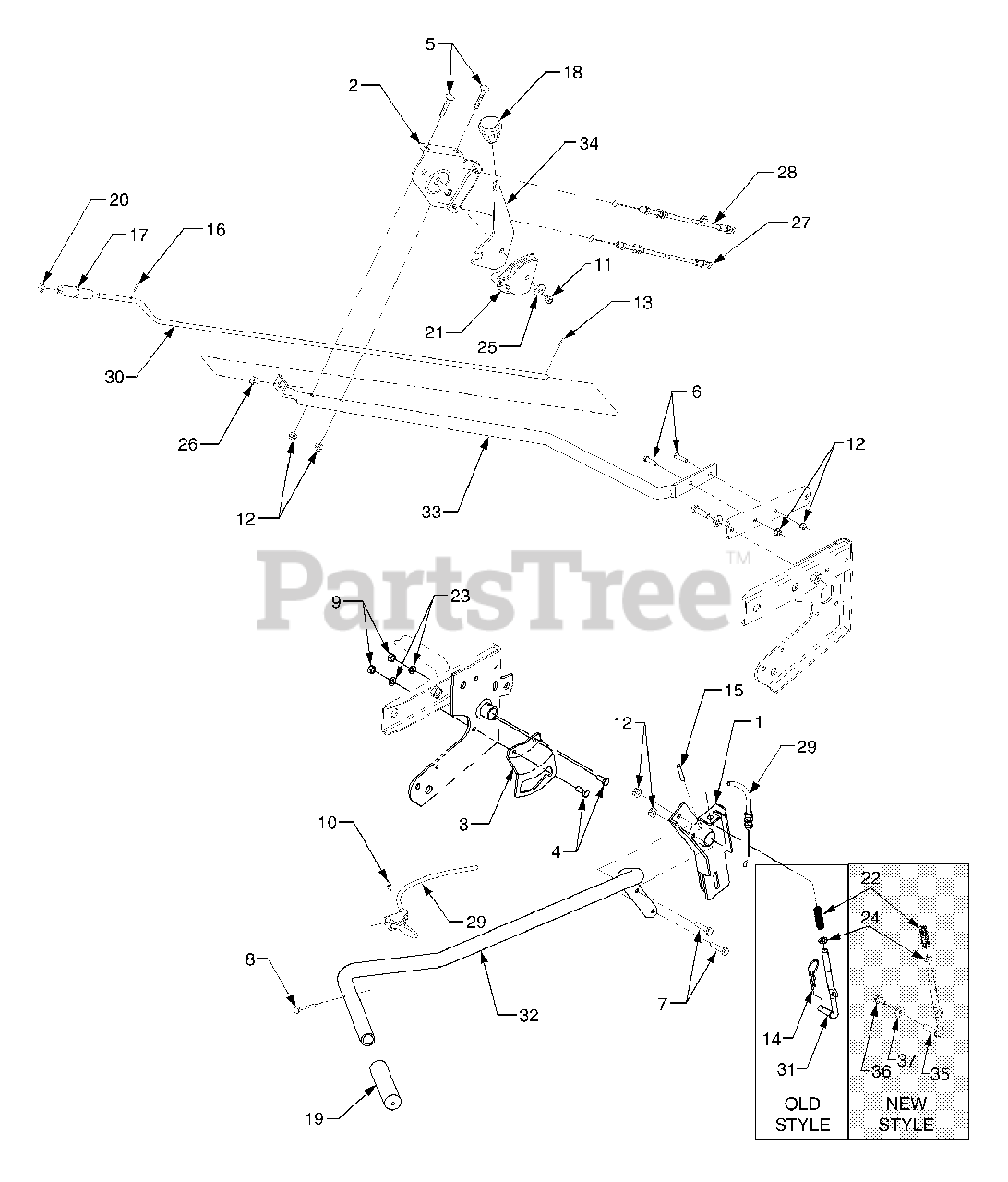

Lift Handle And Chute Controls Parts Diagram

  • Title

1

Cub Cadet 603-0300-0716

Bracket, Lift
(Superseded to 603-0300-0498)

$

$

Not available

1

Cub Cadet 603-0300-0498

Bracket, Lift

Note: (Mfg. Date prior to 1G239)

$

$

Not available

2

Cub Cadet 603-0302-0716

Bracket, Chute Tilt
(Superseded to 603-0302A-0637)

$64.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0302-0498

Bracket, Chute Tilt
(Superseded to 603-0302A-0637)

Note: (Mfg. Date prior to 1G239)

$64.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2728A-0716

Bracket, Lift Handle Latch
(Superseded to 703-2728A-0637)

$

$

Not available

3

Cub Cadet 703-2728A-0498

Bracket, Lift Handle Latch
(Superseded to 703-2728A-0637)

Note: (Mfg. Date prior to 1G239)

$

$

Not available

4

Cub Cadet 710-0157

Screw, Hex Cap 5/16-24 x .75 GR5

$3.99

$

In Stock, Qty 16

0

5

Cub Cadet 710-0262

Bolt, Carriage 5/16-18 x 1.5 GR2

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-0528

Screw, Hex Cap 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0805

Screw, Hex Cap 5/16-18 x 1.5 GR5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

8

Cub Cadet 710-1233

Screw, Oval Hd. Cntsk. Mach. 10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

9

Cub Cadet 712-0123

Nut, Hex, 5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

10

Cub Cadet 712-0127

Nut, Flat Weld, 10-24

$3.49

$

In Stock, Qty 13

0

11

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 714-3020

Pin, Internal Cotter

$3.99

$

In Stock, Qty 9

0

15

Cub Cadet 715-0114

Pin, Spirol, 1/4 x 1-1/2

$8.49

$

In Stock, Qty 9

0

16

Cub Cadet 715-0138

Pin, Roll, 1/8 x .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 720-0201A

Knob, Chute Crank

$10.99

$

In Stock, Qty 6

0

18

Cub Cadet 720-0232

Knob, Tilt Handle
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

19

Cub Cadet 720-0274

Grip, Lift Handle

$10.99

$

In Stock, Qty 6

0

20

Cub Cadet 726-0100

Cap, Push

$3.99

$

In Stock, Qty 7

0

21

Cub Cadet 731-1313B

Guide, Cable
(Superseded to 731-1313C)

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0306

Spring, Compression
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

23

Cub Cadet 737-0119

Washer, Lock, 5/16

$

$

Currently unavailable

24

Cub Cadet 736-0140

Washer, Flat, .385 x .620 x .063

$6.99

$

In Stock, Qty 8

0

25

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .06

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 746-0928

Cable, Chute Control

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

28

Cub Cadet 746-0929

Cable, Chute Control w/Clip

$

$

Not available

29

Cub Cadet 746-3060

Cable/Trigger Assembly, Lift Latch
(Superseded to 946-3060B)

$

$

Not available

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

30

Cub Cadet 747-3247

Rod, Chute Crank

$

$

Not available

31

Cub Cadet 747-3364

Rod, Lift Latch

$

$

Not available

32

Cub Cadet 749-3049-0716

Handle, Lift

$

$

Not available

32

Cub Cadet 749-3049-0498

Handle, Lift

Note: (Mfg. Date prior to 1G239)

$

$

Not available

33

Cub Cadet 749-3052-0716

Tube, Chute Crank Support

$

$

Not available

33

Cub Cadet 749-3052-0498

Tube, Chute Crank Support
(Superseded to 749-3052-0716)

Note: (Mfg. Date prior to 1G239)

$

$

Not available

34

Cub Cadet 784-5604-0637

Handle, Chute Tilt
(Superseded to 784-5604A-0637)

$23.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-3248A

Rod, Lift Latch
(Superseded to 947-3248A)

$

$

Not available

36

Cub Cadet 710-1268

Screw, Hex Wash, Hd Tapp #10-16 x .375

$3.99

$

In Stock, only 2 left!

0

37

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$4.99

$

In Stock, Qty 16

0
