340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment Gear Box Assembly Parts Diagram

40" Snow Thrower Attachment

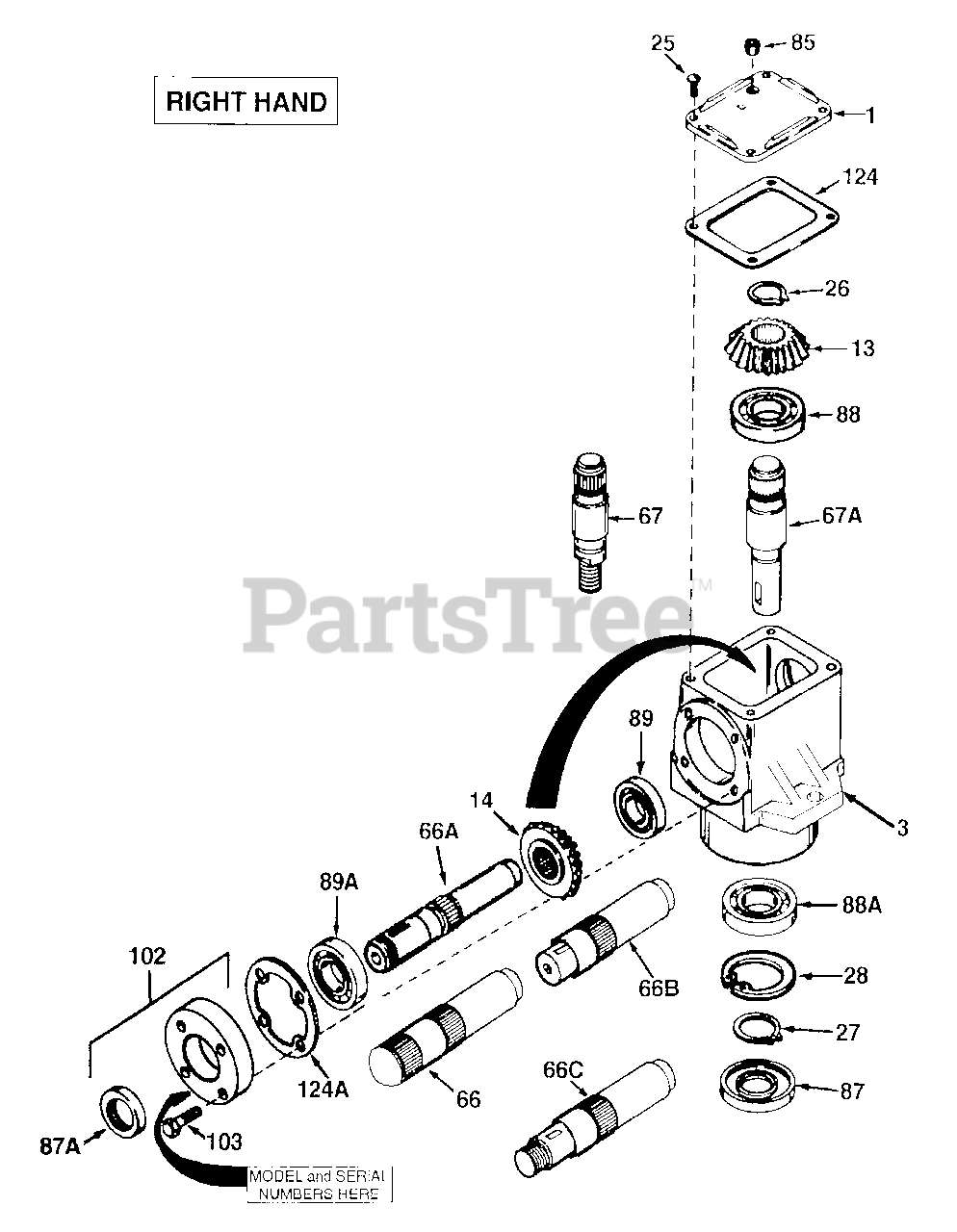

Gear Box Assembly Parts Diagram

  • Title

Cub Cadet 717-0250

Box, Gear
(Superseded to 917-0250)

$

$

Not available

1

Cub Cadet TC-772067

Right Hand Cover

$29.99

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-770026A

Right Angle Drive Housing

$131.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-778101A

Miter Gear (17 teeth-steel)

$44.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-778101A

Miter Gear (17 teeth)(7/8" long)

$44.99

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-792025

Screw, 10-24 x 1/2"

$4.49

$

In Stock, Qty 8

0

26

Cub Cadet TC-788018

Retaining Ring

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet TC-788019

Retaining Ring

$4.49

$

In Stock, Qty 11

0

28

UNKNOWN

$

$

Not available

66

UNKNOWN

$

$

Not available

66A

UNKNOWN

$

$

Not available

66B

UNKNOWN

$

$

Not available

66C

Cub Cadet TC-776149

Input Shaft (5.570" long)

$58.99

$

In Stock, only 1 left!

0

67

UNKNOWN

$

$

Not available

67A

Cub Cadet TC-776129

Output Shaft (4.259" long)

$64.99

$

Usually ships in 3-12 days

0

85

Cub Cadet TC-792039

Pipe Plug, 1/8-27 Headless

$4.49

$

Usually ships in 3-12 days

0

87A

Cub Cadet TC-788031

Oil Seal 7/8"

$10.99

$

In Stock, Qty 6

0

87

Cub Cadet TC-788029

Oil Seal 7/8"
(Superseded to TC-788029A)

$11.99

$

In Stock, only 3 left!

0

88

Cub Cadet TC-780034

Ball Bearing

$48.99

$

In Stock, Qty 6

0

88A

Cub Cadet TC-780034

Ball Bearing

$48.99

$

In Stock, Qty 6

0

89

Cub Cadet TC-780024

Ball Bearing

$48.99

$

In Stock, only 2 left!

0

89A

UNKNOWN

$

$

Not available

102

Cub Cadet TC-786029

Retainer Cap

$39.99

$

In Stock, Qty 5

0

103

Cub Cadet TC-792026

Bolt, 1/4-20 x 7/8"

$4.49

$

Usually ships in 3-12 days

0

124

Cub Cadet TC-788028

Cover Gasket

$5.99

$

In Stock, Qty 20+

0

124A

Cub Cadet TC-788030B

Cap Gasket

$5.99

$

In Stock, Qty 13

0
