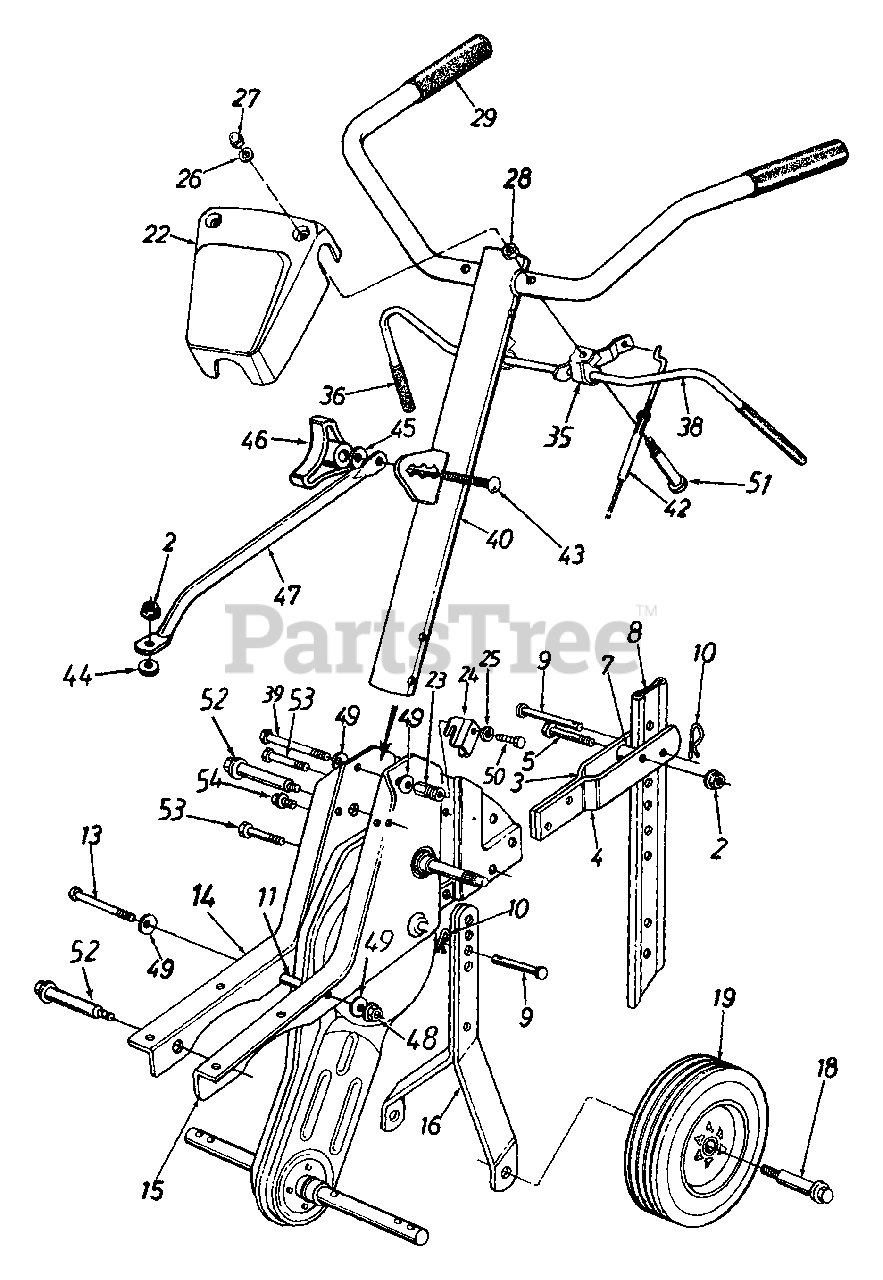

340 (216-340-100) - Cub Cadet Front-Tine Tiller (1996) Handle Assembly Parts Diagram

Front-Tine Tiller

Handle Assembly Parts Diagram

  • Title

?1

Cub Cadet 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-3004A

Hex Flange L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 786-0004

Tail Piece Brkt. (R.H.)
(Superseded to 786-0004-0637)

Variations

786-0004-0637

Cub Cadet 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 786-0003

Tail Piece Brkt. (L.H.)
(Superseded to 786-0003-0637)

Variations

786-0003-0637

Cub Cadet 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 2 left!

0

$24.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 750-0890

Spacer .32" I.D. x .75" O.D.

$7.49

$

In Stock, only 3 left!

0

8

Cub Cadet 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

786-0005-0637

Cub Cadet 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$42.99

$

In Stock, Qty 6

0

$42.99

$

In Stock, Qty 6

0

9

Cub Cadet 711-0415

Clevis Pin .375" I.D. x 1.62" Lg.

$4.99

$

In Stock, Qty 8

0

10

Cub Cadet 714-0149B

Internal Cotter Pin

$4.99

$

In Stock, Qty 5

0

11

Cub Cadet 750-0470

Spacer .326" I.D. x .47" O.D.

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet 786-0138

Frame - R.H.

Variations

786-0138-0498

Cub Cadet 786-0138-0498

USE 786-0138A-0637 FRAME-RH - OLD CUB YELLOW (0498)

$108.99

$

Usually ships in 3-6 days

0

786-0138-0637

Cub Cadet 786-0138-0637

USE 786-0138A-0637 FRAME-RH - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

786-0138-0638

Cub Cadet 786-0138-0638

USE 786-0138A-0638 FRAME-RH - MTD/TROY-BILT RED (0638)

$108.99

$

Usually ships in 3-6 days

0

786-0138-0687

Cub Cadet 786-0138-0687

USE 786-0138A-0637 FRAME-RH - PINE GREEN (0687)

$108.99

$

Usually ships in 3-6 days

0

786-0138-0716

Cub Cadet 786-0138-0716

USE 786-0138A-0637 FRAME-RH - CUB YELLOW-99 (0716)

$108.99

$

Usually ships in 3-6 days

0

786-0138-0480

Cub Cadet 786-0138-0480

FRAME (RH) - BRILLIANT GREEN (0480)

$

$

Not available

786-0138-0662

Cub Cadet 786-0138-0662

FRAME-RH - OYSTER GRAY (0662)

$

$

Not available

786-0138-0665

Cub Cadet 786-0138-0665

FRAME-RH - YARDMAN GREEN (0665)

$

$

Not available

$82.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 786-0139

Frame - L.H.
(Superseded to 786-0139A)

Variations

786-0139-0480

Cub Cadet 786-0139-0480

Frame, LH - BRILLIANT GREEN (0480)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0498

Cub Cadet 786-0139-0498

Frame, LH - OLD CUB YELLOW (0498)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0637

Cub Cadet 786-0139-0637

Frame, LH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0638

Cub Cadet 786-0139-0638

USE 786-0139A-0638 FRAME-LH - MTD/TROY-BILT RED (0638)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0662

Cub Cadet 786-0139-0662

Frame, LH - OYSTER GRAY (0662)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0665

Cub Cadet 786-0139-0665

Frame, LH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0687

Cub Cadet 786-0139-0687

Frame, LH - PINE GREEN (0687)

$107.99

$

Usually ships in 3-6 days

0

786-0139-0716

Cub Cadet 786-0139-0716

Frame, LH - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 686-0081

Wheel Hanger Brkt. Ass'y.
(Superseded to 686-0081A-0637)

Variations

686-0081-0637

Cub Cadet 686-0081-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$94.99

$

In Stock, only 2 left!

0

$94.99

$

In Stock, only 2 left!

0

18

Cub Cadet 738-0929

Shld. Bolt .498" Dia. x 1.45" Lg.

$8.49

$

In Stock, only 2 left!

0

19

Cub Cadet 734-1566

Wheel Ass'y.
(Superseded to 734-1268)

$75.99

$

In Stock, only 2 left!

0

22

Cub Cadet 731-1599

Handle Cover

$

$

Not available

23

Cub Cadet 711-1036

Spec. Hex Nut
(Superseded to 711-1036A)

$18.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-0129

Cable Guide Brkt.
(Superseded to 786-0129-0637)

Variations

786-0129-0637

Cub Cadet 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-3020

FI-Wash..266" I.D. x.625" O.D.

$7.49

$

In Stock, Qty 9

0

27

Cub Cadet 712-0442

Hex L-Stop Nut 1/4-20 Thd.

$7.49

$

In Stock, only 3 left!

0

28

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 720-0268

Grip - Handle

$

$

Not available

?31

Cub Cadet 736-0140

FI-Wash..385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 12

0

35

Cub Cadet 731-1645

Clutch Handle Holder
(Superseded to 931-1645B)

$17.99

$

In Stock, Qty 8

0

36

Cub Cadet 720-0269

Grip - Clutch

$5.49

$

In Stock, only 1 left!

0

38

Cub Cadet 686-0083

Clutch Handle Ass'y.
(Superseded to 686-0083-0637)

Variations

686-0083-0637

Cub Cadet 686-0083-0637

Clutch Handle Assembly - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0189

Hex Bolt 5/16-18 x 3" I g.

$6.49

$

In Stock, Qty 5

0

40

Cub Cadet 649-0022

Longhorn Handle Ass'y.
(Superseded to 649-0022A)

Variations

649-0022-0480

Cub Cadet 649-0022-0480

USE 649-0022A-0480 HANDLE ASS - BRILLIANT GREEN (0480)

$

$

Not available

649-0022-0483

Cub Cadet 649-0022-0483

HANDLE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

649-0022-0498

Cub Cadet 649-0022-0498

USE 649-0022A-0498 HANDLE ASS - OLD CUB YELLOW (0498)

$

$

Not available

649-0022-0637

Cub Cadet 649-0022-0637

HANDLE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

649-0022-0638

Cub Cadet 649-0022-0638

HANDLE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

649-0022-0662

Cub Cadet 649-0022-0662

USE 649-0022A-0662 HANDLE ASS - OYSTER GRAY (0662)

$

$

Not available

$

$

42

Cub Cadet 746-0918

Clutch Control Cable
(Superseded to 946-0918)

$32.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-1236

Carr. Bolt 5/16-18 x 1" Lg. (Special)

$7.49

$

In Stock, only 3 left!

0

44

UNKNOWN

$

$

Not available

45

UNKNOWN

$

$

Not available

46

Cub Cadet 720-0195

Hand Knob

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 749-0915

Engine Tubing Brace

Variations

749-0915-0637

Cub Cadet 749-0915-0637

ENGINE TUBING BRACE - POWDER BLACK (0637)

$

$

Not available

749-0915-0638

Cub Cadet 749-0915-0638

ENGINE TUBING BRACE - MTD/TROY-BILT RED (0638)

$

$

Not available

749-0915-0662

Cub Cadet 749-0915-0662

ENGINE TUBING BRACE - OYSTER GRAY (0662)

$

$

Not available

$

$

48

Cub Cadet 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0242

Bell-Wash. 345" I.D. x.88" O.D.

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0641

Hex Bolt 1/4-20 x 2.25" Lg.

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 738-0934

Shld. Bolt
(Superseded to 738-0934A)

$8.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0604

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 8

0

54

Cub Cadet 710-0602

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x 1" Lg.

$4.99

$

In Stock, Qty 20+

0
