340 (21A-340-100) - Cub Cadet Front-Tine Tiller Engine (1997) Cylinder Assembly & Spark Plug Parts Diagram

Front-Tine Tiller Engine

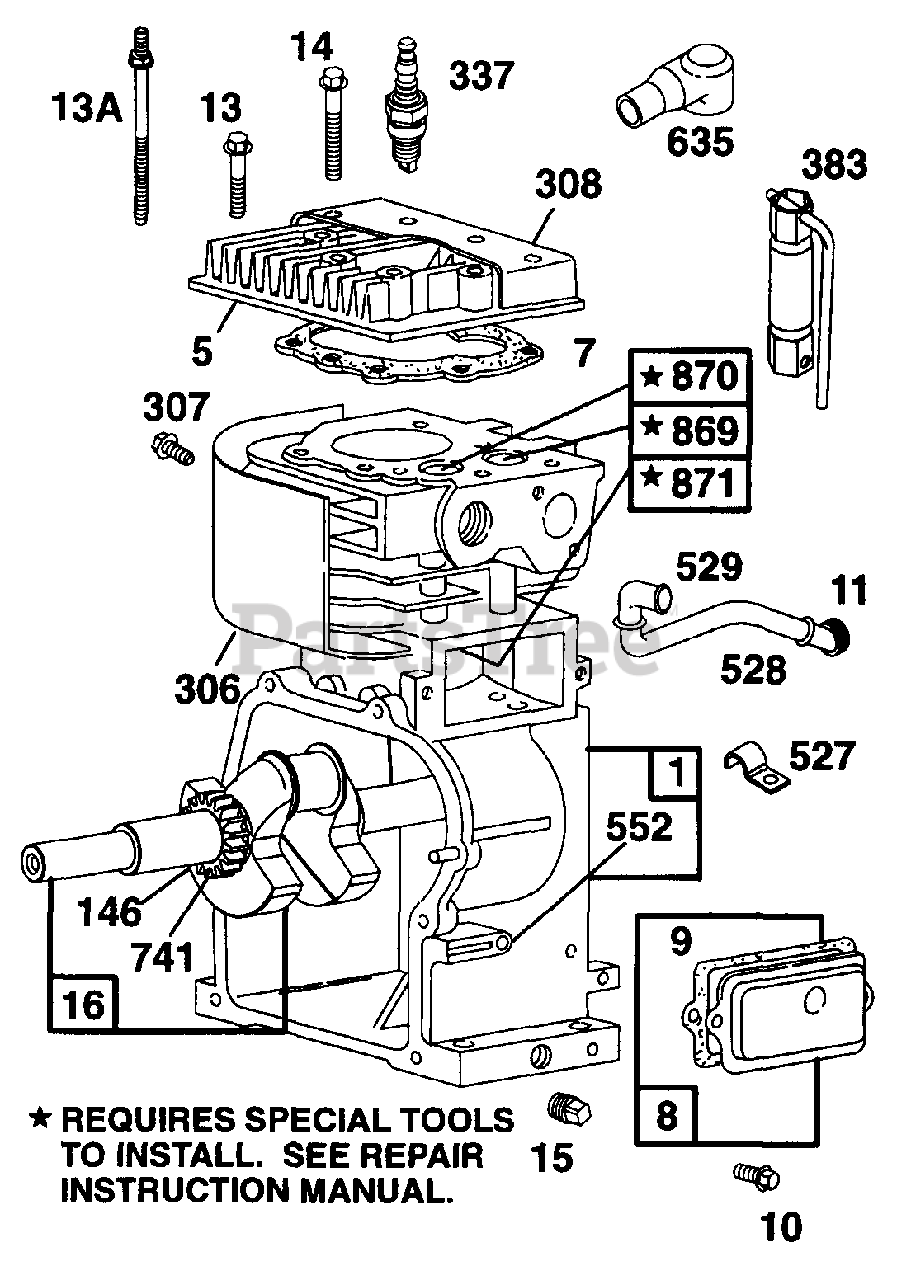

Cylinder Assembly & Spark Plug Parts Diagram

  • Title

Cub Cadet BS-491150

Short Block Assembly

$221.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-497144

Cylinder Assy

$537.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-214040

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272157

Gasket-Cylinder Head
(Superseded to BS-272157S)

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495774

Breather Assy
(Superseded to BS-791779)

$15.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

$

$

Not available

10

Cub Cadet BS-94621

Screw-Breather Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-66578

Grommet-Breather
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-94221

Screw-Cylinder Head
(Superseded to BS-691640)

Note: (2-1/8" Long)

$3.49

$

In Stock, only 2 left!

0

13A

Cub Cadet BS-94733

Stud-Hex Drive
(Superseded to BS-691690)

$3.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-94679

Screw-Cylinder Head

Note: (2-3/32" Long)

$

$

Not available

15

Cub Cadet BS-94916

Plug-Pipe
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-397103

Crankshaft

$131.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-94388

Key-Timing
(Superseded to BS-690979)

$3.49

$

In Stock, only 4 left!

0

306

Cub Cadet BS-224820

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-94680

Screw-Cylinder Shield
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 12

0

308

Cub Cadet BS-224738

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231550

Tube-Breather

$12.99

$

Usually ships in 2-12 days

0

529

Cub Cadet BS-67838

Grommet-Breather Tube
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

552

Cub Cadet BS-231079

Bushing-Governor Crank

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 20+

0

741

Cub Cadet BS-261696

Gear-Timing

$52.99

$

Usually ships in 2-12 days

0

869

Cub Cadet BS-211787

Seat-Interior Valve

$

$

Not available

870

Cub Cadet BS-211172

Seat-Exterior Valve

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

Note: P/N BS-63709 For Guide-Intake Valve

$13.99

$

Usually ships in 2-12 days

0
