340 e - Husqvarna Chainsaw (SN: 20062300001 & Above) CRANKCASE 2 Parts Diagram

Chainsaw

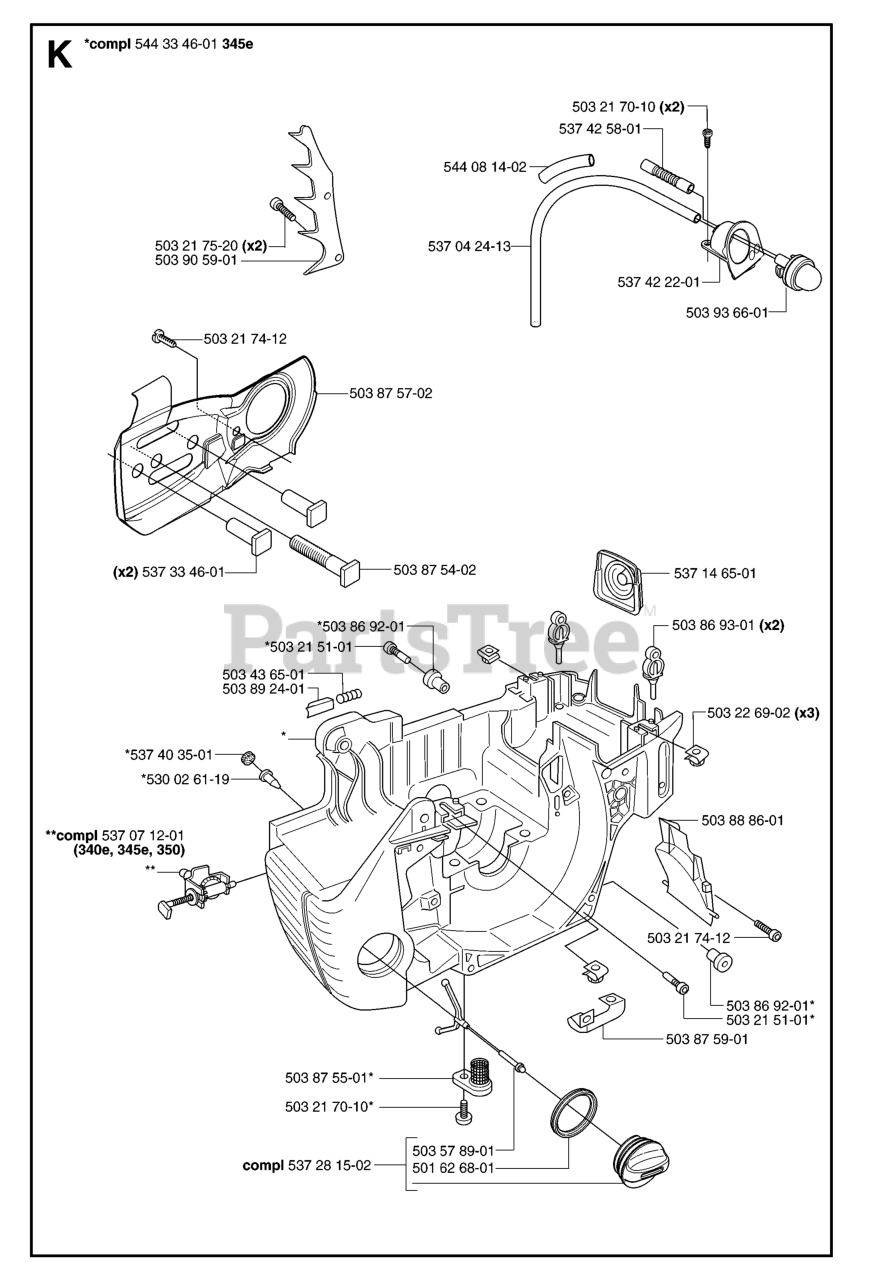

CRANKCASE 2 Parts Diagram

  • Title

503 88 86-01

Husqvarna 503888601

DEFLECTOR

$10.99

$

In Stock, only 1 left!

0

537 14 65-01

Husqvarna 537146501

BELLOWS

$24.99

$

In Stock, Qty 7

0

503 89 24-01

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 5

0

503 22 69-02

Husqvarna 503226902

CLIP

$6.99

$

In Stock, Qty 15

0

503 86 92-01

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, Qty 16

0

537 33 46-01

Husqvarna 537334601

BAR BOLT

$8.99

$

In Stock, Qty 5

0

544 08 14-02

Husqvarna 544081402

HOSE

$7.99

$

In Stock, Qty 10

0

501 62 68-01

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, Qty 9

0

503 87 57-02

Husqvarna 503875702

CHAIN GUIDE PLATE

$

$

Not available

503 21 70-10

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

503 90 59-01

Husqvarna 503905901

SPIKE

$14.99

$

In Stock, only 1 left!

0

537 04 24-13

Husqvarna 537042413

HOSE

$7.99

$

Usually ships in 3-10 days

0

503 21 74-12

Husqvarna 503217412

SCREW

$6.49

$

In Stock, Qty 10

0

503 87 55-01

Husqvarna 503875501

SCREEN

$

$

Not available

503 43 65-01

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, Qty 14

0

503 86 93-01

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

537 07 12-01

Husqvarna 537071201

CHAIN TENSIONER

$47.99

$

In Stock, Qty 5

0

537 40 35-01

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

In Stock, only 4 left!

0

544 33 46-01

Husqvarna 544334601

CRANKCASE ASSEMBLY

$93.46

$

Usually ships in 3-10 days

0

503 21 51-01

Husqvarna 503215101

SCREW

$7.49

$

In Stock, Qty 11

0

503 21 70-10

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 20+

0

537 42 58-01

Husqvarna 537425801

HOSE
(Superseded to 581756140)

$7.99

$

In Stock, Qty 9

0

503 21 75-20

Husqvarna 503217520

SCREW

$6.49

$

In Stock, Qty 12

0

537 42 22-01

Husqvarna 537422201

BRACKET

$

$

Not available

537 28 15-02

Husqvarna 537281502

OIL TANK CAP GREY

$13.99

$

In Stock, only 3 left!

0

503 87 59-01

Husqvarna 503875901

PLATE
(Superseded to 544196401)

$

$

Not available

530 02 61-19

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

503 87 54-02

Husqvarna 503875402

BAR BOLT

$8.99

$

In Stock, only 4 left!

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

503 93 66-01

Husqvarna 503936601

AIR PURGE BUBBLE

$18.99

$

In Stock, Qty 20+

0
