340 H - Husqvarna Hedge Trimmer (1995-01) Hedge Trimmer Parts Diagram

Hedge Trimmer

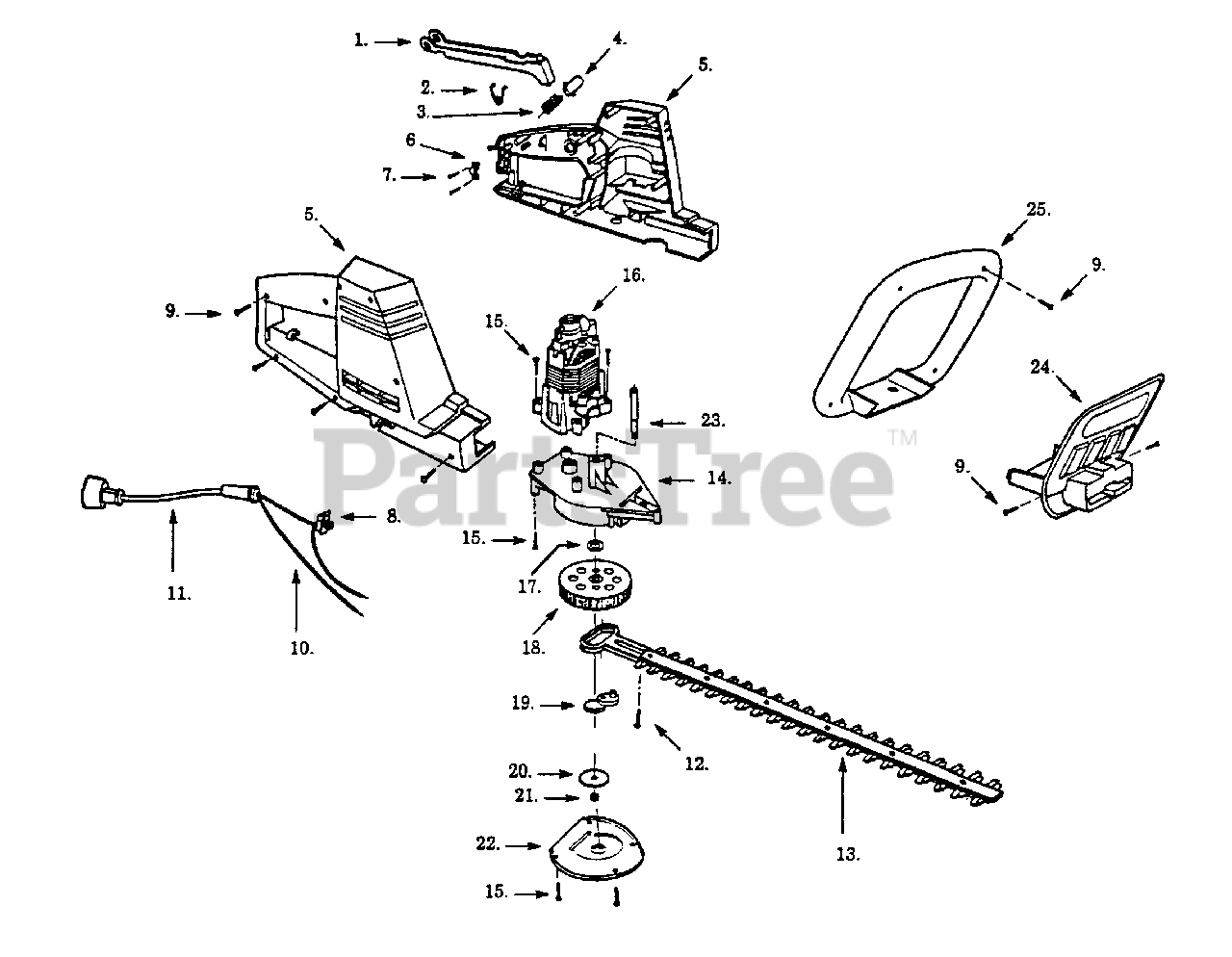

Hedge Trimmer Parts Diagram

  • Title

1

Husqvarna 530401927

TRIGGER SWITCH NLA

$

$

Not available

2

Husqvarna 530401222

SPRING CLIP

$

$

Not available

3

Husqvarna 530401054

SPRING - TRIGGER LOCK

$

$

Not available

4

Husqvarna 530401380

BUTTON - TRIGGER LOCK

$

$

Not available

5

Husqvarna 530400916

Housing Set (R&L)

$

$

Not available

6

Husqvarna 530025666

CORDSET CLAMP

$

$

Not available

7

Husqvarna 534826801

SCREW

$

$

Not available

8

Husqvarna 530401503

SWITCH (ON/OFF)

$

$

Not available

9

Husqvarna 530340179

SCREW

$1.49

$

Usually ships in 3-10 days

0

10

Husqvarna 530402069

HARNESS ASS'Y

Note: (Incl. 8 & 11)

$

$

Not available

11

Husqvarna 530402070

CORDSET

$

$

Not available

12

Husqvarna 530016086

SCREW

$

$

Not available

13

Husqvarna 530400879

Blade Ass'y.

$

$

Not available

14

Husqvarna 530400877

GEAR BOX ASSEMBLY

$

$

Not available

15

Husqvarna 530015875

SCREW

$3.49

$

In Stock, only 2 left!

0

16

Husqvarna 530400866

MOTOR ASSEMBLY

$

$

Not available

17

Husqvarna 530401228

WASHER

$

$

Not available

18

Husqvarna 530400859

GEAR

$

$

Not available

19

Husqvarna 530400980

DRIVE CAM

$

$

Not available

20

Husqvarna 530400876

WASHER

$

$

Not available

21

Husqvarna 530401229

LOCKNUT

$

$

Not available

22

Husqvarna 530400860

PLATE COVER

$

$

Not available

23

Husqvarna 530400872

SHAFT

$

$

Not available

24

Husqvarna 530400929

SHIELD

$

$

Not available

25

Husqvarna 530400958

HANDLE ASSEMBLY
(Superseded to 530053578)

Note: (Incl. 9)

$

$

Not available

Husqvarna 530083257

Operator Manual

Note: Not shown

$

$

Not available

Husqvarna 530085213

Carton

Note: Not shown

$

$

Not available

Husqvarna 530400981

Carton Contents Bag

Note: Not shown

$

$

Not available
