340 s - Shindaiwa Chainsaw (SN: C37313001001 - C37313999999) FUEL SYSTEM Parts Diagram

Chainsaw

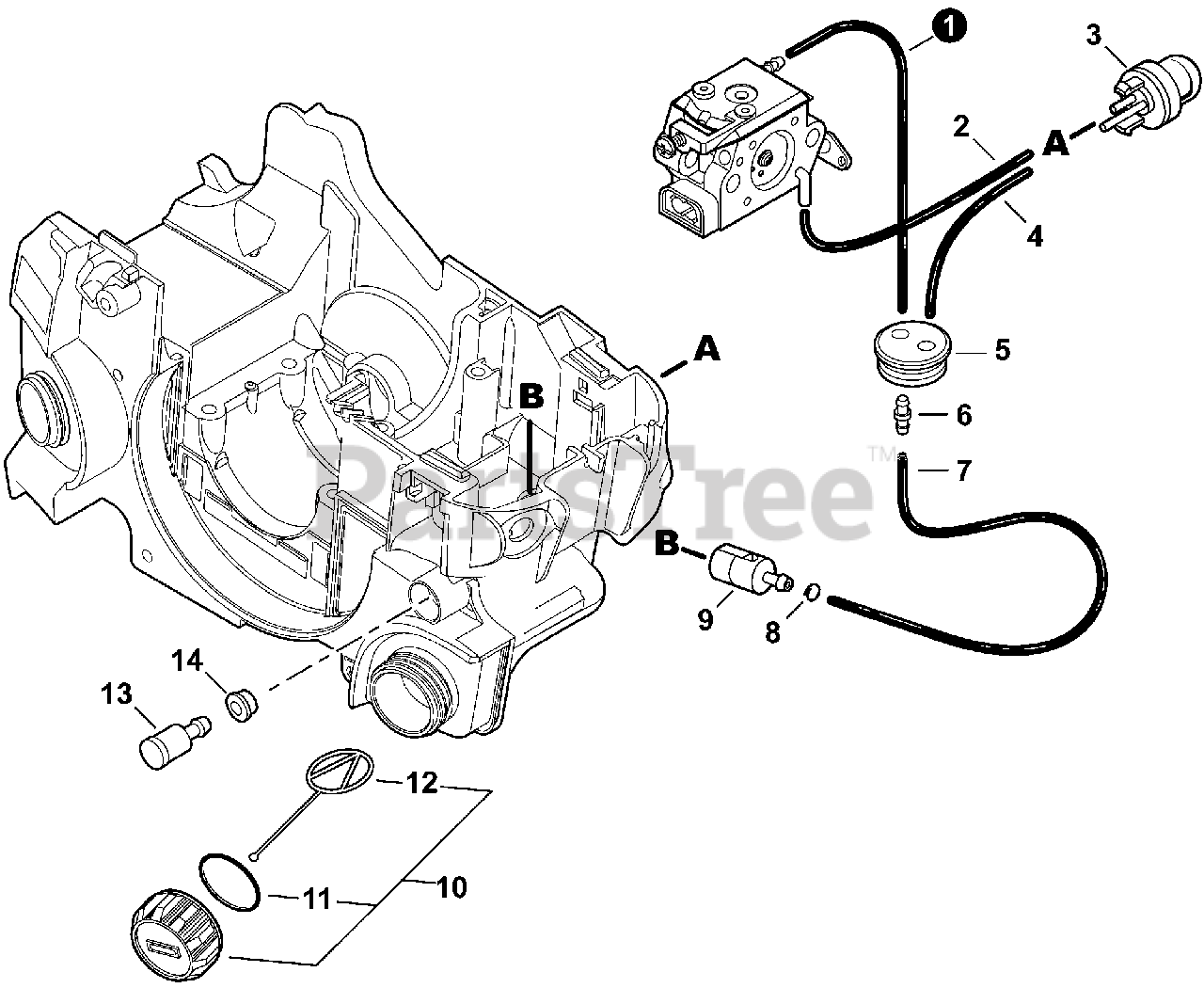

FUEL SYSTEM Parts Diagram

  • Title

1

Echo V471003871

PIPE, FUEL 3×5×85 BLACK
(Superseded to V471003872)

$2.49

$

In Stock, Qty 8

0

2

Echo V471001280

PIPE 2.4×5×150 BLACK
(Superseded to V471001281)

$3.99

$

In Stock, Qty 6

0

3

Echo 12318139130

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

4

Echo V471001560

PIPE, FUEL RETURN 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, Qty 12

0

5

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

6

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 9

0

7

Echo V471003880

PIPE, FUEL 3×5×144 BLACK
(Superseded to V471003881)

$1.49

$

In Stock, only 3 left!

0

8

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

$8.99

$

In Stock, Qty 20+

0

10

Echo P021004562

CAP ASSY, FUEL

Note: Includes ITEMS 11-12

$10.99

$

Usually ships in 2-4 days

0

11

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 7

0

12

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

13

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

14

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 3 left!

0
