34007 - Troy-Bilt 22" Mulching Walk-Behind Mower (SN: 340070100101 - 370070499999) MAIN ASSEMBLY Parts Diagram

22" Mulching Walk-Behind Mower

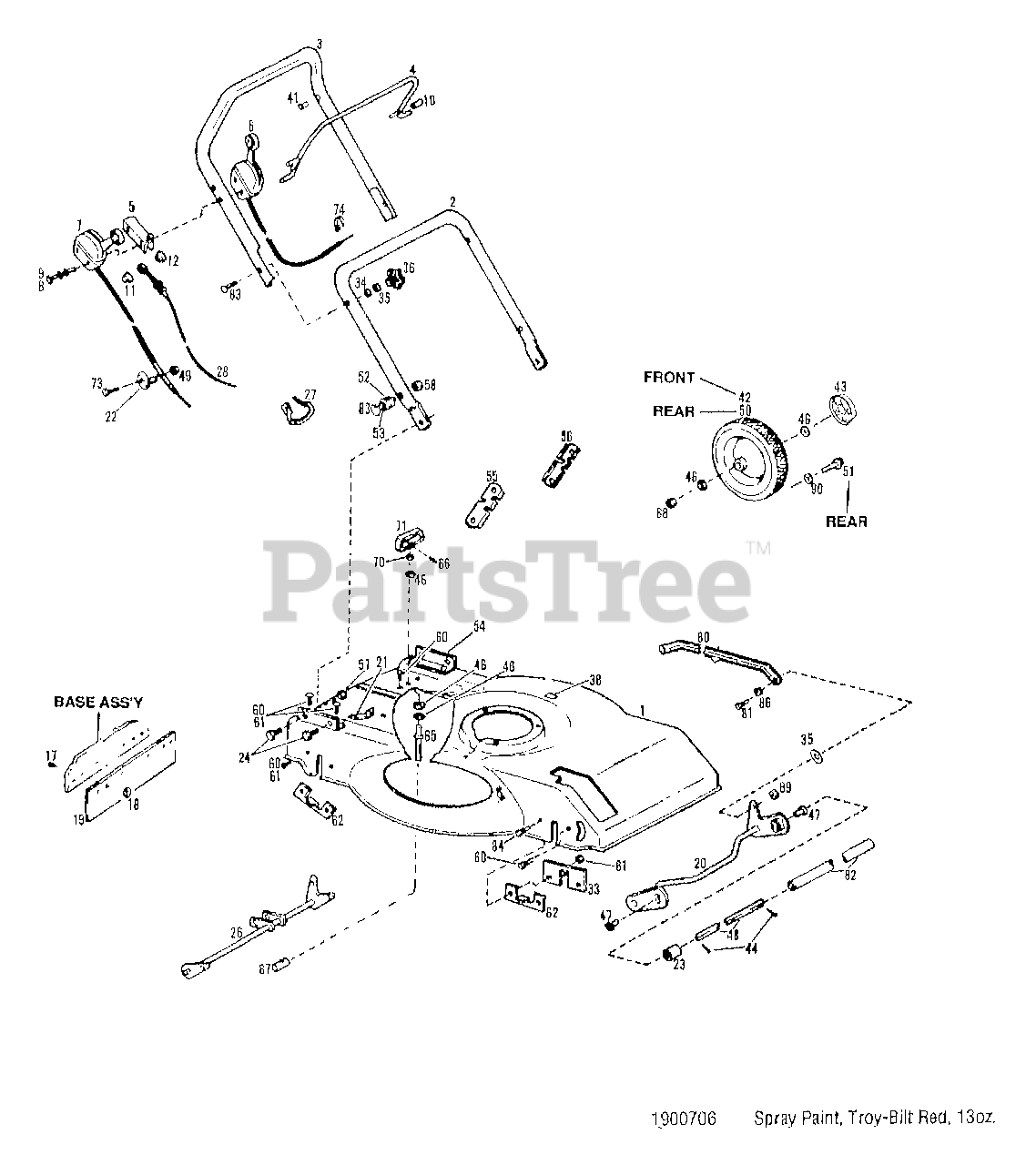

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1763880

ASSM-BASE W/DECAL 22"MLCH (INCL. 17-19 & 37 PG. 5, 64)

$

$

Currently unavailable

2

Troy-Bilt 1761103001

HANDLE-LOWER

$

$

Not available

3

MTD 1761100001

HANDLE-UPPER

$

$

Not available

4

MTD 1761104001

ASSM-BAIL ENGINE CONTROL

$

$

Not available

5

MTD 1766147001

SUPPORT-CONTROL

$

$

Not available

6

Troy-Bilt 1763676

THROTTLE CONTROL

$

$

Currently unavailable

6

MTD 1765734

CONTROL-THROTTLE

$

$

Not available

7

Troy-Bilt 1761098

CLUTCH-CONTROL
(Superseded to 1769342P)

$

$

Not available

8

MTD 1756148

SCR-HH SEMS

$

$

Not available

9

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

10

MTD 1751526

GRIP-HANDLE

$

$

Not available

11

Troy-Bilt 1727342

CAP-PUSH ON .312 DIA
(Superseded to 726-0135)

$6.49

$

In Stock, only 4 left!

0

12

MTD 1747236

RING-GRIP EXT .312 ID

$

$

Not available

17

MTD 1739918

RIVET-POP (BASE ASSEMBLY)

$

$

Not available

18

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

19

MTD 1755562

SHIELD-DEFLECTOR

$

$

Not available

20

Troy-Bilt 1764062

KIT-AXLE ASM FRNT (1763088)

$

$

Currently unavailable

20

MTD 1755530001

ASSM-FRONT AXLE

$

$

Not available

21

MTD 1763816001

BRKT

$

$

Not available

22

MTD 1759076

CLAMP-POWDEN WIRE

$

$

Not available

23

MTD 1764050

BUSHING-AXLE

$

$

Not available

24

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

26

MTD 1762885001

ASSM-AXLE REAR

$

$

Not available

27

Troy-Bilt 1763682

TIE-CABLE
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

28

Troy-Bilt 1763677

CABLE-ENGINE BRAKE

$

$

Not available

33

MTD 1761028

PLATE-DOUBLER

$

$

Not available

34

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

36

MTD 1763767

KNOB

$

$

Not available

38

MTD 1761554

DECAL-INDICATOR

$

$

Not available

41

MTD 1747499

BEARING-FLANGED

$

$

Not available

42

MTD 1762021

TIRE/WHEEL FRONT F/TB MULCH MW

$

$

Not available

43

Troy-Bilt 1762241

CAP-HUB T/B MULCHERS

$

$

Currently unavailable

44

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

46

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

47

MTD 1760842

BEARING-AXLE

$

$

Not available

48

MTD 1755524

AXLE-DRIVE

$

$

Not available

48

MTD 1764637

AXLE-DRIVE

$

$

Not available

49

Troy-Bilt 1186387

NUT-HFLK #10-24

$

$

Not available

50

MTD 1761981

ASSM-TIRE & WHEEL (REAR)

$

$

Not available

51

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$9.49

$

In Stock, only 2 left!

0

52

MTD 1755406

SPRING-COMPRESSION

$

$

Not available

53

MTD 1755407

SPACER

$

$

Not available

54

Troy-Bilt 1755402001

BRKT-HANDLEBAR

$

$

Not available

55

MTD 1755403001

SUPPORT-HANDLE RH

$

$

Not available

56

MTD 1755404001

SUPPORT-HANDLE LH

$

$

Not available

57

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 1744708

NUT-HFT/LK

$

$

Not available

60

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

62

MTD 1743277

BRACKET-AXLE

$

$

Not available

65

Troy-Bilt 1762881

SCR-ADJ

$

$

Currently unavailable

66

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

70

Troy-Bilt 1762886

SPACER-HANDLE

$

$

Not available

71

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

73

Troy-Bilt 1752461

SCR-HW M10-24X.88 EXTTOOTH

$4.49

$

In Stock, Qty 12

0

74

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

80

MTD 1761027001

LINK-HEIGHT ADJUST

$

$

Not available

81

MTD 1760971

SCR-SHOULDER

$

$

Not available

82

Troy-Bilt 1736069

TUBING-PLASTIC

$

$

Currently unavailable

83

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

84

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

86

MTD 1761046

BEARING-NYLINER

$

$

Not available

87

MTD 1762882

PIVOT-ADJUSTING SCR

$

$

Not available

88

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.49

$

In Stock, Qty 6

0

90

Troy-Bilt 1891733

WASHER-1.12X.378X.125
(Superseded to 936-0206)

$4.49

$

In Stock, only 2 left!

0

Troy-Bilt 1900706

PAINT-TROY-BILT RED, SPRAYCAN POWDER 13OZ.
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0
