34021 - Troy-Bilt 21" Mulching Walk-Behind Mower ENGINE, MOWER DECK AND BLADE ASSY. Parts Diagram

21" Mulching Walk-Behind Mower

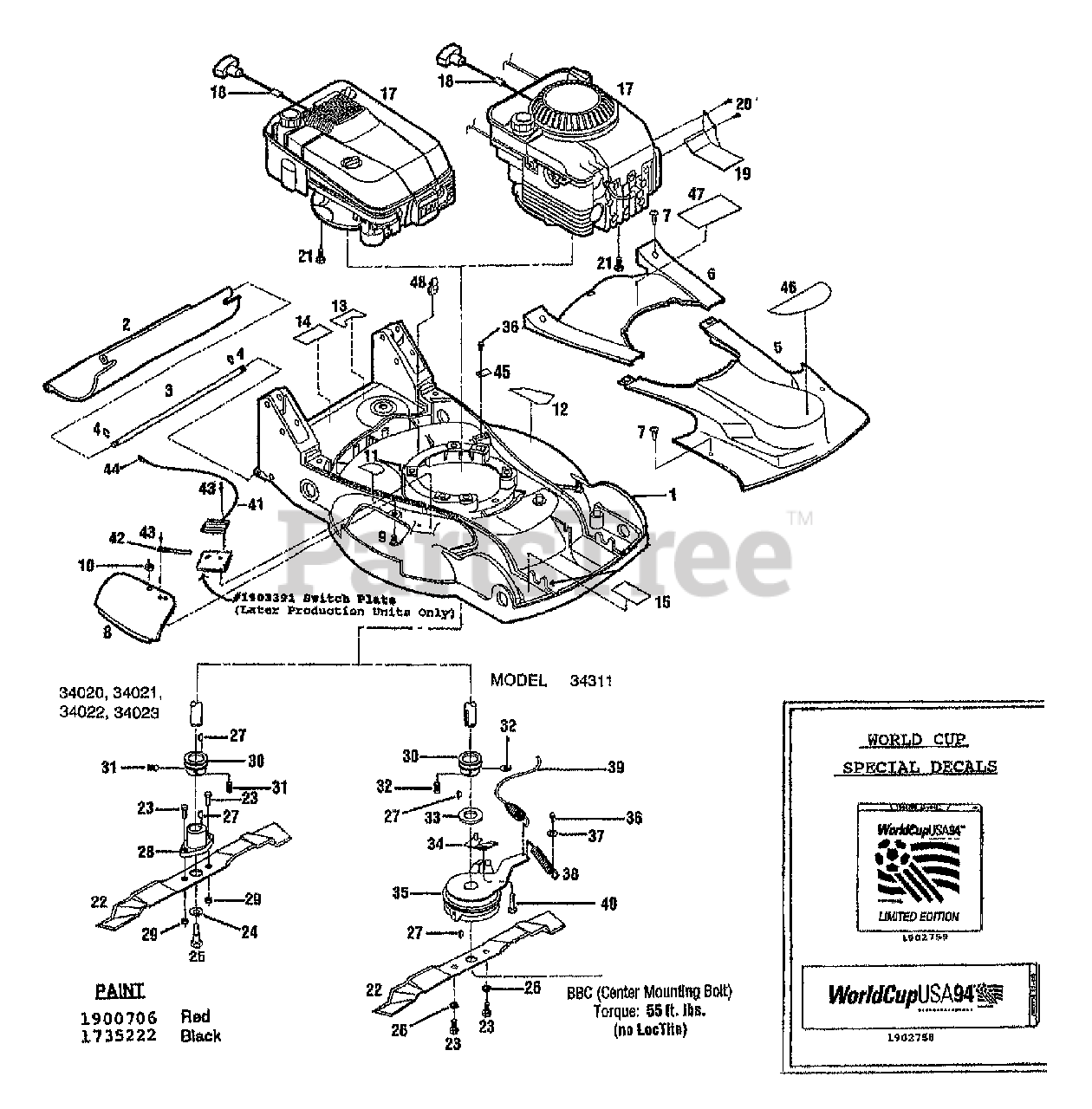

ENGINE, MOWER DECK AND BLADE ASSY. Parts Diagram

  • Title

1

Troy-Bilt 1901960

MOWER DECK (INCL. 2-4,9,11-12,14-15,41 & 43)

$

$

Currently unavailable

1

Troy-Bilt 1902811

MOWER DECK (INCL. 2-4,9,11-12,14-15,41 & 43)

$

$

Currently unavailable

2

MTD 1902656

FLAP-SAFETY WITH NOTCH

$

$

Not available

3

MTD 1765553

ROD-FLAP

$

$

Not available

4

Troy-Bilt 1185304

RING-RET. "E".312 ID

$

$

Not available

5

Troy-Bilt 1768954

COVER-FRONT W/DECAL T/B
(Superseded to 1904122)

$

$

Not available

6

MTD 1768952

COVER-REAR W/DECAL T/B

$

$

Not available

7

MTD 1766503

SCR-PH M12-24X.63 THFRM ZP

$

$

Not available

8

MTD 1902112

DOOR-DISCHARGE W/TAB

$

$

Not available

9

MTD 1903734

KIT-DECK STUD REPLACE

$

$

Not available

10

Troy-Bilt 1766514

NUT-HT/LK 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 1768434

DECAL-DANGER USE GUARD

$

$

Not available

12

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.99

$

Usually ships in 3-6 days

0

13

MTD 1765893

DECAL-CUTTING HEIGHT

$

$

Not available

14

Troy-Bilt 1768436

DECAL-WARNING THROWN OBJECT

$

$

Currently unavailable

15

MTD 1768435

DECAL-CAUTION PINCH POINT {NOT 34020}

$

$

Not available

?16

0

THIS REF. NO. NOT USED

$

$

Not available

17

0

ENGINE, 4HP B&S #122702-3182 RECOIL START ( MODELS 34020 & 34021)

$

$

Not available

17

0

ENGINE, 5HP B&S #124802-3433 RECOIL START ( MODEL 34022)

$

$

Not available

17

0

ENGINE, 5HP B&S #124807-3435 ELECTRIC START (MODEL 34023)

$

$

Not available

17

0

ENGINE, 5.5HP B&S #09977200628 EUROPA, RECOIL START, OHV (34311 & 34313)

$

$

Not available

18

Troy-Bilt 1746425

STOP-STARTER ROPE

$

$

Not available

19

MTD 1766513001

SHIELD-HEAT PNT {NOT 34311, 34313}

$

$

Not available

20

Troy-Bilt 90002

SCR-SELF TAP

$

$

Currently unavailable

21

Troy-Bilt 1767610

SCR-HH 3/8-16X1.25 THDFRM

$

$

Not available

22

Troy-Bilt 1768306

KIT-BLADE 21" MULCH MOWER {34020,34021, 34022,34023}

$

$

Currently unavailable

22

Troy-Bilt 1764381

BLADE-MULCHER 21" {34020,34021,34022,34023}

$46.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1768307

KIT-BLADE 21" BBC MULCH MOWER {34311,34313}

$

$

Currently unavailable

22

MTD 1768961

BLADE-MULCHER 21" BBC {34311,34313}

$

$

Not available

23

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP {NOT 34311,34313}
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1767588

SCR-HH M10X1.5X30MM {34311,34313}

$

$

Not available

24

Troy-Bilt 1100245

WASHER-LK .5 {NOT 34311,34313}
(Superseded to 936-0921)

$4.99

$

In Stock, Qty 9

0

25

MTD 1746688

SCR-SHLDR 3/8-24X1.63 {NOT 34311,34313}

$

$

Not available

26

MTD 1767589

WASHER-LK M10.2 {34311,34313}

$

$

Not available

27

MTD 1185885

KEY-WOODRUFF {34020,34021,34022,34023}

$

$

Not available

27

Troy-Bilt 97041

KEY-WOODRUFF .156X.625 {34311,34313}

$

$

Currently unavailable

28

MTD 1766541

COUPLING-BLADE {NOT 34311,34313}

$

$

Not available

29

Troy-Bilt 1733398

NUT-LOCK 3/8-16 {NOT 34311,34313}
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

30

MTD 1766546

SHEAVE-ENGINE {NOT 34020,34311,34313}

$

$

Not available

30

MTD 1766547

SHEAVE-ENGINE {34311,34313}

$

$

Not available

31

Troy-Bilt 1738845

SCR-SQHD 1/4-20X1/2 GR5 {NOT 34020,34311, 34313}

$

$

Not available

32

MTD 1187876

SCR-SET 1/4-20 {34311,34313}

$

$

Not available

33

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE {34311,34313}
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 9

0

34

MTD 1767608

BRKT-LOCATING ZP {34311,34313}

$

$

Not available

35

Troy-Bilt 1904230

CLUTCH-TYPE 6 BBC {34311,34313}
(Superseded to 1904230P)

$

$

Not available

36

Troy-Bilt 1767754

SCR-HW M10-24 THRFRM {34311,34313}
(Superseded to 710-04460)

$

$

Not available

37

MTD 1767658

WASHER-M12 {34311,34313}

$

$

Not available

38

Troy-Bilt 1765886

SPRING-EXTENSION {34311,34313}

$

$

Currently unavailable

39

0

CABLE, BLADE BRAKE CONTROL - SEE GRID C-10 ( MODELS 34311 & 34313)

$

$

Not available

40

MTD 1768538

SCR-SHLDR 5/16-18X2.00 {34311,34313}

$

$

Not available

41

Troy-Bilt 1768443

SWITCH-IGNITION GROUND

$

$

Not available

42

MTD 1764197

TAB-SWITCH

$

$

Not available

43

Troy-Bilt 97000

RIVET-POPOP

$

$

Currently unavailable

44

MTD 1902137

SCR-HH 10-24X.25 THRD FRM

$

$

Not available

45

Troy-Bilt 1908567

CLAMP-CABLE {34311,34313}

$

$

Currently unavailable

46

MTD 1768958

DECAL-LOGO MULCHER T/B

$

$

Not available

47

MTD 1768743

DECAL-WARNING SAFETY LIST

$

$

Not available

48

Troy-Bilt 9218

CLIP-SPECIAL {34021,34022,34023}
(Superseded to GW-9218)

$

$

Not available

MTD 1903391

PLATE-SWITCH

$

$

Not available

MTD 1902758

DECAL-WORLD CUP MM SIDE

$

$

Not available

MTD 1902759

DECAL-WORLD CUP MM TOP

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$32.99

$

Usually ships in 3-6 days

0
