34038 - Troy-Bilt 34" Trailblazer VIII Sicklebar Mower, 3.5hp CHASSIS, DRIVE ARM & CUTTER SUPPORT Parts Diagram

34" Trailblazer VIII Sicklebar Mower, 3.5hp

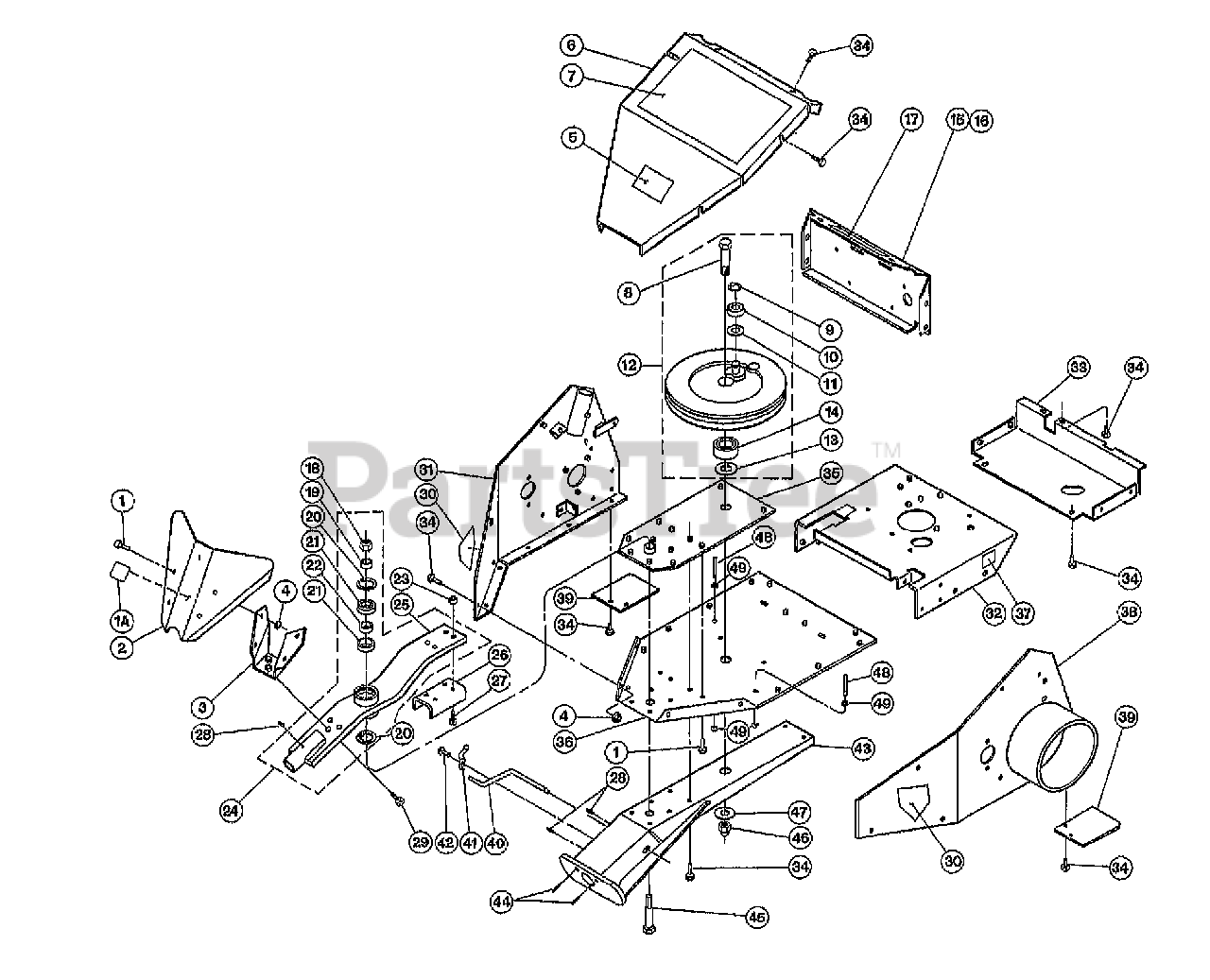

CHASSIS, DRIVE ARM & CUTTER SUPPORT Parts Diagram

  • Title

1

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5ZP

$

$

Currently unavailable

1A

Troy-Bilt 40169

DECAL-DANGER WEED DEFLET

$

$

Currently unavailable

2

MTD 1901065

DEFLT-WEED W/DECALS (INCL. 1A - #40169)

$

$

Not available

3

Troy-Bilt 1908177010

DEFLECTOR-WEED PNT

$

$

Currently unavailable

4

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

5

Troy-Bilt 40160

DECAL-DANGER (CUTTER BAR)

$

$

Currently unavailable

6

MTD 1900974

HOOD-PNT W/DECALS (INCL. 5 - #40160)

$

$

Not available

7

Troy-Bilt 40150

DECAL-LOGO TRAILBLAZER

$

$

Currently unavailable

8

Troy-Bilt 90050

BOLT-FLYWHEEL (SPECIAL)

$

$

Currently unavailable

9

Troy-Bilt 9518

RING-RETAIN EXT .669 ID

$

$

Currently unavailable

10

Troy-Bilt 97047

BEARING-ECCENTRIC

$

$

Currently unavailable

11

Troy-Bilt 97048

SHIM-1.125X.671X.048

$

$

Currently unavailable

12

MTD 40046

ASSM-FLYWHEEL/BEARING

$

$

Not available

13

Troy-Bilt 97049

SHIM-1.375X.789X.048

$

$

Currently unavailable

14

Troy-Bilt 97046

BEARING-FLYWHEEL

Variations

Troy-Bilt 97046-0638

DECK ASSEMBLY-22IN - MTD/TROY-BILT RED (0638)

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 97046-0483

DECK ASSEMBLY-22INCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 97046-0629

DECK ASSEMBLY-22INSILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Troy-Bilt 97046-0665

DECK ASSEMBLY-22IN(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 97046-0667

DECK ASSEMBLY-22IN(MIDNIGHT BLUE) - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 97046-0691

DECK ASSEMBLY-22IN - BLACK JACK (0691)

$

$

Not available

$197.99

$

Usually ships in 3-6 days

0

15

MTD 1900975010

HOOD-REAR PAINTED

$

$

Not available

16

MTD 1900976

HOOD-ELEC #40120PD

$

$

Not available

17

Troy-Bilt 40159

DECAL-SHRT CIR/CHRG INSTR

$

$

Currently unavailable

18

Troy-Bilt 92014

NUT-H/LK 5/8-11

$

$

Currently unavailable

19

Troy-Bilt 94014

WASHER-.5625

$

$

Currently unavailable

20

Troy-Bilt 97053

RING-RETAINING INT 1.575

$

$

Currently unavailable

21

Troy-Bilt 97051

BEARING-DRIVE ARM

$

$

Currently unavailable

22

Troy-Bilt 97052

SPACER-.6725X.96X.572

$

$

Currently unavailable

23

Troy-Bilt 92016

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

24

Troy-Bilt 40055

ASSM-DRIVE ARM

$

$

Currently unavailable

25

0

NOT AVAILABLE SEPARATELY

$

$

Not available

26

Troy-Bilt 40053

CHANNEL-DRIVEARM MACH

$

$

Currently unavailable

27

Troy-Bilt 90051

SCR-FH HXSKT 5/16-18X1.25

$

$

Currently unavailable

28

Troy-Bilt 97050

FITTING-GREASE STREIGHT

$

$

Currently unavailable

29

Troy-Bilt 90045

SCR-HFLK 5/16-18X1.00 ZP

$

$

Currently unavailable

30

Troy-Bilt 40153

DECAL-DANGER CUT FINGER
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

31

Troy-Bilt 1900978

PLATE-RT FRAME, INCL. DECALS (INCL. 30)

$

$

Currently unavailable

32

MTD 1900962010

ENGINE DECK

$

$

Not available

33

MTD 1900952010

COVER-BELT CUTTERBAR RED

$

$

Not available

34

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75 ZP

$

$

Currently unavailable

35

MTD 1900964010

PLATE-#40146P

$

$

Not available

36

MTD 1900965010

PLATE-FRAME BTM 40096P

$

$

Not available

37

Troy-Bilt 40158

DECAL-OIL DRAIN TUBE

$

$

Currently unavailable

38

MTD 1900980

PLATE-FRAME LT W/DEC (INCL. 30)

$

$

Not available

39

MTD 1900966010

PLATE-WEED GUARD 40145P

$

$

Not available

40

Troy-Bilt 40137

PIN-CRANK

$

$

Currently unavailable

41

Troy-Bilt 40136

SPRING CLAMP-CRANK PIN

$

$

Currently unavailable

42

Troy-Bilt 1900396

SCR-HW M10-32X.5 THRD ROLL

$5.99

$

Usually ships in 3-6 days

0

43

MTD 1900967010

HOLDER-CUTTERBAR 40118P

$

$

Not available

44

Troy-Bilt 97058

PIN-SPIROL .375X 1.0

$

$

Currently unavailable

45

Troy-Bilt 90052

BOLT-DRIVE ARM

$

$

Currently unavailable

46

Troy-Bilt 92012

NUT-H/LK 3/4-10

$

$

Currently unavailable

47

Troy-Bilt 94016

WASHER-2.0X.75X.15 ZP

$

$

Currently unavailable

48

Troy-Bilt 97065

PIN-BELT GUIDE

$

$

Currently unavailable

49

Troy-Bilt 92017

NUT-TOP/LK 5/16-18 ZP

$

$

Currently unavailable

MTD 1900333

DECAL-U.S.A.

$

$

Not available
