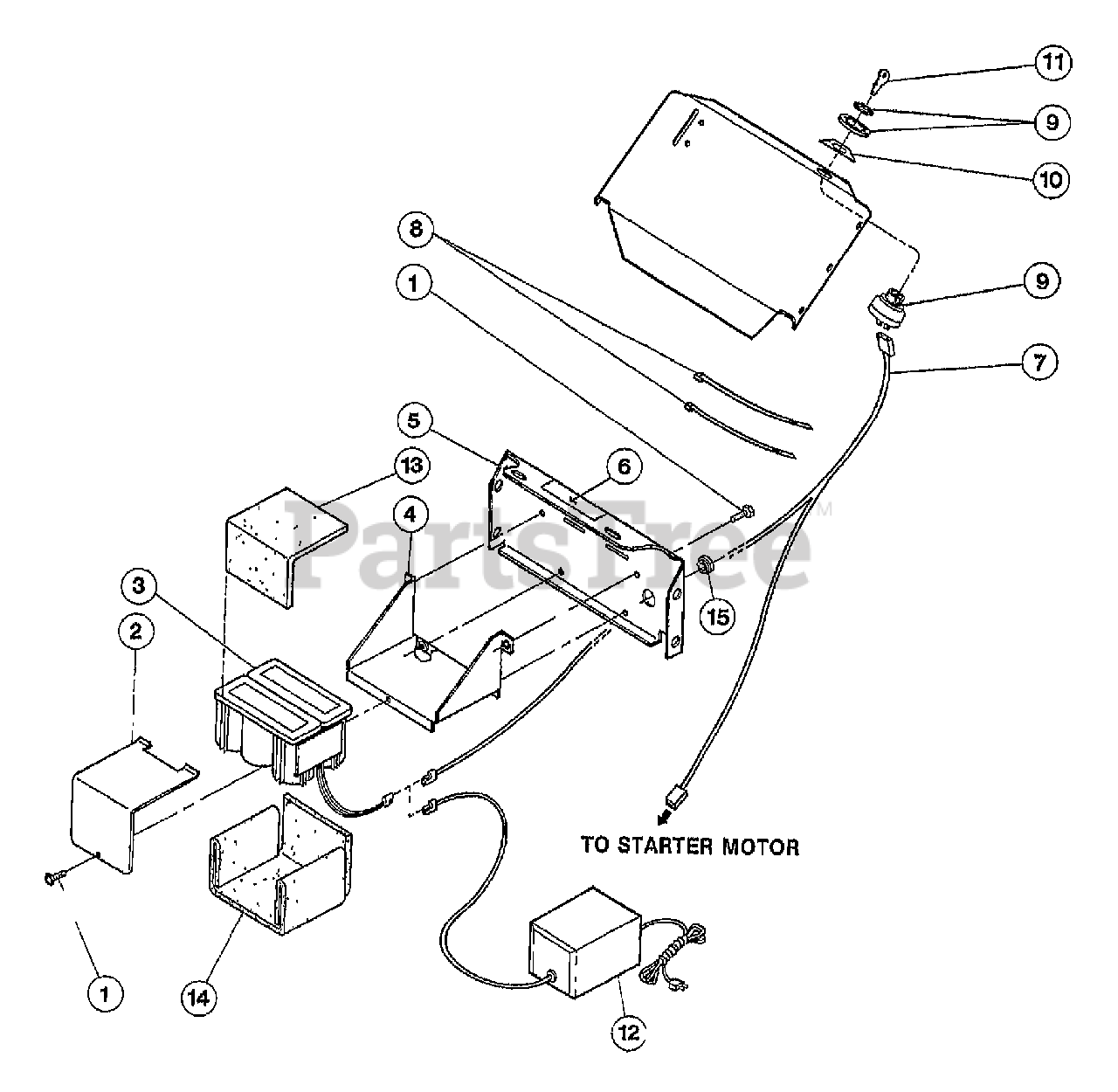

34038 - Troy-Bilt 34" Trailblazer VIII Sicklebar Mower, 3.5hp ELECTRIC START Parts Diagram

34" Trailblazer VIII Sicklebar Mower, 3.5hp

ELECTRIC START Parts Diagram

  • Title

1

Troy-Bilt 90060

SCR-H FL LK#10-32X.62 G5

$

$

Currently unavailable

2

MTD 1900972010

CLAMP-40138P

$

$

Not available

3

Troy-Bilt 96508

BATTERY & WIRE-T/BLAZER

$

$

Currently unavailable

4

Troy-Bilt 40161

BRKT-BATTERY W/NUTSERT

$

$

Currently unavailable

5

MTD 1900976

HOOD, REAR, INCLUDES DECAL #40159 (INDEX #6)

$

$

Not available

6

Troy-Bilt 40159

DECAL-SHRT CIR/CHRG INSTR

$

$

Currently unavailable

7

MTD 1908190

HARNESS-WIRE SICKLEBAR

$

$

Not available

8

Troy-Bilt 9266

TIE-CABLE NYLON BLACK

$

$

Currently unavailable

9

Troy-Bilt 11405

SWITCH-EL IGNITION

$

$

Currently unavailable

10

Troy-Bilt 40152

DECAL-ENGINE IGNITION
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 12

0

11

Troy-Bilt P406543

KEYS-IGN T/BLAZER 1 PAIR

$

$

Currently unavailable

12

Troy-Bilt 11402

CHARGER-BATTERY TRAILBLAZER

$

$

Currently unavailable

13

Troy-Bilt 40144

TOP PAD-BATTERY CLAMP

$

$

Currently unavailable

14

Troy-Bilt 40143

BOTTOM PAD-BATTERY BRKT

$

$

Currently unavailable

15

Troy-Bilt 97071

BUSHING-SNAP .750X1.00

$

$

Currently unavailable
