34039 - Troy-Bilt 26" High Wheel Walk-Behind Mower (SN: Original) DRIVE ASSEMBLY Parts Diagram

26" High Wheel Walk-Behind Mower

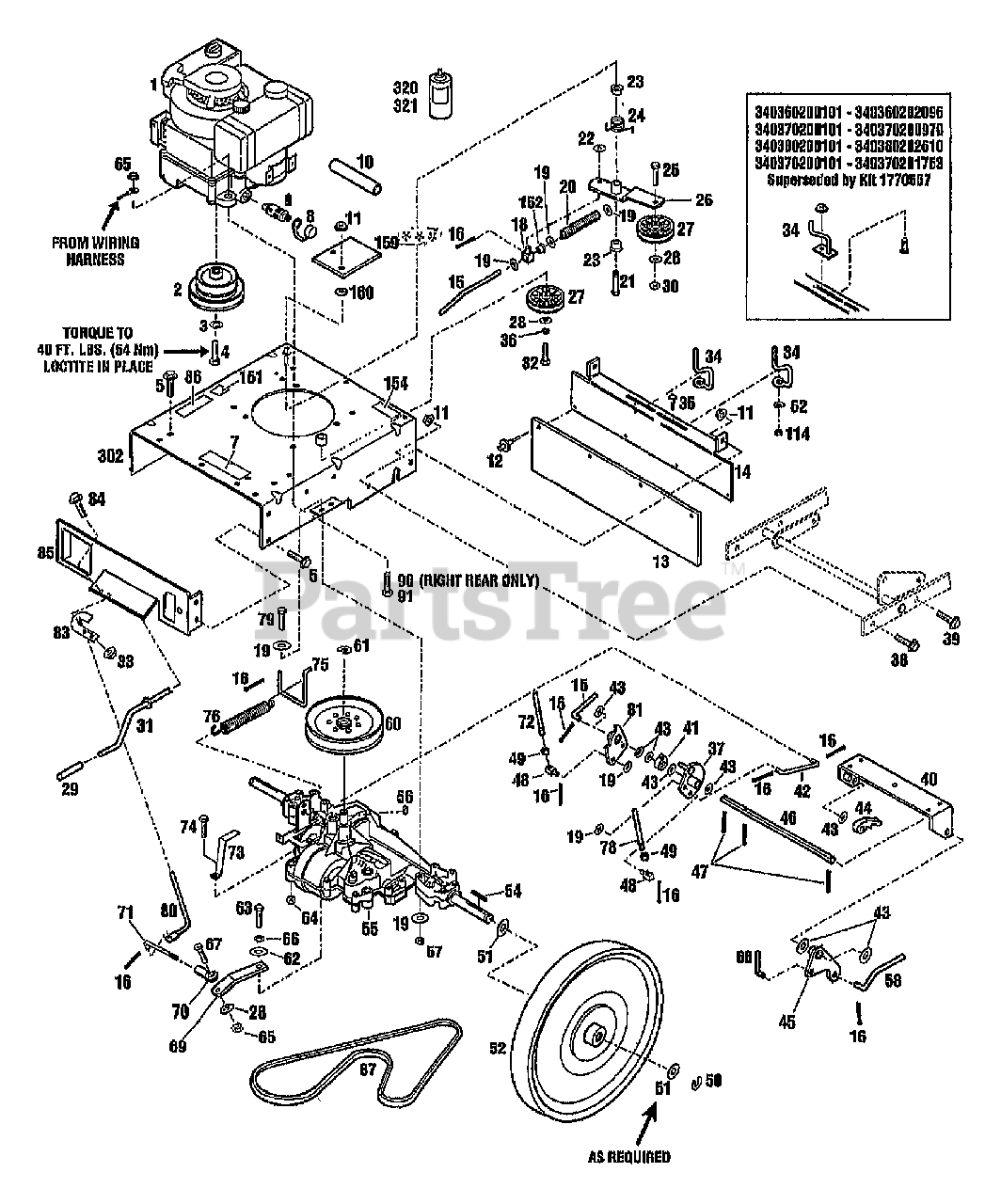

DRIVE ASSEMBLY Parts Diagram

  • Title

1

0

ENGINE, 5.5HP ELEC.

Note: (MODEL 34037-TEC. VLV55- 501018A)(MODEL 34036-TEC.-VLV55-501017A)

$

$

Not available

1

0

ENGINE, 8HP,

Note: (MODEL 34038-B&S-195702-0136) ( MODEL 34039-B&S-195707-0137)

$

$

Not available

2

MTD 1769954

ASSM-ENGINE SHEAVE-(SUPERSEDES 1764991)

$

$

Not available

3

Troy-Bilt 1100244

WASHER-LK .438
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1736485

SCR-HH 7/16-20X1.25 G5
(Superseded to 710-3029)

$4.49

$

In Stock, Qty 15

0

5

Troy-Bilt 1186328

SCR-HFLK 5/16-18X.62 G5
(Superseded to 710-04049)

$4.49

$

In Stock, Qty 14

0

7

MTD 1768450

DECAL-WARNING

$

$

Not available

8

MTD 1766326

CAP-OIL DRAIN (INCL. 8)

$

$

Not available

9

Troy-Bilt 1768865

ASSM-OIL VALVE
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1769006

HOSE-OIL DRAIN
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186393

NUT-HFLK 3/8-16

$2.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

13

MTD 1764986

FLAP-DEFLECTOR

$

$

Not available

14

Troy-Bilt 1764985001

BRACKET-FLAP MTG

$

$

Currently unavailable

15

MTD 1768610

ROD-LOWER TRANS

$

$

Not available

16

Troy-Bilt 1185147

PIN-COTTER .093X.625
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

18

MTD 1765036

BLOCK-PIVOT

$

$

Not available

19

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

20

Troy-Bilt 1711864

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 6

0

21

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$9.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 1705108

WASHER-.632X.39X.0329
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

24

MTD 1764992

SPRING-TORSION

$

$

Not available

25

MTD 1748393

SCR-CARR 3/8-16X1.75 G5

$

$

Not available

26

Troy-Bilt 1764920

ASSM-IDLER ARM
(Superseded to 687-02011-0637)

$47.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1756151

IDLER

$45.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1715685

GRIP-PLASTIC
(Superseded to 720-0269)

$4.49

$

In Stock, only 4 left!

0

30

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1769895

ASSM-CRANK LIFT
(Superseded to 1915831)

$23.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1186389

NUT-HF/LK 1/4-20

$3.49

$

Usually ships in 3-6 days

0

34

MTD 1770557

KIT-BELT GUIDE {34036,34037,34038,34039}

$

$

Not available

34

MTD 1769522

ASSM-BELT GUIDE {34036,34037,34038,34039}

$

$

Not available

35

Troy-Bilt 1766623

SCR-CARR 1/4-20X.50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

37

MTD 1768486

ASSM-BRAKE ARM PIVOT

$

$

Not available

38

MTD 1186348

SCR-HFLK 3/8-16X1.25

$

$

Not available

39

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

40

MTD 1768622001

ASSM-PIVOT BRACKET

$

$

Not available

41

MTD 1768059

CAM-INTERLOCK

$

$

Not available

42

MTD 1768612

ROD-LOWER BRAKE

$

$

Not available

43

MTD 1702646

WASHER-FLAT 1.0X.516X.031

$

$

Not available

44

MTD 1768060

LATCH-INTERLOCK

$

$

Not available

45

MTD 1768621

ASSM-BLADE PIVOT ARM

$

$

Not available

46

MTD 1768615

SHAFT-PIVOT

$

$

Not available

47

Troy-Bilt 1100349

PIN-COTTER .125 X .75
(Superseded to 914-0474)

$

$

Not available

48

Troy-Bilt 1725264

BLOCK-SWIVEL

$

$

Not available

49

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.49

$

In Stock, Qty 6

0

50

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

51

Troy-Bilt 1708012

WASHER-1.5X.755X.062
(Superseded to 736-0188)

$3.99

$

In Stock, Qty 20+

0

52

MTD 1772550

ASSM-WHEEL & TIRE

$

$

Not available

54

Troy-Bilt 1108841

KEY-.188 SQ X 1.5
(Superseded to 914-0133)

$

$

Not available

55

0

PEERLESS TRANSMISSION ASSEMBLY 915-022 (SEE GRID A-10/11 FOR BREAKDOWN)

$

$

Not available

56

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

57

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 1768380

ROD-LOWER

$

$

Currently unavailable

60

MTD 1764993

SHEAVE-TRANS DRIVE

$

$

Not available

61

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

62

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

63

Troy-Bilt 1100002

SCR-HH 1/4-28X.75 G5
(Superseded to 710-0412)

$5.49

$

In Stock, Qty 9

0

64

Troy-Bilt 1186391

NUT-HFLK 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

66

Troy-Bilt 1100241

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

67

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

68

MTD 1768613

ROD-UPPER BLADE

$

$

Not available

69

MTD 1768140

ARM-TRANSMISSION

$

$

Not available

70

Troy-Bilt 1767837

JOINT-BALL

$

$

Not available

71

Troy-Bilt 1768628

ROD-SHIFT LINK

$9.49

$

In Stock, only 1 left!

0

72

MTD 1768609

ROD-UPPER TRANS MOWER

$

$

Not available

73

MTD 1768381001

BRKT-BELT SUPPORT {34037}

$

$

Not available

74

MTD 1111606

SCR-HH 5/16-18X2.00

$

$

Not available

75

Troy-Bilt 1768624

ROD-SPRING ATTACHMENT

$

$

Not available

76

MTD 1768636

SPRING-EXTENSION

$

$

Not available

78

MTD 1768611

ROD-UPPER BRAKE

$

$

Not available

79

Troy-Bilt 1111609

SCR-HH 5/16-18X2.75 G5
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

80

MTD 1768627

ASSM-SHIFT LEVER

$

$

Not available

81

MTD 1768488

ASSM-CLUTCH ARM PIVOT

$

$

Not available

83

Troy-Bilt 1768630001

BRKT-SHIFT ROD MTG

$13.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

85

Troy-Bilt 1769852010

PLATE-BACK
(Superseded to 1769852001)

$

$

Not available

86

Troy-Bilt 1768436

DECAL-WARNING THROWN OBJECT

$

$

Currently unavailable

87

Troy-Bilt 1764942

BELT-TRANS DRIVE

$33.99

$

In Stock, only 3 left!

0

90

Troy-Bilt 1768194

SCR-THRD FRM 3/8-16X1.50 {34039}
(Superseded to 710-1007)

$5.99

$

In Stock, Qty 7

0

91

MTD 1762042

SCR-HH 3/8-16X1.0 THDFM

$

$

Not available

114

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

152

Troy-Bilt 1716338

BEARING

$

$

Currently unavailable

154

MTD 1901899

DECAL-AMERICAN LEGEND-SM

$

$

Not available

159

Troy-Bilt 1769034

HEAT SHIELD

$

$

Currently unavailable

160

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179 {34038,34039}

$5.99

$

Usually ships in 3-6 days

0

161

MTD 1769049

DECAL-STEP

$

$

Not available

302

Troy-Bilt 1768494

ASSM-FRAME (INCL. 7 & 86)

$

$

Currently unavailable

320

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available

321

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0

?322

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0
