34041 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: Original) DECK ASSEMBLY Parts Diagram

33" Wide-Cut Walk-Behind Mower

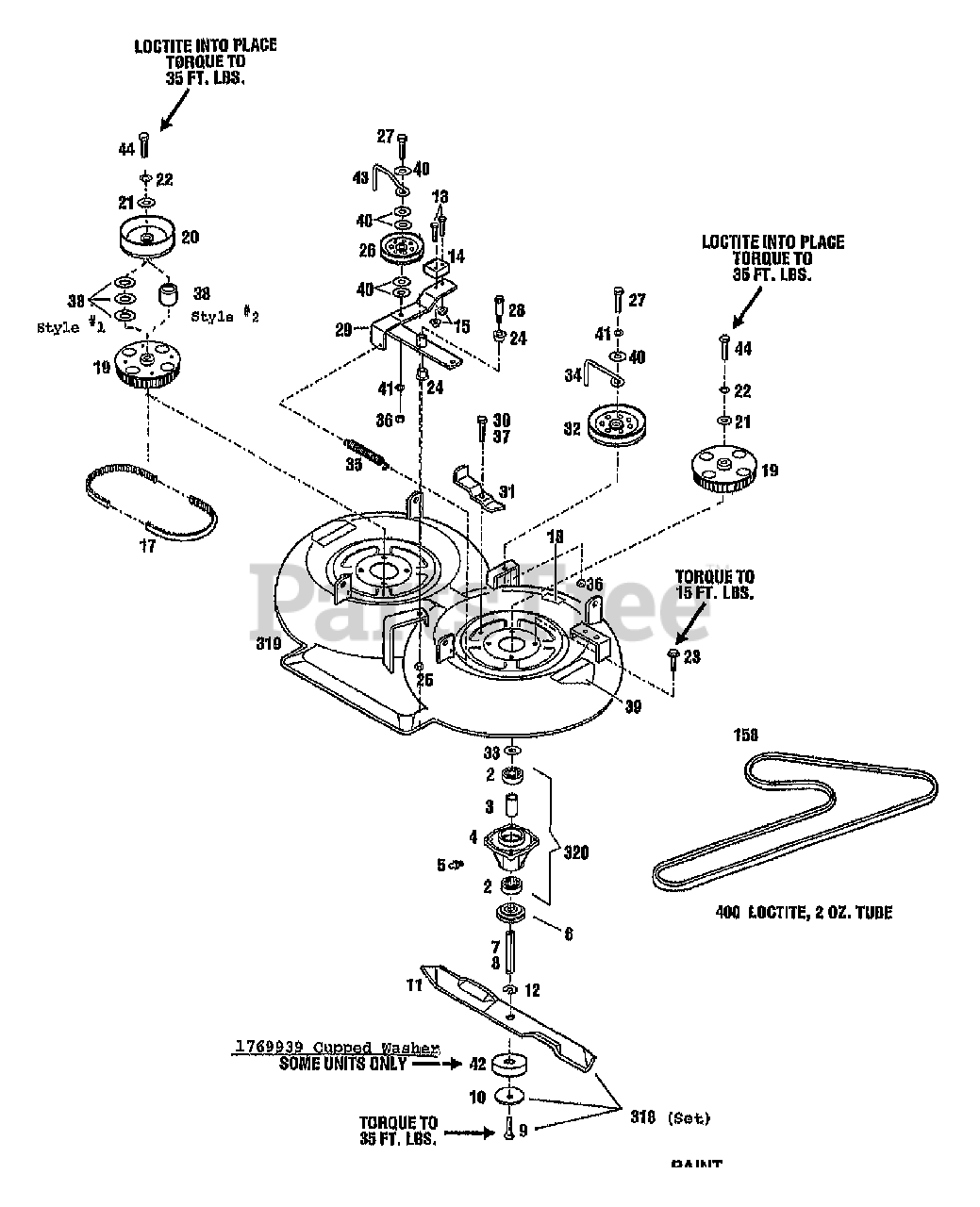

DECK ASSEMBLY Parts Diagram

  • Title

2

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$36.99

$

In Stock, Qty 7

0

3

Troy-Bilt 1746869

SPACER

$20.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$185.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 1765029

SPACER-BLADE

$

$

Not available

7

Troy-Bilt 1766061

SHAFT-SPINDLE MED. H/T
(Superseded to 1918880)

$103.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1768169

SPINDLE-SHAFT LONG H/T
(Superseded to 1918880)

$103.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 1765197

WASHER-BELLEVILLE

$27.99

$

In Stock, Qty 5

0

11

Troy-Bilt 1769947

BLADE-33" MULCHING
(Superseded to 1772552)

$49.99

$

In Stock, Qty 15

0

12

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

13

Troy-Bilt 1747939

SCR-HW M10-24X1.25

$

$

Not available

14

MTD 1762245

PAD-BRAKE

$

$

Not available

15

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$4.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 1764995

BELT-DRIVE
(Superseded to 1773600)

$51.99

$

In Stock, Qty 5

0

18

MTD 1768435

DECAL-CAUTION PINCH POINT

$

$

Not available

19

Troy-Bilt 1770432

COGGED PULLEY, 56T (SUPERCEDES 1765406)
(Superseded to 913-04050)

$172.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 1769362

PULLEY-BLADE DRIVE ZP
(Superseded to 1918625)

$

$

Not available

21

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$9.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

25

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

26

MTD 1764001

PULLEY-IDLER

$

$

Not available

27

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

28

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

29

MTD 1764913001

ASSM-BRAKE ARM

$

$

Not available

30

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

31

MTD 1765327001

BRKT-BELT TENSION ADJ

$

$

Not available

32

Troy-Bilt 1749911

PULLEY

$

$

Not available

33

Troy-Bilt 1766787

WASHER-THRUST .75 ID

$6.99

$

In Stock, Qty 10

0

34

Troy-Bilt 1720717

GUIDE-BELT

$

$

Not available

35

Troy-Bilt 1756595

SPRING-EXTENSION

$18.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 10

0

37

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 1723996

SPACER-PULLEY ZP
(Superseded to 750-05218)

$7.99

$

In Stock, Qty 12

0

39

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 15

0

41

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 1769939

WASHER-CUP 2.76X1.0X.4 (SOME UNITS)

$

$

Currently unavailable

43

MTD 1763752

GUIDE-BELT

$

$

Not available

44

Troy-Bilt 1769397

SCR-HH 7/16-14X1.25
(Superseded to 710-04070)

$3.99

$

In Stock, Qty 17

0

158

Troy-Bilt 1764906

BELT-V
(Superseded to 1769830)

$45.99

$

In Stock, Qty 12

0

318

Troy-Bilt 1769987

KIT-2 BLADE WC MWR 33" (SUPERCEDES 1768492) SET OF 2 (INCL. 9,10 AND 318)

$

$

Currently unavailable

319

Troy-Bilt 1768495

ASSM-DECK 33" (INCL. 39 & 18)

$

$

Currently unavailable

320

Troy-Bilt 1769048

ASSM-MOWER SPINDLE (INCL. 2 - 5)
(Superseded to 1769048099)

$185.99

$

In Stock, only 1 left!

0

400

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$25.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$32.99

$

In Stock, only 1 left!

0
