34071 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: 340710100101 - 340710199999) HANDELBAR AND CONSOLE Parts Diagram

33" Wide-Cut Walk-Behind Mower

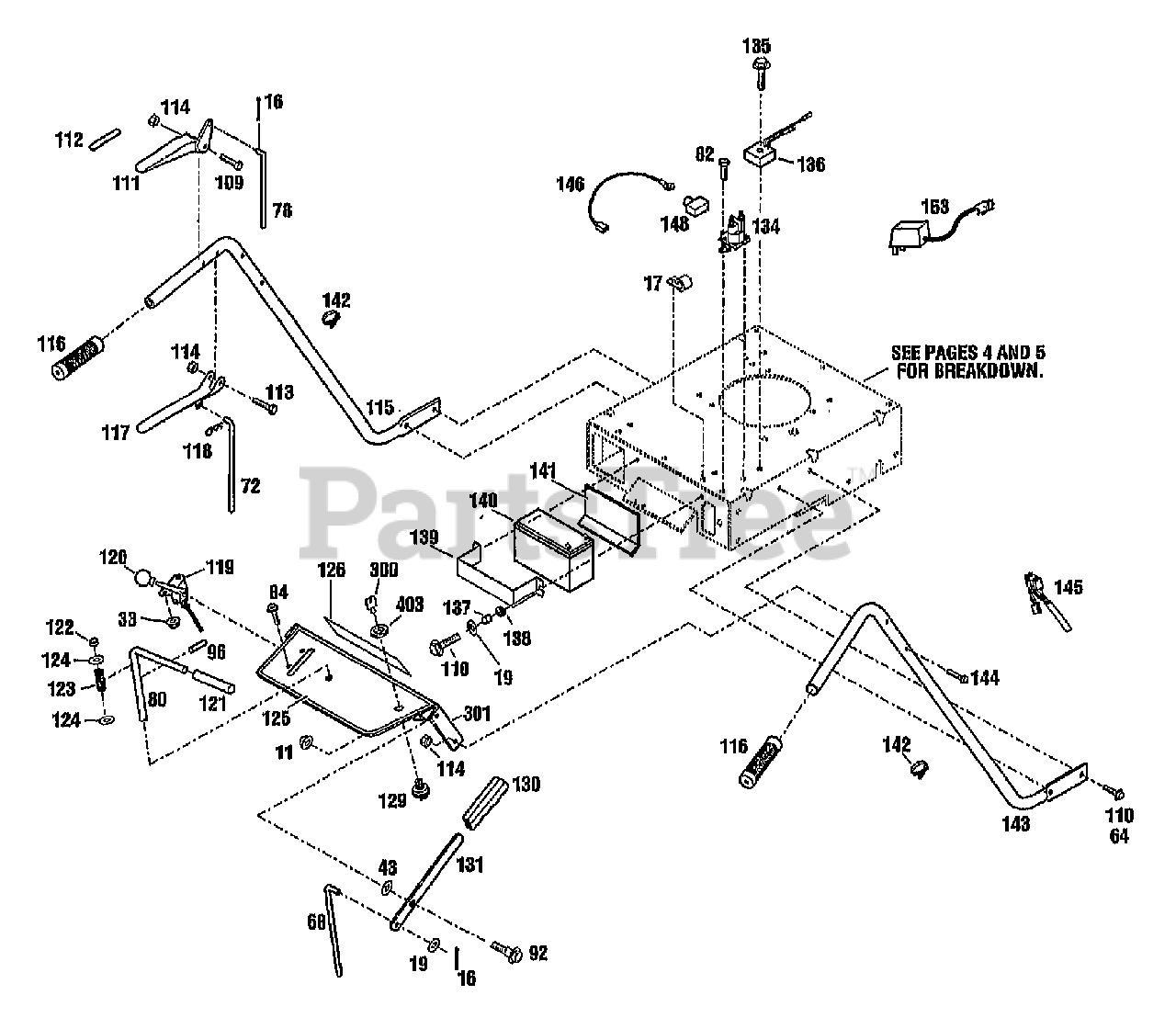

HANDELBAR AND CONSOLE Parts Diagram

  • Title

11

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 1185147

PIN-COTTER .093X.625
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

17

MTD 1721252

CLIP-CLAMP .25 ID

$

$

Not available

19

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

33

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

43

MTD 1702646

WASHER-FLAT 1.0X.516X.031

$

$

Not available

64

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

68

MTD 1769888

ROD-UPPER BLADE

$

$

Not available

72

MTD 1769873

ROD-UPR TRANSMISSION

$

$

Not available

78

Troy-Bilt 1769872

ROD-UPPER BRAKE

$

$

Not available

80

Troy-Bilt 1769874

LEVER-SHIFT

$31.99

$

Usually ships in 3-6 days

0

82

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP {34071,34074}

$

$

Not available

84

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

92

Troy-Bilt 1703051

BOLT-SHOULDER MOWER

$10.99

$

In Stock, only 1 left!

0

96

Troy-Bilt 1185279

PIN-ROLL .25X2.25

$

$

Not available

109

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

110

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

111

MTD 1770445001

LEVER-CONTROL

$

$

Not available

112

MTD 1768452

DECAL-OPC MOWERS

$

$

Not available

113

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP
(Superseded to 710-0606)

$4.99

$

In Stock, Qty 15

0

114

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

115

Troy-Bilt 1764922010

HANDLEBAR-LH

$88.99

$

In Stock, only 3 left!

0

116

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$10.99

$

In Stock, Qty 8

0

117

MTD 1768131001

HANDLE-CONTROL MOWER

$

$

Not available

118

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1768191

CABLE-THROTTLE CONTROL
(Superseded to 1768191P)

$43.99

$

In Stock, Qty 6

0

120

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$8.99

$

In Stock, Qty 9

0

121

Troy-Bilt 1737041

GRIP-HANDLE
(Superseded to 720-0312)

$4.49

$

In Stock, Qty 7

0

122

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

In Stock, only 1 left!

0

123

MTD 1721492

SPRING-COMPRESSION

$

$

Not available

124

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

125

MTD 1768456

DECAL-WARNING STD WC {34073,34075}

$

$

Not available

125

MTD 1768457

DECAL-WARNING ELEC WC {34071,34074}

$

$

Not available

126

Troy-Bilt 1768389

DECAL-WIDE CUT T/B
(Superseded to 777D07931)

$

$

Not available

129

Troy-Bilt 1734196

ASSM-KEYSWITCH {34071,34074}
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 17

0

130

Troy-Bilt 1764984

GRIP-HANDLE
(Superseded to 720-0313)

$18.99

$

Usually ships in 3-6 days

0

131

Troy-Bilt 1768223

LEVER-MOWER ENGAGE ZP

$

$

Not available

134

Troy-Bilt 1752137

SOLENOID {34071,34074}
(Superseded to 1752137P)

$65.99

$

Usually ships in 3-6 days

0

135

MTD 1747027

SCR-HFLK {34071,34074}

$

$

Not available

136

Troy-Bilt 1768464

REGULATOR
(Superseded to BS-794360)

$64.99

$

In Stock, only 2 left!

0

137

MTD 1749778

SPACER {34071,34074}

$

$

Not available

138

Troy-Bilt 1769080

GROMMET {34071,34074}

$

$

Not available

139

MTD 1768159010

BRACKET-BATTERY {34071,34074}

$

$

Not available

140

Troy-Bilt 1768158

BATTERY {34071,34074}

$251.99

$

Usually ships in 3-6 days

0

141

Troy-Bilt 1769081

PAD-BATTERY {34071,34074}

$

$

Currently unavailable

142

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 2 left!

0

143

Troy-Bilt 1764923010

HANDLEBAR-RH

$87.99

$

In Stock, only 2 left!

0

144

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

145

MTD 1770371

HARNESS-WIRING {34071,34074}

$

$

Not available

146

MTD 1768444

ASSM-WIRE LEAD {34071,34074}

$

$

Not available

148

Troy-Bilt 1734364

BOOT-CABLE {34071,34074}

$

$

Currently unavailable

153

Troy-Bilt 1768449

CHARGER-BATTERY {34071,34074} (SHIPPED LOOSE)
(Superseded to 725-13345)

$60.99

$

In Stock, only 1 left!

0

300

MTD 1753986

KEY-IGNITION {34071,34074}

$

$

Not available

301

Troy-Bilt 1768640

ASSM-CONSOLE {34073,34075} (INCL. 125)

$

$

Currently unavailable

301

Troy-Bilt 1768493

ASSM-CONSOLE {34071,34074} (INCL. 125)

$

$

Not available

403

Troy-Bilt 1770592

NUT-IGNITION SWITCH

$

$

Currently unavailable
