34071 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: 340710100101 - 340710199999) PEERLESS TRANSAXLE 915-027 Parts Diagram

33" Wide-Cut Walk-Behind Mower

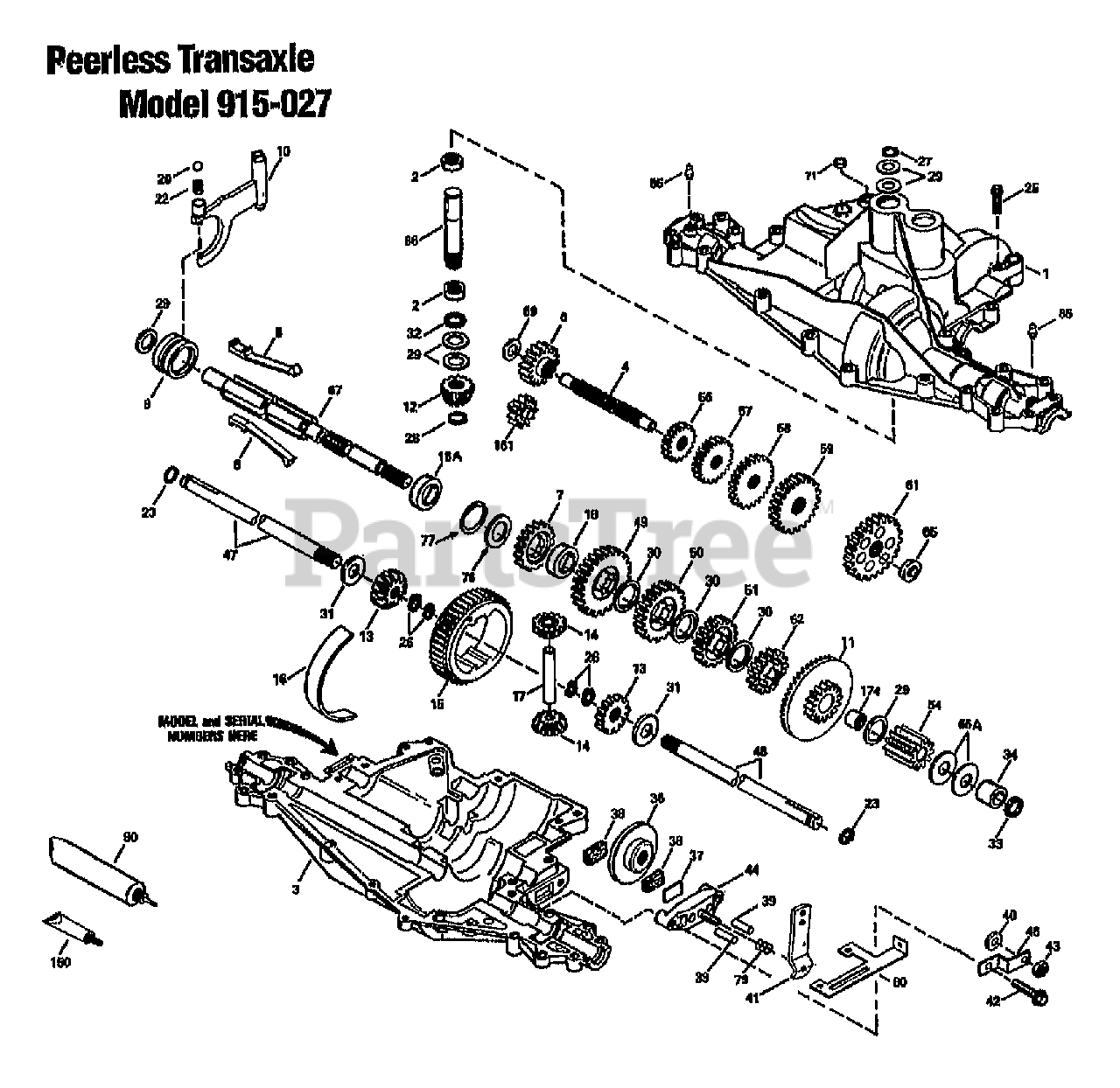

PEERLESS TRANSAXLE 915-027 Parts Diagram

  • Title
1

Troy-Bilt 772113

TRANSAXLE COVER

$

$

Currently unavailable

1

Troy-Bilt 772135

TRANSAXLE COVER

$

$

Currently unavailable

2

Troy-Bilt 780086

NEEDLE BEARING

$

$

Currently unavailable

3

Troy-Bilt 770110

TRANSAXLE CASE

$

$

Currently unavailable

4

Troy-Bilt 776300

COUNTERSHAFT

$

$

Currently unavailable

6

Troy-Bilt 778281

SPUR GEAR (16 TEETH)

$

$

Currently unavailable

7

Troy-Bilt 778122A

SPUR GEAR (22 TEETH)

$

$

Currently unavailable

8

Troy-Bilt 792160

SHIFT KEY

$

$

Currently unavailable

?9

Troy-Bilt 784373

SHIFT COLLAR

$

$

Currently unavailable

10

Troy-Bilt 784365

SHIFT ROD & FORK

$

$

Currently unavailable

11

Troy-Bilt 778261

BEVEL GEAR & BEARING (INCL. 174)

$

$

Currently unavailable

12

Troy-Bilt 778262

BEVEL PINION (14 TEETH)

$

$

Currently unavailable

13

Troy-Bilt 778221

BEVEL GEAR (16 TEETH)

$

$

Currently unavailable

14

Troy-Bilt 778068

DIFFERENTIAL PINION

$

$

Currently unavailable

15

Troy-Bilt 778260

RING GEAR

$

$

Currently unavailable

16

Troy-Bilt 786150

BEARING STRIP

$

$

Currently unavailable

17

Troy-Bilt 786139

DRIVE PIN

$

$

Currently unavailable

18

Troy-Bilt 786147

NEUTRAL SPACER

$

$

Currently unavailable

18A

Troy-Bilt 786159

NEUTRAL SPACER

$

$

Currently unavailable

20

Troy-Bilt 792077

BALL, 5/16" DIA.

$

$

Currently unavailable

22

Troy-Bilt 792079

SPRING
(Superseded to TC-792079)

$4.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 788061

SEAL RING
(Superseded to TC-788061)

$4.49

$

In Stock, Qty 6

0

25

Troy-Bilt 792073

SCREW, 1/4-20 X 1-1/4"

$

$

Currently unavailable

26

Troy-Bilt 792125

RETAINING RING

$

$

Currently unavailable

27

Troy-Bilt 792035

RETAINING RING
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 17

0

28

Troy-Bilt 788040

RETAINING RING

$

$

Currently unavailable

29

Troy-Bilt 780072

WASHER
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780108

WASHER
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

31

$

$

Currently unavailable

32

Troy-Bilt 792001

"O" RING
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 11

0

33

Troy-Bilt 788076

"O" RING

$

$

Currently unavailable

34

$

$

Currently unavailable

36

Troy-Bilt 790071

BRAKE DISK

$

$

Currently unavailable

37

Troy-Bilt 790007

BRAKE PAD PLATE
(Superseded to TC-790007)

$5.99

$

In Stock, Qty 5

0

38

Troy-Bilt 799021

BRAKE PAD (PKG OF 2)

$

$

Currently unavailable

39

Troy-Bilt 786026

DOWEL PIN
(Superseded to TC-786026)

$1.99

$

Usually ships in 3-12 days

0

40

$

$

Currently unavailable

41

Troy-Bilt 790045

BRAKE LEVER

$

$

Currently unavailable

42

Troy-Bilt 792073

SCREW, 1/4-20 X 1-1/4"

$

$

Currently unavailable

43

Troy-Bilt 792075

LOCKNUT, 5/16-24

$

$

Currently unavailable

44

Troy-Bilt 790025

BRAKE PAD HOLDER

$

$

Currently unavailable

46

Troy-Bilt 786086

BRAKE LEVER BRACKET

$

$

Currently unavailable

47

Troy-Bilt 774747

AXLE (16-1/4" LONG)

$

$

Currently unavailable

48

Troy-Bilt 774888

AXLE (11" LONG)

$

$

Currently unavailable

49

Troy-Bilt 778124A

SPUR GEAR (30 TEETH)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 778123A

SPUR GEAR (25 TEETH)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

51

Troy-Bilt 778122A

SPUR GEAR (22 TEETH)

$

$

Currently unavailable

52

Troy-Bilt 778273

SPUR GEAR (19 TEETH)

$

$

Currently unavailable

54

Troy-Bilt 778263

SPUR GEAR (11 TEETH)

$

$

Currently unavailable

56

Troy-Bilt 778126A

SPUR GEAR (20 TEETH)

$

$

Currently unavailable

57

Troy-Bilt 778127A

SPUR GEAR (25 TEETH)

$

$

Currently unavailable

58

Troy-Bilt 778128A

SPUR GEAR (28 TEETH)

$

$

Currently unavailable

59

Troy-Bilt 778129A

SPUR GEAR (30 TEETH)

$

$

Currently unavailable

61

Troy-Bilt 778265

SPUR GEAR (34 TEETH)

$

$

Currently unavailable

65

$

$

Currently unavailable

65A

$

$

Currently unavailable

66

Troy-Bilt 776299

INPUT SHAFT

$

$

Currently unavailable

67

Troy-Bilt 776352

SHIFTER & BRAKE SHAFT

$

$

Currently unavailable

69

$

$

Currently unavailable

71

Troy-Bilt 788069

SQUARE CUT RING

$

$

Currently unavailable

76

$

$

Currently unavailable

77

Troy-Bilt 788078A

INVERTED RETAINING RING (PKG OF 2)

$

$

Currently unavailable

79

$

$

Currently unavailable

80

Troy-Bilt 790063A

BRAKE BRACKET

$

$

Currently unavailable

85

Troy-Bilt 792137

LUBRICATION FITTING

$

$

Currently unavailable

90

Troy-Bilt 788067B

GREASE (32OZ. BTL. BENTONITE GREASE)

$

$

Currently unavailable

150

Troy-Bilt 510334

GASKET ELIMINATOR (LOCTITE #515)
(Superseded to TC-510334)

$12.99

$

Usually ships in 3-12 days

0

161

Troy-Bilt 776302

REVERSE IDLER

$

$

Currently unavailable

174

Troy-Bilt 780085

NEEDLE BEARING

$

$

Currently unavailable
