341 (190-341-100) - Cub Cadet 42" Snow Thrower Attachment att Lift Handle And Chute Controls Parts Diagram

42" Snow Thrower Attachment

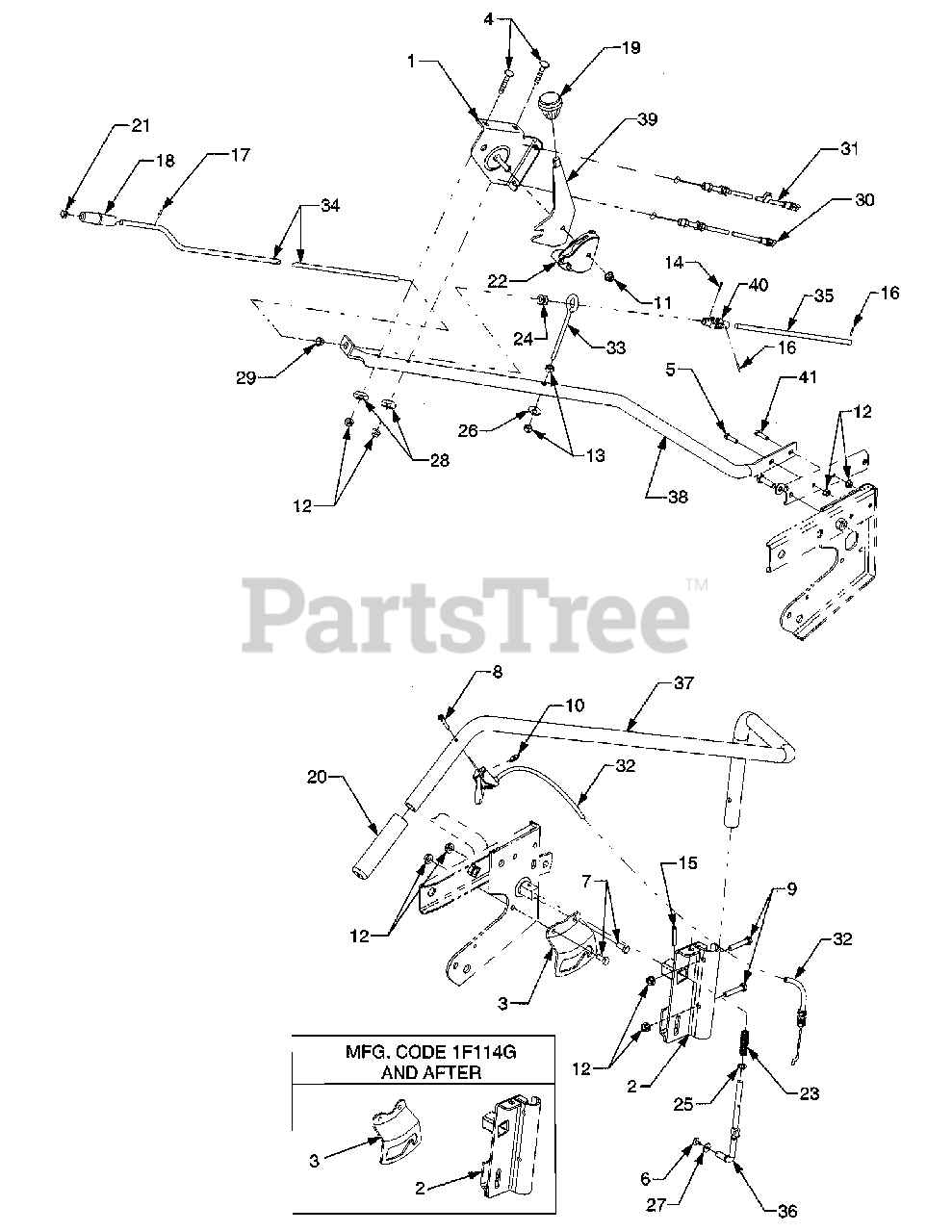

Lift Handle And Chute Controls Parts Diagram

  • Title

1

Cub Cadet 603-0302-0716

Bracket, Chute Tilt
(Superseded to 603-0302A-0637)

$73.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-0298-0716

Bracket, Lift Mfg. Code 1F104G & Before

$

$

Not available

2

Cub Cadet 683-04150-0716

Bracket, Lift Mfg. Code 1F114G & After
(Superseded to 683-04150-0637)

$88.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2728A-0716

Bracket, Lift Handle Latch. Mfg. Code 1F104F & Before
(Superseded to 703-2728A-0637)

$

$

Not available

3

Cub Cadet 790-00110-0716

Bracket, Lift Handle Lockout. Mfg. Code 1F114G & After

$

$

Currently unavailable

4

Cub Cadet 710-0262

Bolt, Carriage 5/16-18 x 1.5 GR2

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0805

Screw, Hex Cap 5/16-18 x 1.5 GR5
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 710-1268

Screw, Hex Wash, Hd Tapp #10-16 x .375

$4.49

$

In Stock, Qty 18

0

7

Cub Cadet 710-3008

Screw, Hex Cap 5/16-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3143

Screw, Pan Phillips Hd. 10-24 x 1.5

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3180

Screw, Hex Cap 5/16-18 x 1.75 GR5

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0127

Nut, Flat Weld, 10-24

$3.49

$

In Stock, Qty 10

0

11

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3010

Nut. Hex. 5/16-18 GR5

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0507

Pin. Cotter. 3/32 x . 75

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 715-0114

Pin. Spirol. 1/4 x 1-1/2

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 715-0129

Pin. Sprol. . 125 x . 812

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet 715-0138

Pin. Roll. 1/8 x . 63
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

18

Cub Cadet 720-0201A

Knob. Chute Crank

$11.99

$

In Stock, only 2 left!

0

19

Cub Cadet 720-0232

Knob. Tilt Handle
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 6

0

20

Cub Cadet 720-0274

Grip. Lift Handle

$12.99

$

In Stock, only 2 left!

0

21

Cub Cadet 726-0100

Cap. Push

$4.99

$

In Stock, only 1 left!

0

22

Cub Cadet 731-1313C

Guide. Cable

$12.99

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0306

Spring. Compression
(Superseded to 932-0306A)

$8.99

$

In Stock, Qty 20+

0

24

Cub Cadet 735-0234

Grommet. Rubber

$5.49

$

In Stock, Qty 9

0

25

Cub Cadet 736-0140

Washer. Flat. .38 x . 62 x . 063

$7.49

$

In Stock, Qty 12

0

26

Cub Cadet 736-0242

Washer. Bell. .34 x . 872 x . 06

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0400

Washer. Flat. .19 x . 62 x . 063

$5.99

$

In Stock, Qty 9

0

28

Cub Cadet 736-0451

Washer. Saddle. .32 x . 93

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet 741-0475

Bushing. Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 746-0928

Cable. Chute Control

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 746-0929

Cable. Chute Control w/Clip

$

$

Not available

32

Cub Cadet 746-1103A

Cable/Trigger Assembly, Lift Latch (Replaces 746-3060A)
(Superseded to 946-1103A)

$77.99

$

In Stock, only 1 left!

0

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-0697

Eyebolt. Chute Crank

$8.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-0931

Rod. Chute Crank. 28.0 in . Lg
(Superseded to 747-0931A)

$28.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-0932

Rod. 1 1.375 Lg

$

$

Not available

36

Cub Cadet 747-1203

Rod. Lift Index

$58.99

$

In Stock, only 3 left!

0

37

Cub Cadet 750-3348-0716

Handle. Lift Replaces 750-1028A

$245.99

$

In Stock, only 1 left!

0

38

Cub Cadet 750-1054-0716

Tube. Chute Crank Support

$108.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 784-5604-0637

Handle. Chute Tilt
(Superseded to 784-5604A-0637)

$26.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 784-5149

Block Assembly. Joint
(Superseded to 684-04350)

$30.99

$

In Stock, only 1 left!

0

41

Cub Cadet 710-0528

Screw. Hex Cap 5/16-18 x 1.25 GR5

$4.99

$

In Stock, Qty 20+

0
