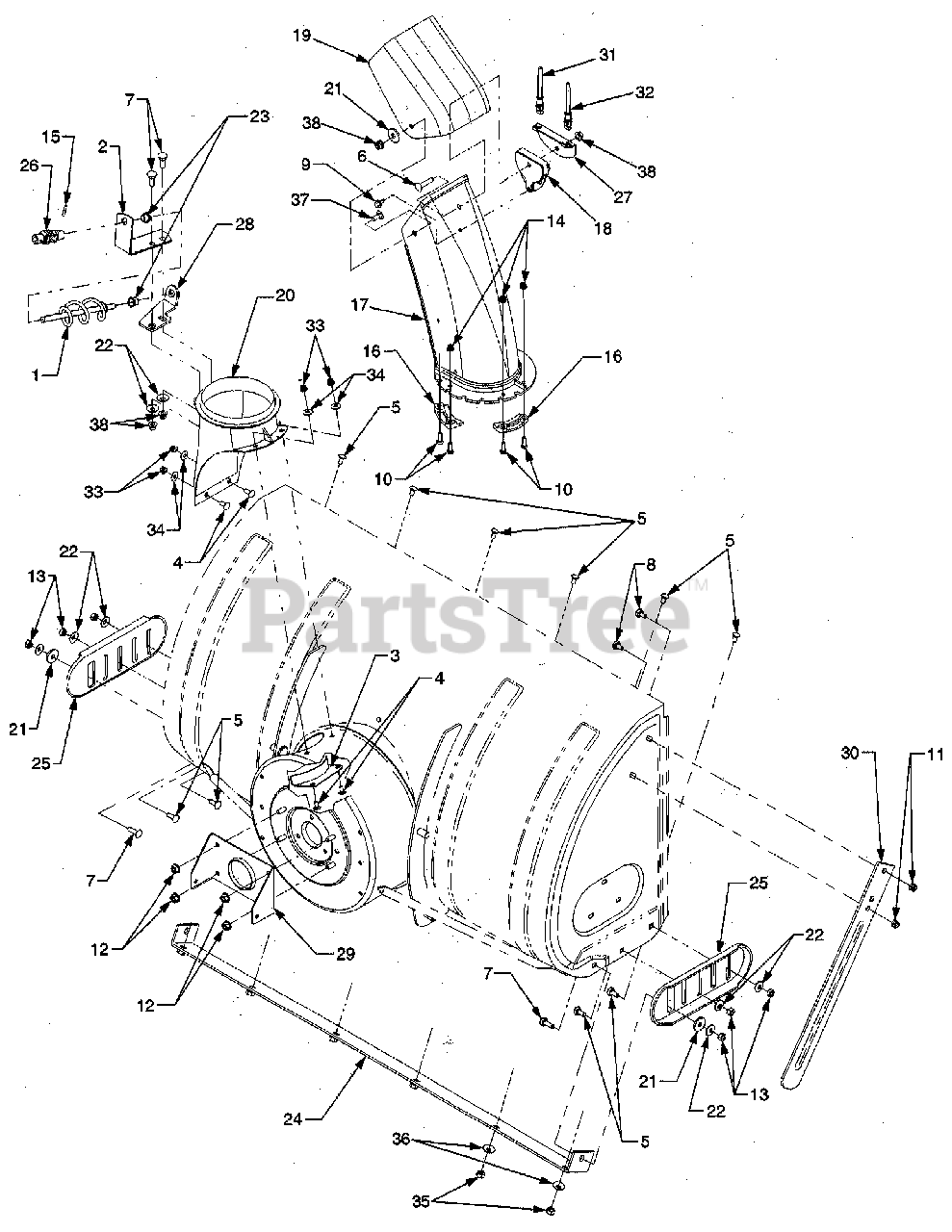

341 (190-341-100) - Cub Cadet 42" Snow Thrower Attachment Discharge Chute, Shave Plate And Skid Shoes Parts Diagram

42" Snow Thrower Attachment

Discharge Chute, Shave Plate And Skid Shoes Parts Diagram

  • Title

1

Cub Cadet 684-0061

Chute Crank
(Superseded to 684-0061A)

$44.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2735A-0716

Bracket, Chute Crank

$19.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 705-5226-0716

Plate, Chute Reinforcement

$

$

Currently unavailable

4

Cub Cadet 710-0167

Bolt, Carriage. 1/4-20 x . 5. Mfg. Code 1I040G and before
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 16

0

Cub Cadet 710-0703

Bolt, Carriage. 1/4-20 x . 75. Mfg. Code 1I050G and after

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 710-0260A

Bolt, Carriage. 511 6-1 8 x . 62

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0262

Bolt, Carriage. 5116-1 8 x 1.5

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 710-0276

Bolt, Carriage. 5116-1 8 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0451

Bolt, Carriage. 511 6-1 8 x . 75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0896

Screw, Hex Wash . Hd Tapp 1/4-14 x .625

$4.49

$

In Stock, Qty 8

0

10

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0429

Nut, Hex Insert Lock. 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock. 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3010

Nut, Hex. 5/16-18 GR5

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

Nut, Hx Insert Flange Lk. 1/4-20. Replaces 712-3027

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 715-0129

Pin, Spirol. 118 x . 812

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-0851A

Keeper, Chute Flange

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-1300B

Chute, Lower Discharge
(Superseded to 731-1300E)

$60.99

$

In Stock, Qty 7

0

18

Cub Cadet 731-1313C

Guide, Cable

$12.99

$

In Stock, Qty 16

0

19

Cub Cadet 731-1320

Chute, Upper Discharge
(Superseded to 731-04427B)

$17.99

$

In Stock, Qty 6

0

Cub Cadet 777S30524

Graphic, Danger Shut Off Eng.

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-1379C

Adapter, Discharge Chute
(Superseded to 731-1379D)

$69.99

$

In Stock, Qty 5

0

21

Cub Cadet 736-0231

Washer, Flat. . 344 x 1 . 125 x . 12

$4.99

$

In Stock, Qty 19

0

22

Cub Cadet 736-0242

Washer, Bell. . 34 x . 872 x . 06

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 784-0396A-0637

Plate, Shave
(Superseded to 784-0396C-0637)

$68.99

$

In Stock, only 2 left!

0

25

Cub Cadet 784-5038B-0637

Shoe, Skid

$29.99

$

In Stock, only 2 left!

0

26

Cub Cadet 784-5149

Block Assembly, Joint
(Superseded to 684-04350)

$30.99

$

In Stock, only 3 left!

0

27

Cub Cadet 784-5594-0716

Bracket, Cable
(Superseded to 784-5594-0637)

$12.99

$

In Stock, only 2 left!

0

28

Cub Cadet 784-5647-0637

Bracket, Chute Crank

$15.99

$

In Stock, only 3 left!

0

29

Cub Cadet 784-5703-0637

Bracket, Box Mounting

$51.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 05139A-0716

Guide, Blade
(Superseded to 790-00181-0637)

$45.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 746-0928

Cable, Chute Control

$80.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 746-0929

Cable, Chute Control w/Clip

$

$

Not available

33

Cub Cadet 712-04064

Nut, Hx Insert Flange Lk. 1/4-20. Replaces 712-3027 & 712-0324

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0463

Washer, Flat. .25 x . 625 x . 052. Mfg. Code 1I050G and after

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-3004A

Nut, Hex Flange Lock. 5/16-1 8 GR5. Mfg. Code 1E301G and before

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex. 5/16-18 GR5. Mfg. Code 1E311G and after

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0242

Washer, Bell, .34 x . 872 x . 06. Mfg. Code 1E311G and after

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-04071

Screw, Carriage. 5/16-18 x 1.0. Replaces 710-0451 or 710-0276

$4.99

$

In Stock, only 2 left!

0

38

Cub Cadet 712-04064

Nut, Hx Insert Flange Lk. 5/16-18. Replaces 712-3010 & 712-0429

$4.49

$

In Stock, Qty 20+

0
