3410 (990755) - Simplicity Landlord Garden Tractor FRAME, HOOD, GRILL & INSTRUMENT PANEL Parts Diagram

Landlord Garden Tractor

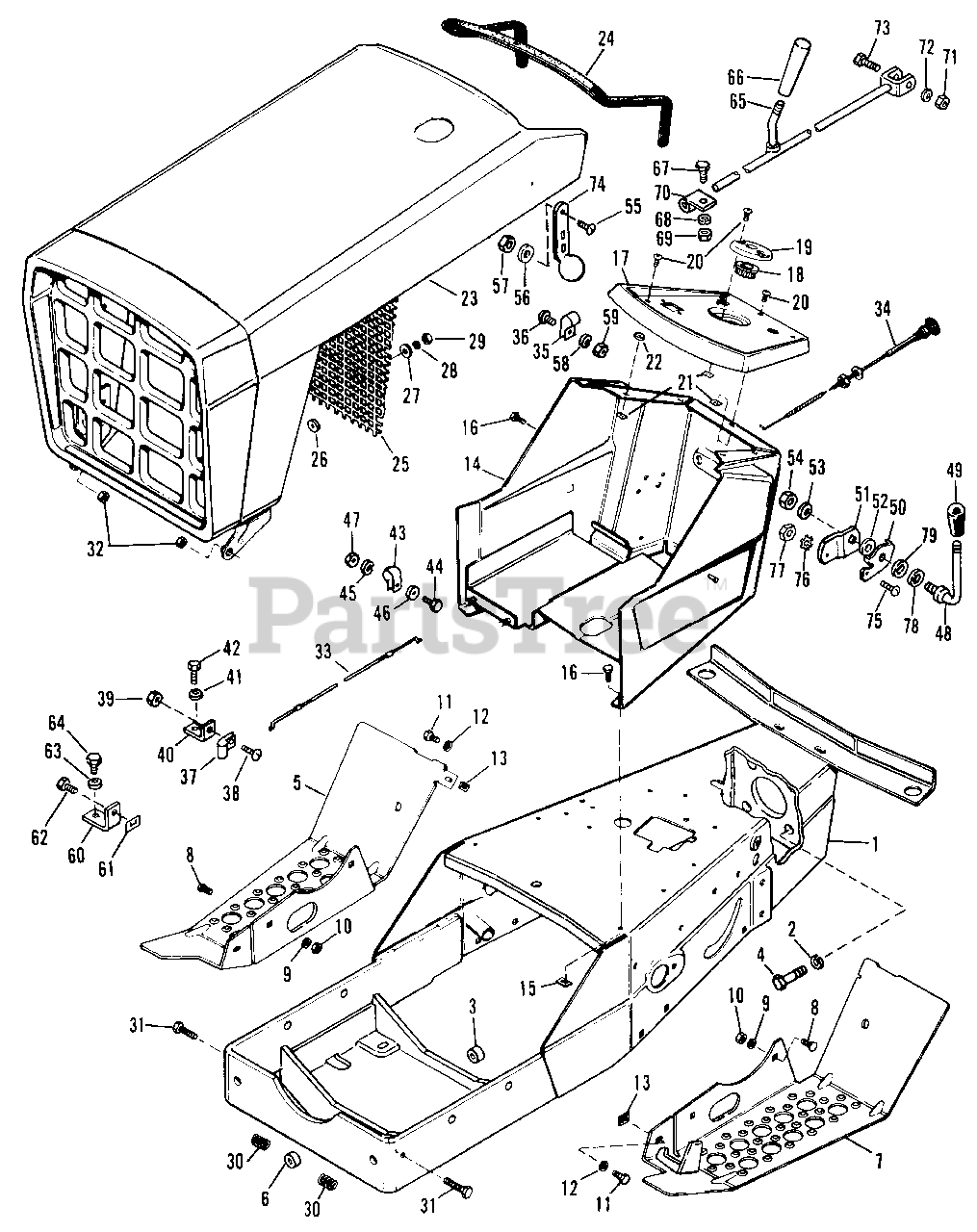

FRAME, HOOD, GRILL & INSTRUMENT PANEL Parts Diagram

  • Title

1

Simplicity 174095

Frame Assembly

$

$

Not available

2

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

3

Simplicity 2154289SM

Bushing

$12.99

$

Usually ships in 2-12 days

0

4

Simplicity 705039

Hex Capscrew, 7/16"-14 N.C. x 1-1/2"

$6.99

$

In Stock, only 2 left!

0

5

Simplicity 171271

Foot Rest, R.H.

$

$

Not available

6

Simplicity 2174662SM

Bushing

$58.99

$

Usually ships in 2-12 days

0

7

Simplicity 176628

Foot Rest, L.H.

$

$

Not available

8

Simplicity 2702015

Carriage Bolt, 5/16"-16 N.C. x 3/4"

$

$

Not available

9

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

10

Simplicity 2717001

Full Hex Nut, 5/16"-18 N.C.

$

$

Not available

11

Simplicity 2705017

Hex Capscrew, 5/16"-18 N.C. x 3/4"

$

$

Not available

12

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

13

Simplicity 2718024

Nut, Tinnerman, 5/16"-18 N.C.

$

$

Not available

14

Simplicity 171266

Dash Assembly

$

$

Not available

15

Simplicity 718038

Nut, Tinnerman

$

$

Not available

16

Simplicity 2714031

Hex Head Self Tapping Screw, No. 14 AB x 3/4"

$

$

Not available

17

Simplicity 171231

Panel, Instrument

$

$

Not available

18

Simplicity 2157077SM

Bushing, Steering

$140.99

$

Usually ships in 2-12 days

0

19

Simplicity 2172008SM

Plate, Steering Adj.
(Superseded to 2172008ASM)

$38.99

$

Usually ships in 2-12 days

0

20

Simplicity 2711002

Round Head Phillips Screw, 1/4"-20 N.C. x 1/2"

$

$

Not available

21

Simplicity 2718043

Nut, Tinnerman, 1/4"-20 N.C.

$

$

Not available

22

Simplicity 2719007

Plain Washer

$

$

Not available

23

Simplicity 171226

Grille & Hood Assembly

$

$

Not available

24

Simplicity 2172935

Molding, Hood

$

$

Not available

25

Simplicity 171232

Screen, Grille

$

$

Not available

26

Simplicity 2171804

Washer

$

$

Not available

27

Simplicity 2172742

Washer

$

$

Not available

28

Simplicity 2721003

Lockwasher, Shakeproof No. 10

$

$

Not available

29

Simplicity 2717023

Full Hex Nut, No. 10-24 N.F.

$

$

Not available

30

Simplicity 1729278SM

Spring

$2.49

$

Usually ships in 2-12 days

0

31

Simplicity 2705009

Hex Capscrew, 3/8"-16 N.C. x 1-1/2"

$

$

Not available

32

Simplicity 2717510

Hex Lock Nut, Center, 3/8"-16 N.C.

$

$

Not available

33

Simplicity 2171355SM

Throttle Control

$42.99

$

Usually ships in 2-12 days

0

34

Simplicity 2171334

Choke Control

$

$

Not available

35

Simplicity 2158475SM

Clip, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

36

Simplicity 714005

Self Tapping Rd. Hd. Screw, No. 10-24 N.C. x 1/2"

$

$

Not available

37

Simplicity 2158475SM

Clip, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

38

Simplicity 710004

Rd. Hd. Machine Screw, No. 10-32 N.F. x 3/8"

$3.99

$

In Stock, only 1 left!

0

39

Simplicity 2717007

Full Hex Nut, No. 10-32 N.F.

$

$

Not available

40

Simplicity 157315

Bracket, Throttle Cable

$

$

Not available

41

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

42

Simplicity 2714021

Self Tapping Rec. Hex Hd. Screw, 1/4"-20 N.C. x 5/8"

$

$

Not available

43

Simplicity 122186

Clamp

$

$

Not available

44

Simplicity 2705015

Hex Capscrew, 1/4"-20 N.C. x 5/8"

$

$

Not available

45

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

46

Simplicity 2719006

Plain Washer, 1/4" Std.

$

$

Not available

47

Simplicity 2717005

Full Hex Nut, 1/4"-20 N.C.

$

$

Not available

48

Simplicity 2172040

Throttle Handle

$

$

Not available

49

Simplicity 2172038SM

Knob
(Superseded to 1732470SM)

$19.99

$

In Stock, only 1 left!

0

50

Simplicity 2103280SM

Stop Throttle

$

$

Not available

51

Simplicity 2158424

Arm Throttle

$

$

Not available

52

Simplicity 2159107SM

Washer

$6.99

$

Usually ships in 2-12 days

0

53

Simplicity 2721602

Washer Lock Dished Type, 3/8"

$

$

Not available

54

Simplicity 2717510

Full Lock Hex Nut, 3/8"-16 N.C.

$

$

Not available

55

Simplicity 2711003

Phillips Truss Head Screw, No. 10-32 x 1/2"

$

$

Not available

56

Simplicity 2171804

Washer

$

$

Not available

57

Simplicity 2717507

Gripco Lock Nut, No. 10-32

$

$

Not available

58

Simplicity 720007

Lockwasher, No. 12

$

$

Not available

59

Simplicity 2717023

Full Hex Nut, No. 10-24

$

$

Not available

60

Simplicity 2158611

Bracket, Pulley Guard

$

$

Not available

61

Simplicity 2718043

Nut, Tinnerman

$

$

Not available

62

Simplicity 2715057

Hex Capscrew, 1/4"-20 x 3/4"

$

$

Not available

63

Simplicity 2719007

Plain Washer, 3/16"

$

$

Not available

64

Simplicity 2714032

Hex Head Screw, No. 14 x 1-1/4"

$

$

Not available

65

Simplicity 171559

Shifter Rod Assembly

$

$

Not available

66

Simplicity 2164180

Handle

$

$

Not available

67

Simplicity 2715026

Hex Capscrew, 5/16"-18 x 1-1/2"

$

$

Not available

68

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

69

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

70

Simplicity 157020

Shift Rod Guide Assembly

$

$

Not available

71

Simplicity 2717005

Full Hex Nut, 1/4"-20

$

$

Not available

72

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

73

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

74

Simplicity 2171600SM

Hood Strap

$7.99

$

In Stock, Qty 20+

0

75

Simplicity 710002

Round Head Machine Screw, No. 10-32 x 1/2"

$

$

Not available

76

Simplicity 2721003

Lockwasher, Shakeproof No. 10

$

$

Not available

77

Simplicity 2717007

Full Hex Nut, No. 10-32

$

$

Not available

78

Simplicity 2101025SM

Washer

$4.49

$

Usually ships in 2-12 days

0

79

Simplicity 2156116

Washer

$

$

Not available
