3410 XP (31AH8ER6B66) - Troy-Bilt Arctic Storm 34" Snow Blower (2023) Auger Housing Parts Diagram

Arctic Storm 34" Snow Blower

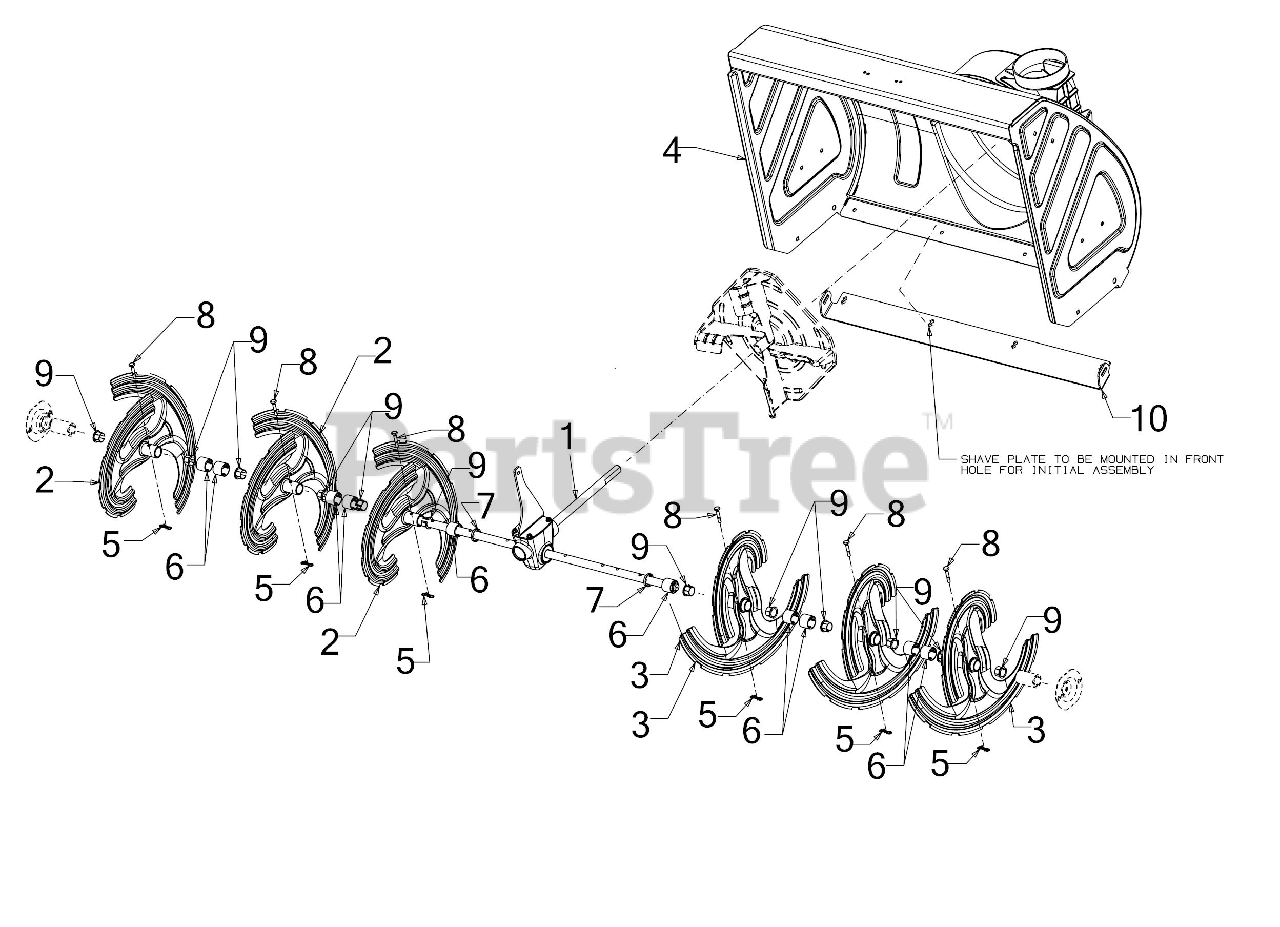

Auger Housing Parts Diagram

  • Title

1

Troy-Bilt 918-07237

34" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$510.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-05142

14" AUGER SPIRAL ASSEMBLY (RH)

Note: (Choose color when ordering)

Variations

684-05142-0637

Troy-Bilt 684-05142-0637

SPRL ASM-RH AUGER - POWDER BLACK (0637)

$93.99

$

Usually ships in 3-6 days

0

684-05142-0638

Troy-Bilt 684-05142-0638

SPRL ASM-RH AUGER - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

684-05142-4028

Troy-Bilt 684-05142-4028

SPRL ASM-RH AUGER - SEARS YELLOW (4028)

$75.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-05143

14" AUGER SPIRAL ASSEMBLY (LH)

Note: (Choose color when ordering)

Variations

684-05143-0637

Troy-Bilt 684-05143-0637

SPRL ASM-LH AUGER - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

684-05143-0638

Troy-Bilt 684-05143-0638

SPRL ASM-LH AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

684-05143-4028

Troy-Bilt 684-05143-4028

SPRL ASM-LH AUGER - SEARS YELLOW (4028)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-05169

30" AUGER HOUSING ASSEMBLY

Note: (Choose color when ordering)

Variations

684-05169-4033

Troy-Bilt 684-05169-4033

HSG ASM-AUGER 34" - FLINT MICA (4033)

$615.99

$

Usually ships in 3-6 days

0

$615.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 6

0

7

Troy-Bilt 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$7.49

$

In Stock, only 2 left!

0

8

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 490-241-C063

Cub Cadet SHEAR PINS (2X SNOW)

Note: Retail Packaged Part

$12.99

$

In Stock, Qty 9

0

8

Troy-Bilt OEM-738-04124

SHEAR PINS QTY 4
(Superseded to 738-04124A)

Note: Retail Packaged Part

$1.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 741-0493C

FLANGE BUSHING

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 790-00731

33.50" SHAVE PLATE

Note: (Choose color when ordering)

Variations

790-00731-0606

Troy-Bilt 790-00731-0606

PLATE-SHAVE 33.50 - MAJESTIC ORANGE (0606)

$79.99

$

In Stock, only 2 left!

0

790-00731-0691

Troy-Bilt 790-00731-0691

Shave Plate, 33.50" - BLACK JACK (0691)

$79.99

$

In Stock, only 2 left!

0

790-00731-4021

Troy-Bilt 790-00731-4021

PLATE-SHAVE 33.50 - CUB YELLOW 2 (4021)

$79.99

$

In Stock, only 2 left!

0

790-00731-4033

Troy-Bilt 790-00731-4033

PLATE-SHAVE 33.50 - FLINT MICA (4033)

$79.99

$

In Stock, only 2 left!

0

$74.99

$

Usually ships in 3-6 days

0
