3414 H (990980) - Simplicity Baron Lawn Tractor, 14hp POWER TAKE-OFF Parts Diagram

Baron Lawn Tractor, 14hp

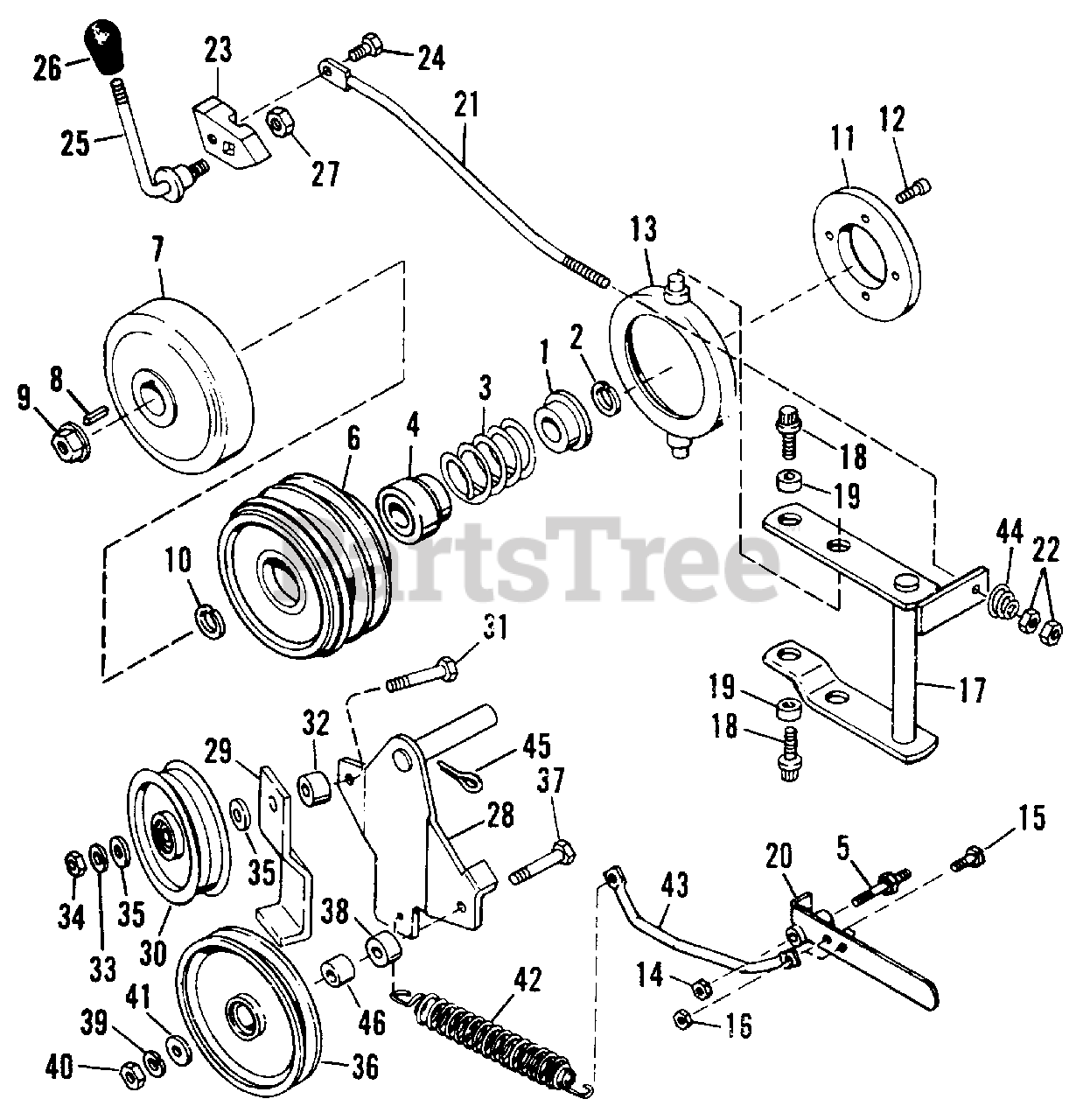

POWER TAKE-OFF Parts Diagram

  • Title

1

Simplicity 2173965

Inner Spring Guide

$

$

Not available

2

Simplicity 2172206SM

Ring, Retaining

$4.99

$

In Stock, Qty 17

0

3

Simplicity 2171772SM

Spring

$39.99

$

Usually ships in 2-12 days

0

4

Simplicity 2174859

Bushing Assembly

$

$

Not available

5

Simplicity 2157273SM

Stud

$25.99

$

Usually ships in 2-12 days

0

6

Simplicity 2173956

Pulley

$

$

Not available

7

Simplicity 2174862SM

Clutch Plate Assembly

$

$

Not available

8

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

9

Simplicity 2718063

Washer Base Lock Nut

$

$

Not available

10

Simplicity 2172206SM

Ring, Retaining

$4.99

$

In Stock, Qty 17

0

11

Simplicity 2173957SM

Brake Disc

$38.99

$

Usually ships in 2-12 days

0

12

Simplicity 2715162

Socket Hd. Screw, 1/4"-20 x 5/8"

$

$

Not available

13

Simplicity 1650906SM

Support Brake Assembly
(Superseded to 1650906ASM)

$402.99

$

Usually ships in 2-12 days

0

14

Simplicity 2717519

Full Hex Lock Nut, 7/16"-14

$

$

Not available

15

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

16

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18

$

$

Not available

17

Simplicity 2174451

Pivot Assembly

$

$

Not available

18

Simplicity 2715186

Thread Forming Screw, 5/16"-18 x 3/4"

$

$

Not available

19

Simplicity 2171371SM

Bushing

$9.49

$

Usually ships in 2-12 days

0

20

Simplicity 2164155SM

Handle Assembly

$102.99

$

Usually ships in 2-12 days

0

21

Simplicity 173988

Control Rod

$

$

Not available

22

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

23

Simplicity 2173991SM

Lever

$

$

Not available

24

Simplicity 2174686

Special Capscrew, 5/16" UNC-2A x 7/8" Grade 5

$

$

Not available

25

Simplicity 2174664

Handle, Clutch PTO

$

$

Not available

26

Simplicity 2172038SM

Knob
(Superseded to 1732470SM)

$19.99

$

In Stock, only 1 left!

0

27

Simplicity 2717510

Full Hex Lock Nut, 3/8"-16

$

$

Not available

28

Simplicity 2174455SM

Pivot Arm Assembly

$

$

Not available

29

Simplicity 170289

Belt Stop

$

$

Not available

30

Simplicity 2105306

Pulley

$

$

Not available

31

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2"

$

$

Not available

32

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, Qty 12

0

33

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

34

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

35

Simplicity 2719002

Plain Washer, 5/16 "

$

$

Not available

36

Simplicity 2173982

Idler Pulley

$

$

Not available

37

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2"

$

$

Not available

38

Simplicity 2172329SM

Spacer

$

$

Not available

39

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

40

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

41

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

42

Simplicity 2157262SM

Spring Tension

$33.99

$

In Stock, only 1 left!

0

43

Simplicity 2164047

Spring Tension Rod

$

$

Not available

44

Simplicity 2175316

Conical Spring

$

$

Not available

45

Simplicity 2722007

Cotter Pin, 3/16" x 1-1/2"

$

$

Not available

46

Simplicity 2170291

Spacer

$

$

Not available
