3414 S (990979) - Simplicity Baron Lawn Tractor BEVEL GEAR HOUSING Parts Diagram

Baron Lawn Tractor

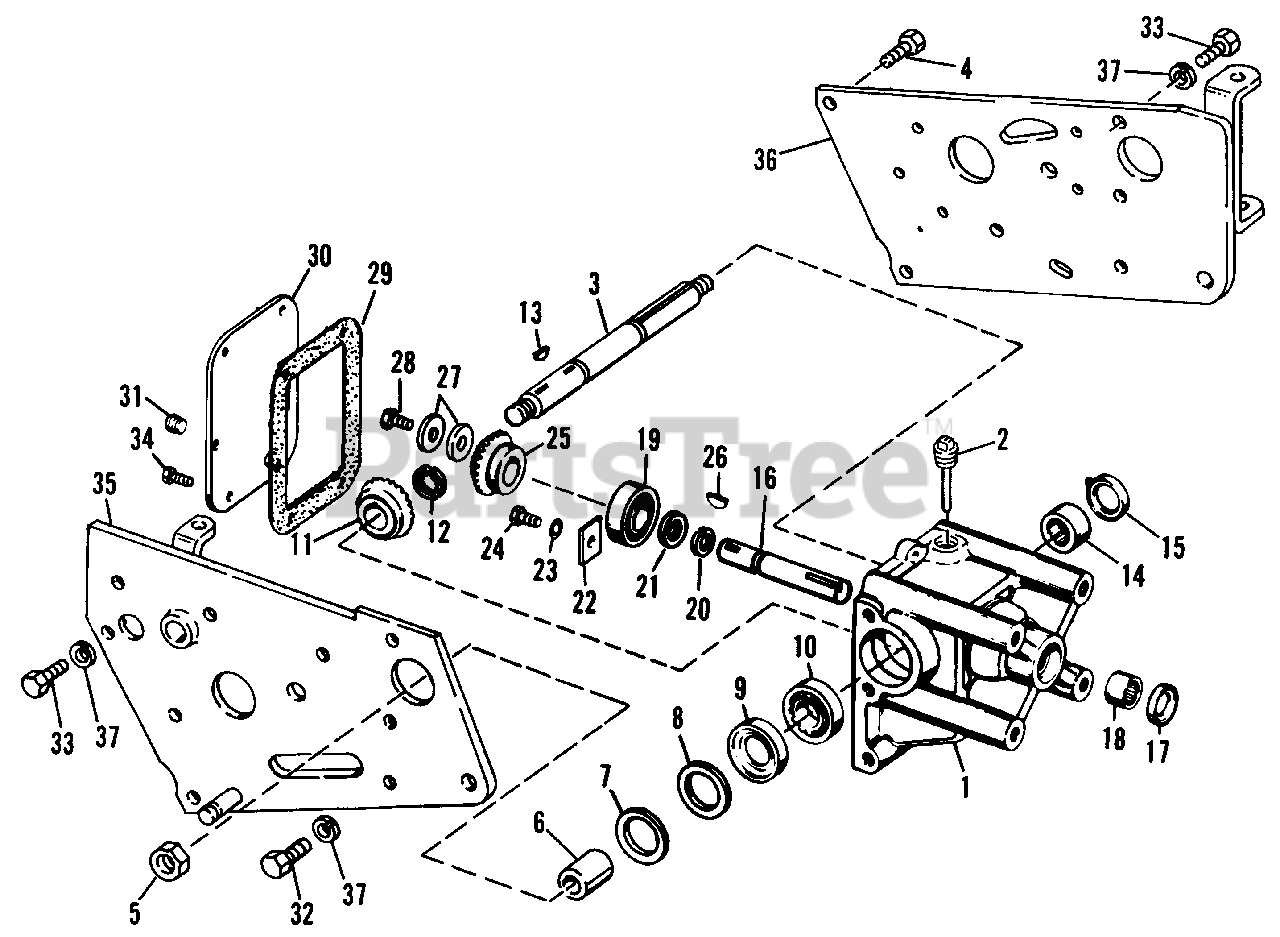

BEVEL GEAR HOUSING Parts Diagram

  • Title

1

Simplicity 1656877SM

Bevel Gear Housing, w/Bearings

$359.99

$

In Stock, only 1 left!

0

2

Simplicity 2178105SM

Plug Assy., Oil Fill

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 2173966

Driven Shaft

$

$

Not available

4

Simplicity 2715092

Hex Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available

5

Simplicity 2717517

Hex Jam Nut

$

$

Not available

6

Simplicity 2171792SM

Spacer

$37.99

$

Usually ships in 2-12 days

0

7

Simplicity 2171790SM

Shim (As Required)

$16.99

$

In Stock, Qty 6

0

8

Simplicity 2171791SM

Shim

$19.99

$

In Stock, only 1 left!

0

9

Simplicity 1685088SM

Oil Seal

$34.99

$

In Stock, only 1 left!

0

10

Simplicity 2172256SM

Ball Bearing

$68.99

$

In Stock, only 2 left!

0

11

Simplicity 2171796SM

Bevel Driven Gear

$262.99

$

In Stock, only 1 left!

0

12

Simplicity 2172206SM

Retaining Ring

$4.99

$

In Stock, Qty 17

0

13

Simplicity 2725003

Key

$

$

Not available

14

Simplicity 2154279SM

Needle Bearing

$35.99

$

In Stock, only 3 left!

0

15

Simplicity 2118117SM

Oil Seal

$13.99

$

In Stock, only 2 left!

0

16

Simplicity 2172750SM

Drive Shaft

$

$

Not available

17

Simplicity 2118117SM

Oil Seal

$13.99

$

In Stock, only 2 left!

0

18

Simplicity 2154279SM

Needle Bearing

$35.99

$

In Stock, only 3 left!

0

19

Simplicity 2172256SM

Ball Bearing

$68.99

$

In Stock, only 2 left!

0

20

Simplicity 2172206SM

Retaining Ring

$4.99

$

In Stock, Qty 17

0

21

Simplicity 2172753SM

Washer

$10.99

$

Usually ships in 2-12 days

0

22

Simplicity 2154040SM

Bearing Clamp Plate

$29.99

$

In Stock, only 1 left!

0

23

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

24

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

25

Simplicity 2172752SM

Bevel Driven Gear

$271.99

$

In Stock, only 1 left!

0

26

Simplicity 2725003

Key

$

$

Not available

27

Simplicity 2177649SM

Washer, Compression

$9.49

$

In Stock, Qty 5

0

28

Simplicity 2154281

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

29

Simplicity 2154282SM

Gasket

$11.99

$

In Stock, only 4 left!

0

30

Simplicity 2178104

Housing Cover Assembly

$

$

Not available

31

Simplicity 2726002

Pipe Plug

$

$

Not available

32

Simplicity 2715136

Hex Capscrew, 7/16"-14 x 1"

$

$

Not available

33

Simplicity 2715092

Hex Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available

34

Simplicity 2707003

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

35

Simplicity 175127

Right Hand Side Plate Assy.

$

$

Not available

36

Simplicity 174829

Left Hand Side Plate Assy.

$

$

Not available

37

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available
