3414 S (990979) - Simplicity Baron Lawn Tractor BRAKE AND LEVER GROUP Parts Diagram

Baron Lawn Tractor

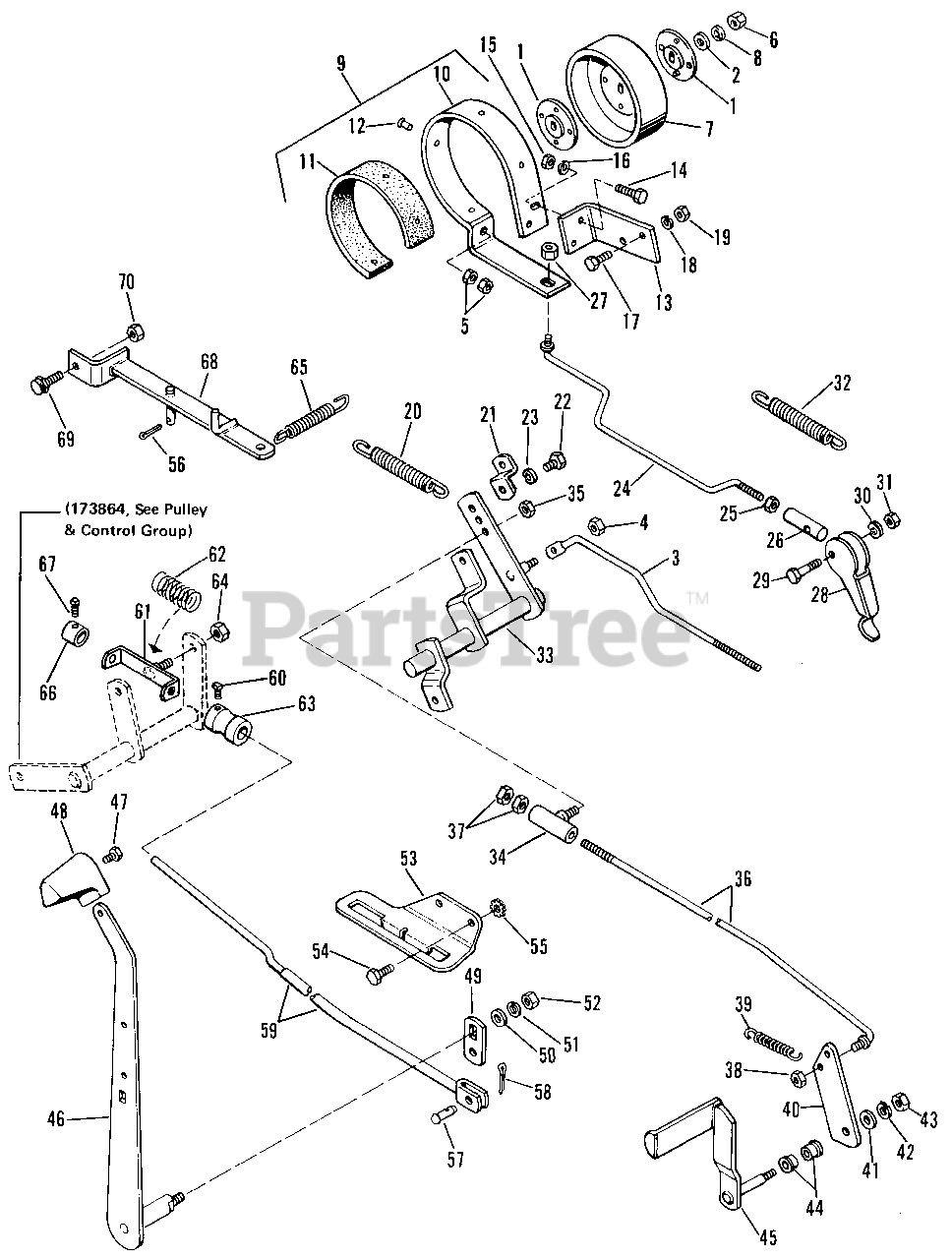

BRAKE AND LEVER GROUP Parts Diagram

  • Title

1

Simplicity 2158196SM

Special Washer

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

3

Simplicity 172722

Brake Rod

$

$

Not available

4

Simplicity 2717511

Full Hex Nut, 5/16"-18

$

$

Not available

5

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

6

Simplicity 2717022

Full Hex Nut, 7/16"-14

$

$

Not available

7

Simplicity 2157282

Brake Drum

$

$

Not available

8

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

9

Simplicity 2171497

Brake Band & Lining Assembly

$

$

Not available

10

Simplicity 1679359SM

Brake Band

$59.99

$

Usually ships in 2-12 days

0

11

Simplicity 2154133

Brake Lining

$

$

Not available

12

Simplicity 724501

Rivet No. 7 x 5/16"

$

$

Not available

13

Simplicity 164113

Brake Band Bracket

$

$

Not available

14

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1 "

$

$

Not available

15

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

16

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

17

Simplicity 2705030

Hex Capscrew, 1/4"-20 x 3/4"

$

$

Not available

18

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

19

Simplicity 2717005

Full Hex Nut, 1/4"-20

$

$

Not available

20

Simplicity 2174896SM

Spring

$20.99

$

In Stock, only 2 left!

0

21

Simplicity 174893

Spring Clip

$

$

Not available

22

Simplicity 2705042

Hex Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available

23

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

24

Simplicity 174708

Parking Brake Rod Assembly

$

$

Not available

25

Simplicity 2717508

Full Hex Lock Nut,5/16"-18

$

$

Not available

26

Simplicity 2171994SM

Rod End

$15.99

$

In Stock, only 1 left!

0

27

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

28

Simplicity 2172108SM

Parking Brake Lever

$

$

Not available

29

Simplicity 2715062

Hex Capscrew, 1/4"-20 x 1-1/4"

$

$

Not available

30

Simplicity 721702

Double Lockwasher, 1/4"

$

$

Not available

31

Simplicity 2717509

Full Hex Lock Nut, 1/4"-20

$

$

Not available

32

Simplicity 2121037SM

Spring

$

$

Not available

33

Simplicity 172724

Pivot Lever Assembly

$

$

Not available

34

Simplicity 2164094SM

Guide Rod Assembly

$45.99

$

Usually ships in 2-12 days

0

35

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18

$

$

Not available

36

Simplicity 174105

Clutch & Brake Rod Assy.

$

$

Not available

37

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

38

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18

$

$

Not available

39

Simplicity 2159106SM

Tension Spring
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

40

Simplicity 2157300SM

Arm-Foot Pedal

$13.99

$

Usually ships in 2-12 days

0

41

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

42

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

43

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

44

Simplicity 2108419

Bushing

$

$

Not available

45

Simplicity 2171178

Foot Pedal Assembly

$

$

Not available

46

Simplicity 171072

Variable Planetary Lever Assy.

$

$

Not available

47

Simplicity 2714012

Hex Self Forming Thread Screw, 1/4"-20 x 7/8"

$

$

Not available

48

Simplicity 2171165

Knob

$

$

Not available

49

Simplicity 164123

Link

$

$

Not available

50

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

51

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

52

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

53

Simplicity 174473

Quadrant

$

$

Not available

54

Simplicity 172157

Special Screw

$

$

Not available

55

Simplicity 2721001

Lockwasher, Shakeproof, 5/16"

$

$

Not available

56

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

57

Simplicity 1708298SM

Pin

$

$

Not available

58

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

59

Simplicity 173876

Rod Assembly

$

$

Not available

60

Simplicity 2713001

Sq. Hd. Set Screw, 1/4"-20 x 3/8" Grade 8

$

$

Not available

61

Simplicity 175335

Rod Guide Assembly

$

$

Not available

62

Simplicity 162065

Spring

$

$

Not available

63

Simplicity 174855

Brake Detent

$

$

Not available

64

Simplicity 2717515

Full Hex Lock Nut, 3/8"-24

$

$

Not available

65

Simplicity 2175290

Tension Spring

$

$

Not available

66

Simplicity 105201

Set Collar

$

$

Not available

67

Simplicity 2713001

Sq. Hd. Set Screw, 1/4"-20 x 3/8" Grade 8

$

$

Not available

68

Simplicity 174852

Brake Lever Assembly

$

$

Not available

69

Simplicity 2174854SM

Brake Pad Assembly

$

$

Not available

70

Simplicity 2717011

Hex Jam Nut, 5/16"-18

$

$

Not available
