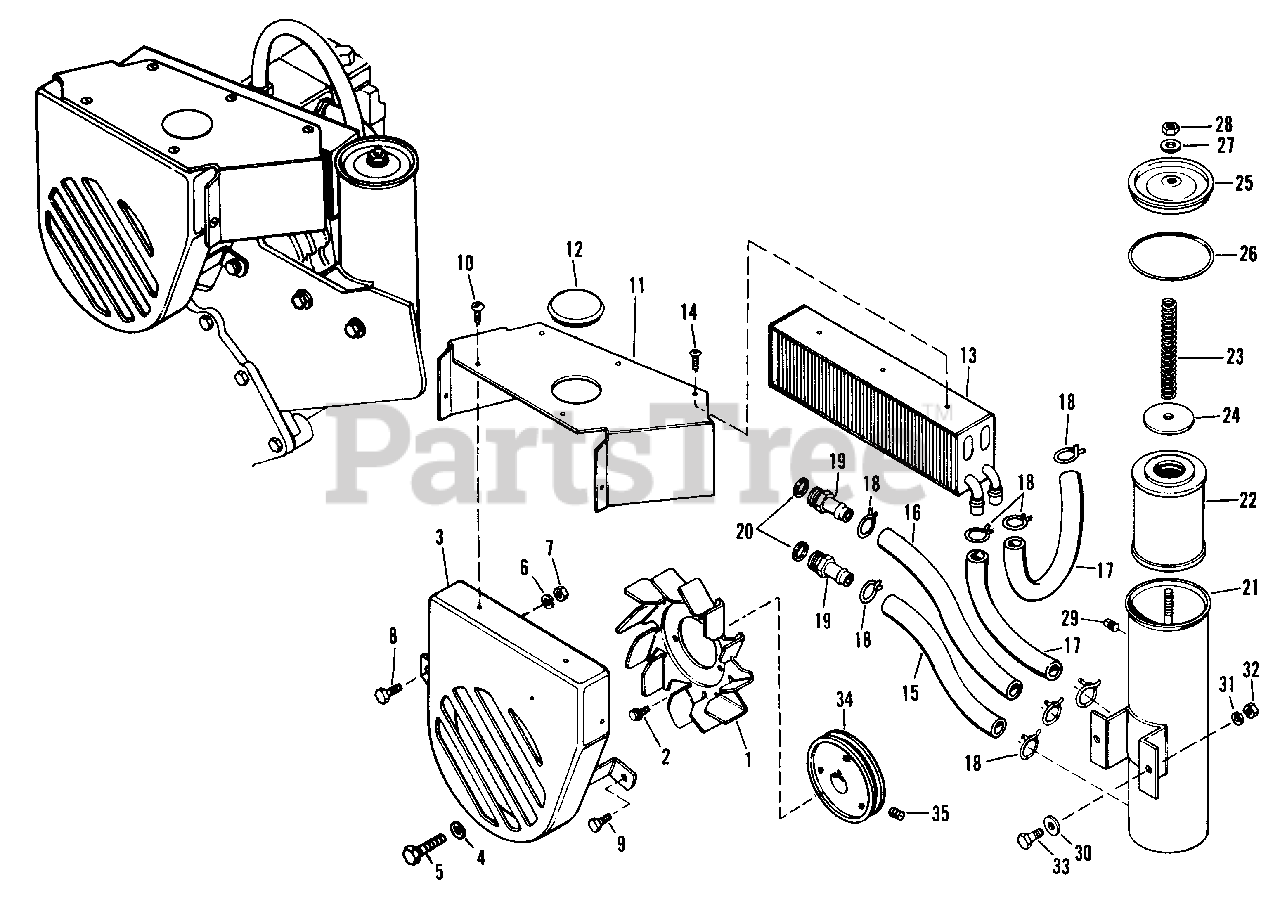

3415 H (990759) - Simplicity Sovereign Garden Tractor, 15hp HYDROSTATIC COOLING GROUP Parts Diagram

Sovereign Garden Tractor, 15hp

HYDROSTATIC COOLING GROUP Parts Diagram

  • Title

1

Simplicity 2166022SM

Pulley Fan

$115.99

$

Usually ships in 2-12 days

0

2

Simplicity 2715090

Hex Screw, Washer Hd.

$

$

Not available

3

Simplicity 2166114

Fan Shroud Assy.

$

$

Not available

4

Simplicity 2720002

Lock Washer

$

$

Not available

5

Simplicity 2705031

Hex Cap Screw, 3/8"-16 x 2"

$

$

Not available

6

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

7

Simplicity 2717001

Full Hex Nut, 5/16"

$

$

Not available

8

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

9

Simplicity 714026

Hex Screw, Thd.

$

$

Not available

10

Simplicity 2714004

Self Tapping Screw, No. 10 x 3/8"

$

$

Not available

11

Simplicity 166134

Cooler Deflector

$

$

Not available

12

Simplicity 2166165

Caplug

$

$

Not available

13

Simplicity 166135

Oil Cooler

$

$

Not available

14

Simplicity 710002

Rd. Hd. Mach. Screw, No. 10-32 x 1/2"

$

$

Not available

15

Simplicity 2166136SM

Hydraulic Hose

$6.99

$

Usually ships in 2-12 days

0

16

Simplicity 2166137SM

Hydraulic Hose

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 2166138

Hydraulic Hose

$

$

Not available

18

Simplicity 2166044

Hose Clamp

$

$

Not available

19

Simplicity 166139

Beaded Insert

$

$

Not available

20

Simplicity 2166024

"O" Ring

$

$

Not available

21

Simplicity 166140

Reservoir Assy.

$

$

Not available

22

Simplicity 2166147SM

Filter Element

$146.99

$

In Stock, only 1 left!

0

23

Simplicity 166171

Spring

$

$

Not available

24

Simplicity 2166150

Washer

$

$

Not available

25

Simplicity 166080

Reservoir Cover

$

$

Not available

26

Simplicity 166020

"O" Ring

$

$

Not available

27

Simplicity 166161

Nylon Washer

$

$

Not available

28

Simplicity 2717525

Elastic Stop Nut

$

$

Not available

29

Simplicity 726253

Pipe Plug, 1/4"

$

$

Not available

30

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

31

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

32

Simplicity 2717001

Full Hex Nut, 5/16"-18"

$

$

Not available

33

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

34

Simplicity 2166173SM

Driven Pulley
(Superseded to 2166173ASM)

$117.99

$

Usually ships in 2-12 days

0

35

Simplicity 2713503

Cup Pt. Socket Hd. Set Screw, 5/16"-18 x 5/16"

$

$

Not available
