3416 H (990871) - Simplicity Sovereign Garden Tractor, 16hp HYDROSTATIC CONTROL GROUP - Diagram 2 Parts Diagram

Sovereign Garden Tractor, 16hp

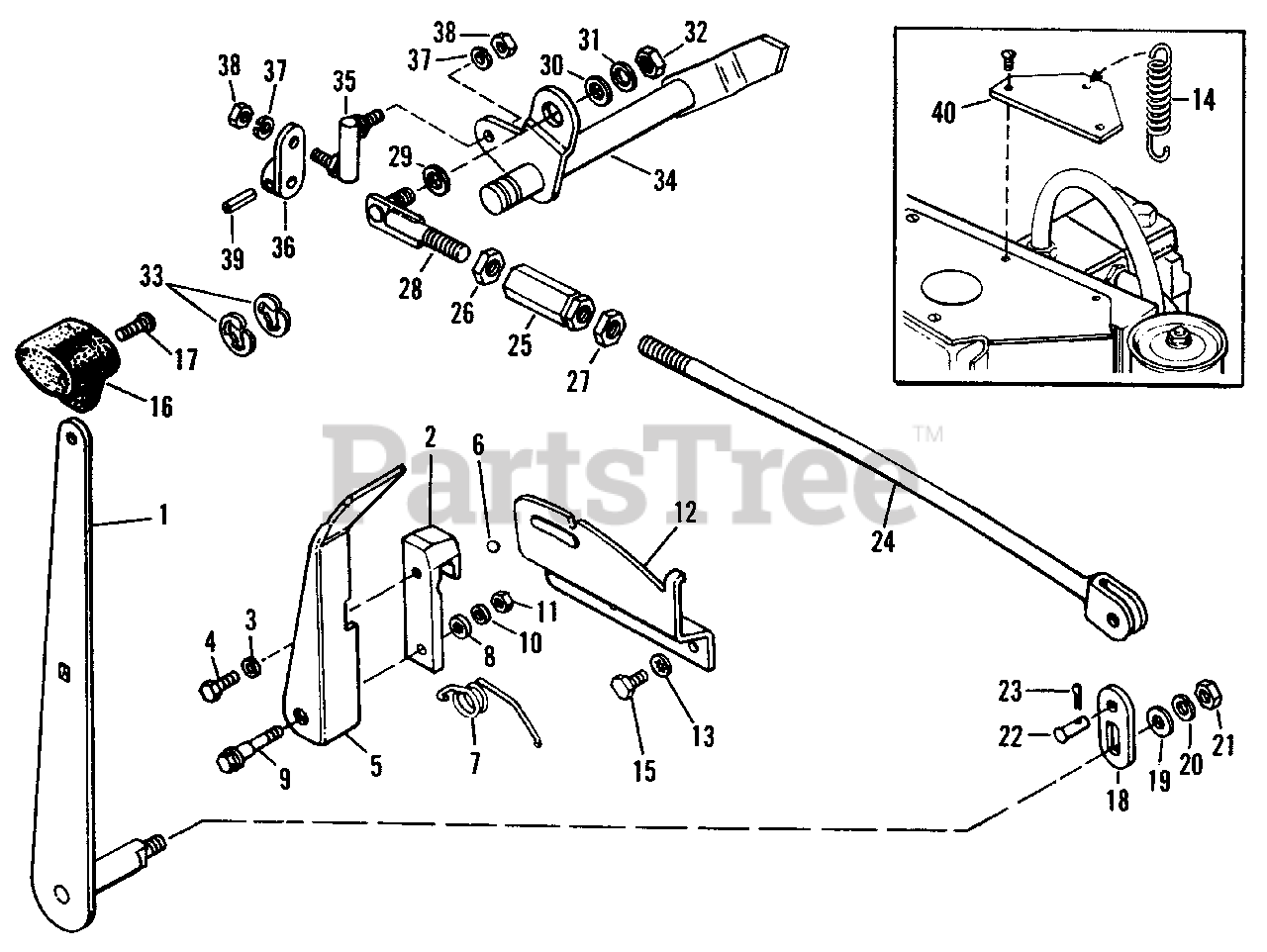

HYDROSTATIC CONTROL GROUP - Diagram 2 Parts Diagram

  • Title

1

Simplicity 171072

Lever Assembly

$

$

Not available

2

Simplicity 171432

Stop Clamp

$

$

Not available

3

Simplicity 2720003

Lockwasher, 1/4" Std.

$

$

Not available

4

Simplicity 2711002

Hex Capscrew, 1/4"-20 N.C. x 1/2"

$

$

Not available

5

Simplicity 171779

Handle

$

$

Not available

6

Simplicity 2166178SM

Shift Ball Handle, 5/16"

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2166047SM

Spring

$

$

Not available

8

Simplicity 166063

Spacer

$

$

Not available

9

Simplicity 2166051SM

Shoulder Bolt

$

$

Not available

10

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

11

Simplicity 2717513

Full Hex Lock Nut, 1/4"-20

$

$

Not available

12

Simplicity 171429

Quadrant

$

$

Not available

13

Simplicity 2721001

Shakeproof Lockwasher, 5/16"

$

$

Not available

14

Simplicity 2107135SM

Spring

$32.99

$

Usually ships in 2-12 days

0

15

Simplicity 172157

Special Screw

$

$

Not available

16

Simplicity 2171165

Handle

$

$

Not available

17

Simplicity 2714012

Screw, Thd. Form, 1/4"-20 x 7/8"

$

$

Not available

18

Simplicity 164123

Link

$

$

Not available

19

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

20

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

21

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

22

Simplicity 1708298SM

Pin

$

$

Not available

23

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

24

Simplicity 171385

Rod Assembly Control, Front

$

$

Not available

25

Simplicity 166088

Turn Buckle

$

$

Not available

26

Simplicity 718046

Full Hex Nut, 7/16"-14 L.H.

$

$

Not available

27

Simplicity 2717022

Full Hex Nut, 7/16"-14 R.H.

$

$

Not available

28

Simplicity 166089

Rod Assy., Rear Control

$

$

Not available

29

Simplicity 166078

Spacer

$

$

Not available

30

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

31

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

32

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

33

Simplicity 2827793SM

"E" Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

34

Simplicity 176314

Shaft Assembly Control

$

$

Not available

35

Simplicity 2166079SM

Ball Joint, Double End

$

$

Not available

36

Simplicity 166092

Link Assembly Control

$

$

Not available

37

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

38

Simplicity 2717002

Full Hex Nut, 5/16"-24

$

$

Not available

39

Simplicity 2723008

Roll Pin, 1/4" x 1-1/4"

$

$

Not available

40

Simplicity 166160

Spring Clip

$

$

Not available
