3416 H (990871) - Simplicity Sovereign Garden Tractor, 16hp REAR LIFT DRAW BAR GROUP Parts Diagram

Sovereign Garden Tractor, 16hp

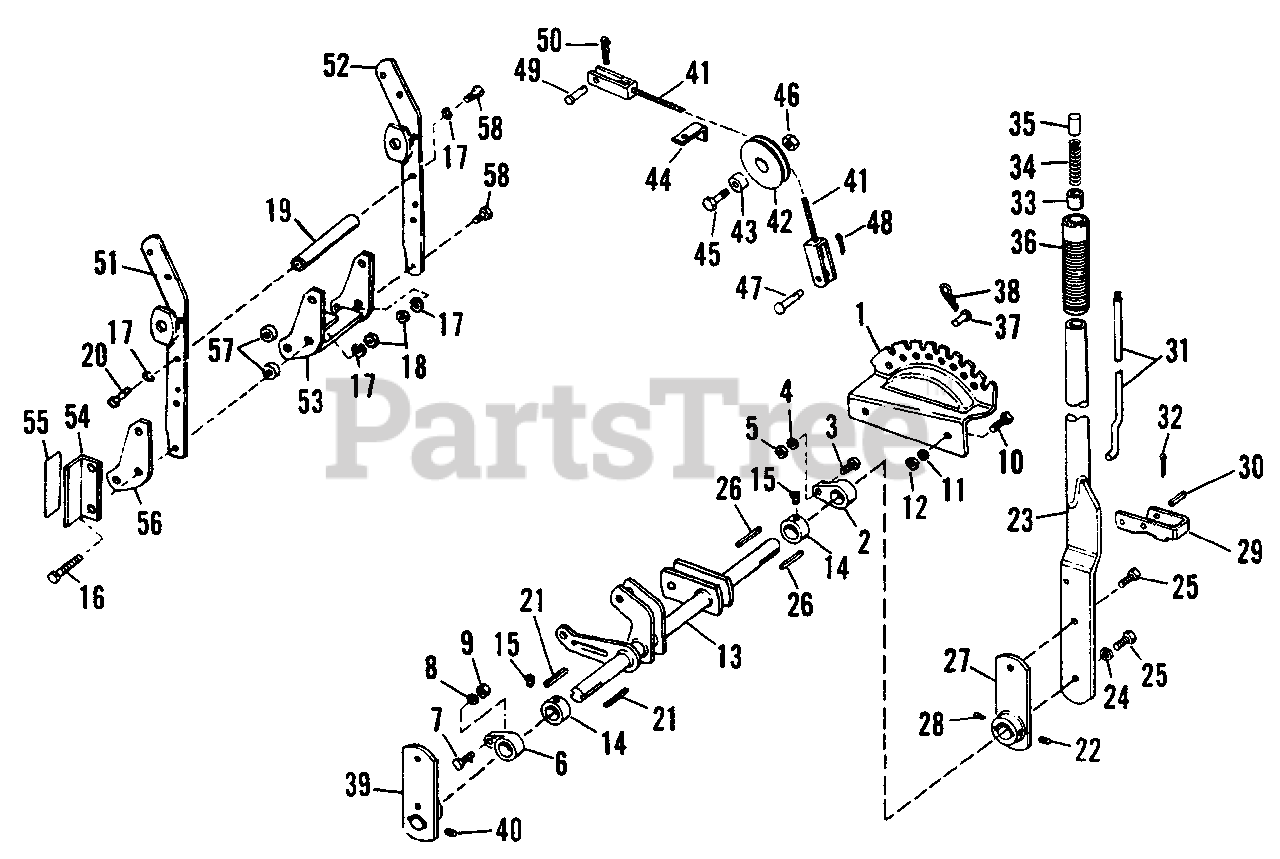

REAR LIFT DRAW BAR GROUP Parts Diagram

  • Title

1

Simplicity 171599

Lift Lever Quadrant

$

$

Not available

2

Simplicity 2170975SM

Lift Lever Bearing

$

$

Not available

3

Simplicity 2715046

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

4

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

5

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

6

Simplicity 2170975SM

Lift Lever Bearing

$

$

Not available

7

Simplicity 2715046

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

8

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

9

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

10

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 3/4"

$

$

Not available

11

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

12

Simplicity 2717003

Full Hex Nut, 3/8"

$

$

Not available

13

Simplicity 174111

Lift Shaft Assembly

$

$

Not available

14

Simplicity 2157624

Set Collar

$

$

Not available

15

Simplicity 2713002

Set Screw Sq. Hd., 5/16"-18 x 3/8"

$

$

Not available

16

Simplicity 705069

Hex Capscrew, 7/16"-14 x 2-1/2"

$9.99

$

Usually ships in 2-12 days

0

17

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

18

Simplicity 2717022

Full Hex Nut, 7/16"-14

$

$

Not available

19

Simplicity 2166110SM

Spacer

$

$

Not available

20

Simplicity 2705047

Hex Capscrew, 7/16"-14 x 1-3/4"

$

$

Not available

21

Simplicity 2157652

Key

$

$

Not available

22

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

23

Simplicity 171589

Lift Lever Assembly

$

$

Not available

24

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

25

Simplicity 2715120

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

26

Simplicity 2157652

Key

$

$

Not available

27

Simplicity 171593

Lift Lever Assy. Inner Section

$

$

Not available

28

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

29

Simplicity 173039

Lift Lever Latch

$

$

Not available

30

Simplicity 723018

Roll Pin, 3/8" x 1-1/4"

$

$

Not available

31

Simplicity 170983

Latch Rod

$

$

Not available

32

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

33

Simplicity 154226

Spacer

$

$

Not available

34

Simplicity 2152006SM

Spring

$

$

Not available

35

Simplicity 2154227SM

Thumb Button

$

$

Not available

36

Simplicity 2156209

Handle Grip
(Superseded to 1713995SM)

$13.99

$

In Stock, only 2 left!

0

37

Simplicity 1708298SM

Pin

$

$

Not available

38

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 7

0

39

Simplicity 2157625SM

Front Lift Lever Assembly

$233.99

$

Usually ships in 2-12 days

0

40

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

41

Simplicity 2174085SM

Cable Assy., Lift

$56.99

$

Usually ships in 2-12 days

0

42

Simplicity 2172725SM

Pulley

$70.99

$

In Stock, only 2 left!

0

43

Simplicity 2157081SM

Spacer

$9.49

$

In Stock, Qty 9

0

44

Simplicity 2174723SM

Cable Guard

$

$

Not available

45

Simplicity 2108418

Screw

$

$

Not available

46

Simplicity 2717524

Hex Jam Lock Nut, 3/8"-16

$

$

Not available

47

Simplicity 1729019SM

Pin
(Superseded to 703982)

$9.49

$

Usually ships in 2-12 days

0

48

Simplicity 2722005

Cotter Pin, 3/32" x 7/8"

$

$

Not available

49

Simplicity 1708298SM

Pin

$

$

Not available

50

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 7

0

51

Simplicity 2166206SM

Arm Assembly

$63.99

$

Usually ships in 2-12 days

0

52

Simplicity 2166072SM

Arm Assembly

$66.99

$

Usually ships in 2-12 days

0

53

Simplicity 2166074SM

Draw Bar Assembly

$

$

Not available

54

Simplicity 166198

Plate, Decal

$

$

Not available

55

Simplicity 176299

Film, Shift

$

$

Not available

56

Simplicity 2166075SM

Draw Plate

$

$

Not available

57

Simplicity 166076

Spacer

$

$

Not available

58

Simplicity 2705042

Hex Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available
