3416 S (990872) - Simplicity Sovereign Garden Tractor, 16hp REAR WHEELS AND AXLE Parts Diagram

Sovereign Garden Tractor, 16hp

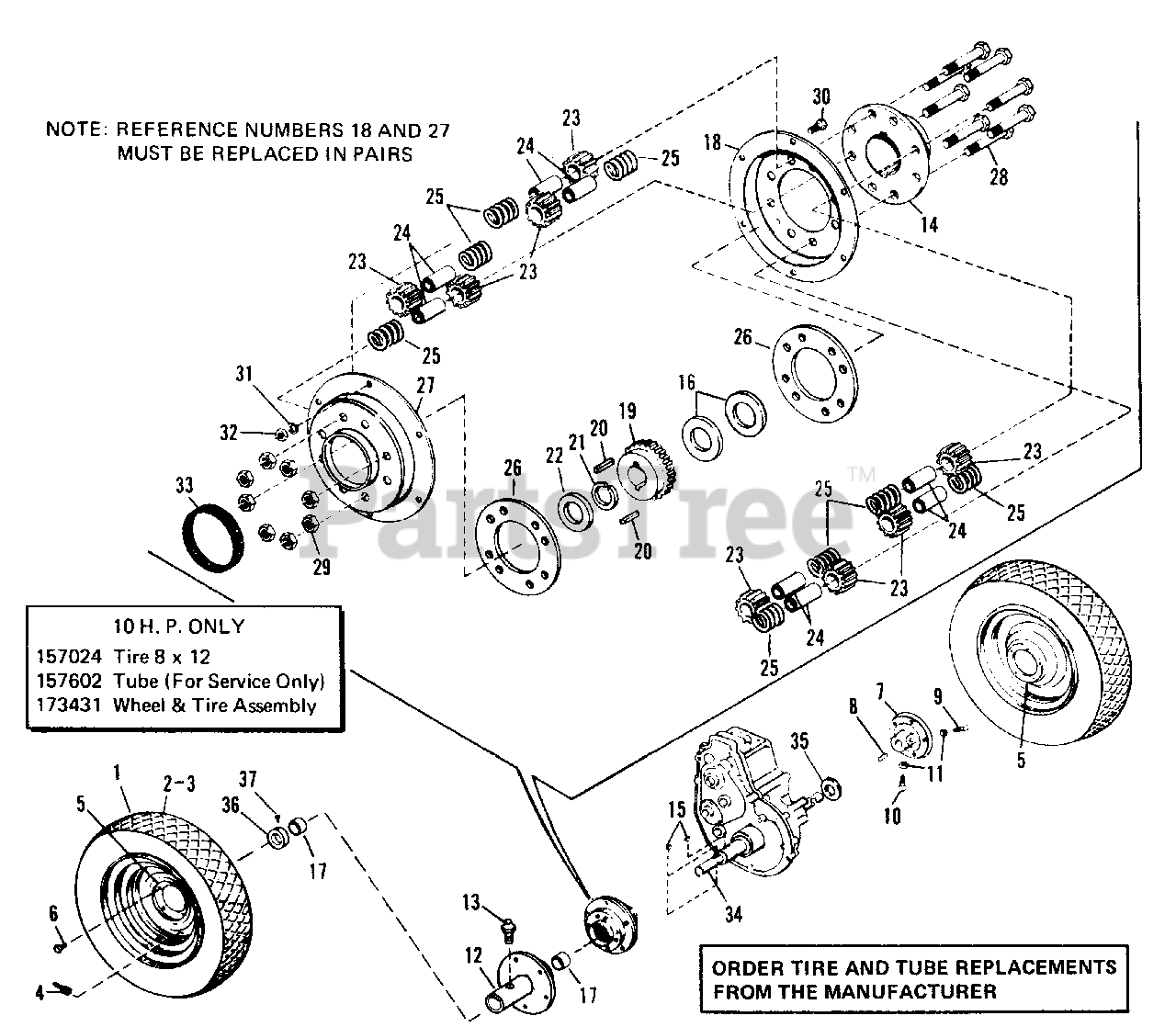

REAR WHEELS AND AXLE Parts Diagram

  • Title

1

Simplicity 173432

Wheel & Tire Assy.

$

$

Not available

2

Simplicity 2157637

Tire 10-1/2" x 12

$

$

Not available

3

Simplicity 2157638SM

Tube

$86.99

$

In Stock, only 2 left!

0

4

Simplicity 2172353SM

Valve Stem
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

5

Simplicity 2173430

Wheel Drive

$

$

Not available

6

Simplicity 1729280SM

Hub Bolt

$6.99

$

In Stock, Qty 16

0

7

Simplicity 2154208SM

Left Hand Wheel Hub

$237.99

$

In Stock, only 1 left!

0

8

Simplicity 2159129

Key

$

$

Not available

9

Simplicity 2715022

Set Screw, 3/8"-16 x 1-1/2"

$

$

Not available

10

Simplicity 2713004

Set Screw, 3/8"-16 x 1"

$

$

Not available

11

Simplicity 2717013

Hex Jam Nut, 3/8"-16

$

$

Not available

12

Simplicity 2176945SM

R.H. Wheel Hub Assy.

$

$

Not available

13

Simplicity 2727004

Grease Fitting

$

$

Not available

14

Simplicity 2164217SM

Differential Carrier

$125.99

$

Usually ships in 2-12 days

0

15

Simplicity 2157120SM

Drive Key

$9.99

$

In Stock, only 1 left!

0

16

Simplicity 2171515

Axle Washer

$

$

Not available

17

Simplicity 2153068SM

Bearing

$43.99

$

Usually ships in 2-12 days

0

18

Simplicity 2171853SM

Differential Cover

$

$

Not available

19

Simplicity 2177041SM

Differential Gear

$180.99

$

In Stock, only 1 left!

0

20

Simplicity 2725501

Hi-Pro Key

$

$

Not available

21

Simplicity 2154291SM

Retaining Ring

$

$

Not available

22

Simplicity 2154277

Axle Washer

$

$

Not available

23

Simplicity 2158579SM

Differential Pinion

$

$

Not available

24

Simplicity 2121083SM

Differential Pinion Spindle

$13.99

$

In Stock, only 1 left!

0

25

Simplicity 2162085SM

Spring

$6.99

$

In Stock, Qty 6

0

26

Simplicity 2171517SM

Ring Spacer

$

$

Not available

27

Simplicity 2103189SM

Differential Cover

$

$

Not available

28

Simplicity 2715043

Hex Capscrew, 3/8"-16 x 2-1/2"

$

$

Not available

29

Simplicity 2717510

Full Lock Hex, Nut, 3/8"-16

$

$

Not available

30

Simplicity 2705015

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

31

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

32

Simplicity 2717005

Full Hex Nut, 1/4"-20

$

$

Not available

33

Simplicity 2121190SM

Differential Cover Seal

$

$

Not available

34

Simplicity 2171526

Rear Axle

$

$

Not available

35

Simplicity 2105050

Washer

$

$

Not available

36

Simplicity 2154065SM

Axle Collar

$113.99

$

Usually ships in 2-12 days

0

37

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8"

$

$

Not available
