342084 - Poulan Lawn Tractor (2007-01) TRANSMISSION Parts Diagram

Lawn Tractor

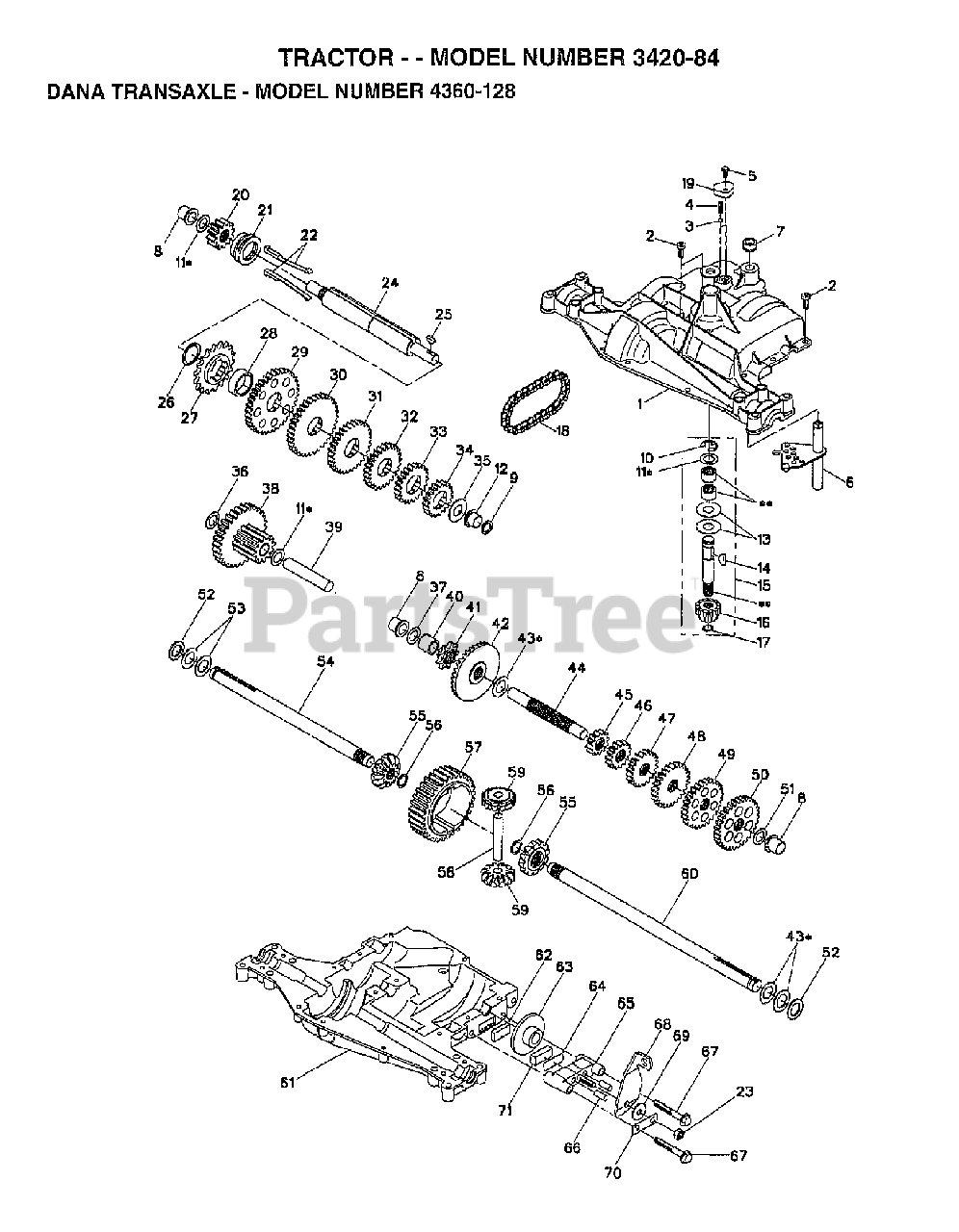

TRANSMISSION Parts Diagram

  • Title

1

Poulan TBD

$

$

Not available

2

Poulan TBD

Note: 2274J

$

$

Not available

3

Poulan 532134400

(Superseded to 532068003)

$

$

Not available

4

Poulan 532105904

SPRING, DETENT

$

$

Not available

5

Poulan TBD

$

$

Not available

6

Poulan 532138235

SHIFTER KIT
(Superseded to 532134788)

$

$

Not available

7

Poulan TBD

$

$

Not available

8

Poulan TBD

$

$

Not available

9

Poulan 532148269

$

$

Not available

10

Poulan TBD

Note: 2225J

$

$

Not available

11

Poulan 532134793

SHIM.KIT.DANA.4689

$

$

Not available

12

Poulan 532148268

BEARING.FLANGE (DANA 5511)

$

$

Not available

13

Poulan 532120415

WASHER.PLAIN..632X1.38X.046

$

$

Not available

14

Poulan 532142674

KEY.WOODRUFF.DANA

$

$

Not available

15

Poulan TBD

$

$

Not available

16

Poulan TBD

$

$

Not available

17

Poulan 532105909

RING RETAINING

$

$

Not available

18

Poulan 532105910

CHAIN 24 PITCH LT

$

$

Not available

19

Poulan TBD

$

$

Not available

20

Poulan TBD

$

$

Not available

21

Poulan TBD

$

$

Not available

22

Poulan 532138236

ASSEMBLY KIT, CLUTCH KEYS
(Superseded to 138236)

$

$

Not available

23

Poulan 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

24

Poulan 532142676

SHAFT INTERM DANA
(Superseded to 532143673)

$

$

Not available

25

Poulan 2244J

Note: 2244J

$

$

Not available

26

Poulan 532105916

RING, RETAINING LT

$

$

Not available

27

Poulan 532120470

SPROCKET 18T
(Superseded to 120470X)

$

$

Not available

28

Poulan TBD

$

$

Not available

29

Poulan 532142677

GEAR, SPUR 37 TEETH

$

$

Not available

30

Poulan 532142681

GEAR, SPUR 35 TEETH

$

$

Not available

31

Poulan 532124644

(Superseded to 583670301)

$

$

Not available

32

Poulan 532108980

GEAR, SPUR 25 TEETH

$

$

Not available

33

Poulan 532120406

GEAR, SPUR 22 TEETH

$

$

Not available

34

Poulan 532134796

GEAR

$

$

Not available

35

Poulan TBD

$

$

Not available

36

Poulan 2228J

WASHER 045
(Superseded to 583729101)

Note: 2228J

$

$

Not available

37

Poulan 2231J

WASHER 031
(Superseded to 583729401)

Note: 2231J

$

$

Not available

38

Poulan TBD

$

$

Not available

39

Poulan 532124639

SHAFT IDLER

$

$

Not available

40

Poulan TBD

$

$

Not available

41

Poulan 532105928

SPROCKET 9T LT

$

$

Not available

42

Poulan TBD

$

$

Not available

43

Poulan 532134394

SHIM

$

$

Not available

44

Poulan 532120473

SHAFT, DRIVE

$

$

Not available

45

Poulan 532142678

GEAR SPUR 12 TEETH

$

$

Not available

46

Poulan TBD

$

$

Not available

47

Poulan TBD

$

$

Not available

48

Poulan TBD

$

$

Not available

49

Poulan 532120408

GEAR, SPUR 28 TEETH

$

$

Not available

50

Poulan 532105937

GEAR, SPUR 31 TEETH

$

$

Not available

51

Poulan 2226J

(Superseded to 583728901)

Note: 2226J

$

$

Not available

52

Poulan 532134401

NEOPRENE.WASHER.DANA

$

$

Not available

53

Poulan 2264J

WASHER 031
(Superseded to 583729701)

Note: 2264J

$

$

Not available

54

Poulan TBD

$

$

Not available

55

Poulan TBD

$

$

Not available

56

Poulan TBD

$

$

Not available

57

Poulan 532110071

GEAR LT

$

$

Not available

58

Poulan TBD

$

$

Not available

59

Poulan TBD

$

$

Not available

60

Poulan 532160950

$

$

Not available

61

Poulan 532160951

$

$

Not available

62

Poulan 532120961

PUCK, FRICTION

$

$

Not available

63

Poulan 532007294

BRAKE DISC T

$

$

Not available

64

Poulan 532108989

SPACER LT

$

$

Not available

65

Poulan TBD

$

$

Not available

66

Poulan 532120954

PIN

$

$

Not available

67

Poulan 532160953

SCREW

$14.99

$

Usually ships in 3-10 days

0

68

Poulan 532138244

(Superseded to 532108992)

$

$

Not available

69

Poulan 532108996

WASHER, PLAIN .321 X 1.00X.055

$

$

Not available

70

Poulan TBD

$

$

Not available

71

Poulan 532120951

PUCK, FRICTION

$

$

Not available

72

Poulan 532120416

SHELL, GREASE
(Superseded to 532126976)

$

$

Not available
