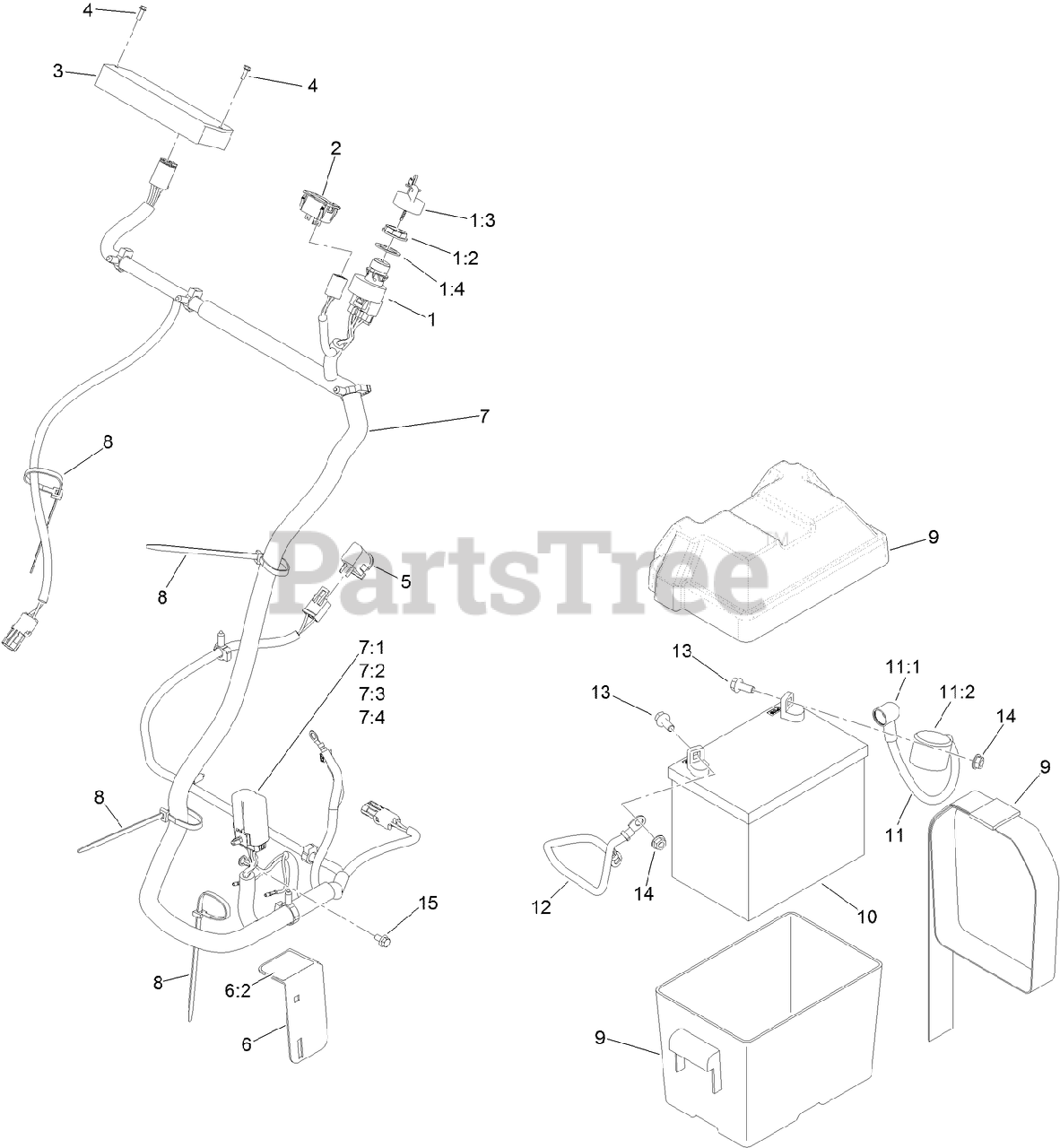

34215 - Toro Stand-On Spreader/Sprayer (SN: 315000001 - 315999999) (2015) ELECTRICAL ASSEMBLY Parts Diagram

Stand-On Spreader/Sprayer

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 120-3956

IGNITION SWITCH ASM

$83.99

$

Usually ships in 3-6 days

0

1:2

Toro 108-8660

NUT-MOUNTING

$33.99

$

In Stock, only 4 left!

0

1:3

Toro 106-5270

IGNITION KEY SET

$21.99

$

Usually ships in 3-6 days

0

1:4

Toro 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 2 left!

0

2

Toro 126-3931

HOUR METER

$64.99

$

Usually ships in 3-6 days

0

3

Toro 126-4007

CONTROLLER-DC
(Superseded to 126-6622)

$844.99

$

Usually ships in 3-6 days

0

4

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

6

Toro 126-4656

FUSE BRACKET ASM

$55.99

$

Usually ships in 3-6 days

0

6:2

Toro 126-4122

DECAL-FUSE

$

$

Currently unavailable

7

Toro 126-3458

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$357.99

$

Usually ships in 3-6 days

0

7:1

Toro 121-8868

FUSE-MINI BLADE, 20 AMP

$5.99

$

Usually ships in 3-6 days

0

7:2

Toro 126-3991

RELAY-MICRO

$39.99

$

In Stock, only 4 left!

0

7:3

Toro 126-4101

CAP-POWER DISTRIBUTION MODULE

$26.99

$

Usually ships in 3-6 days

0

7:4

Toro 126-4102

CLIP-POWER DISTRIBUTION MODULE

$13.99

$

Usually ships in 3-6 days

0

8

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

9

Toro 126-1424

BATTERY BOX

$46.99

$

Usually ships in 3-6 days

0

10

BATTERY (300 CCA, WET)

Note: Not serviced separately

$

$

Not available

11

Toro 116-4730

CABLE-BATTERY, POSITIVE

$19.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

11:2

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

12

Toro 114-9715

CABLE-BATTERY, NEGATIVE

$25.99

$

Usually ships in 3-6 days

0

13

Toro 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 11

0

14

Toro 126-2232

NUT-HF
(Superseded to 135-2881)

$1.99

$

In Stock, only 3 left!

0

15

Toro 33103-012

SCREW-HHF

$5.49

$

In Stock, only 3 left!

0
