34215 - Toro Stand-On Spreader/Sprayer (SN: 315000001 - 315999999) (2015) STEERING ASSEMBLY Parts Diagram

Stand-On Spreader/Sprayer

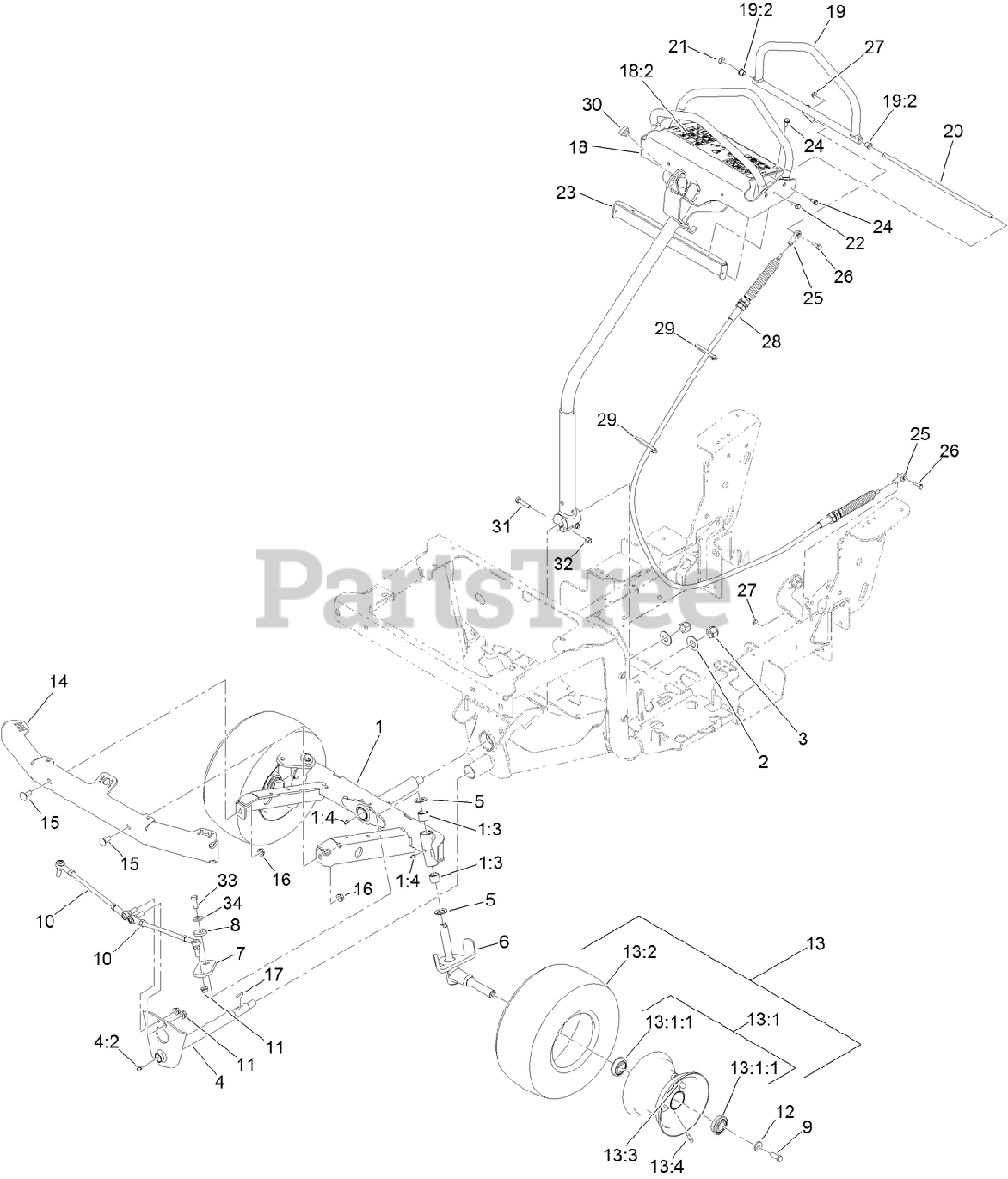

STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 126-0190

FRONT AXLE ASM
(Superseded to 126-7080)

$

$

Not available

1:3

Toro 126-1496

BEARING-SLEEVE
(Superseded to 126-6514)

$9.99

$

In Stock, only 1 left!

0

1:4

Toro 126-1375

ZERK-GREASE

$5.49

$

In Stock, Qty 8

0

2

Toro 126-0656

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

3

Toro 126-3841

NUT-HEX, NI

$5.49

$

Usually ships in 3-6 days

0

4

Toro 126-1368

STEERING SHAFT ASM

$655.99

$

In Stock, only 1 left!

0

4:2

Toro 126-1375

ZERK-GREASE

$5.49

$

In Stock, Qty 8

0

5

Toro 126-1497

WASHER-THRUST

$6.99

$

In Stock, only 2 left!

0

6

Toro 126-4210

FRONT AXLE ASM
(Superseded to 126-6490)

$354.99

$

In Stock, Qty 9

0

7

Toro 126-0122

ARM-STEERING
(Superseded to 126-6487)

$141.99

$

Usually ships in 3-6 days

0

8

Toro 126-3875

WASHER

$5.49

$

Usually ships in 3-6 days

0

9

Toro 126-4246

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 126-3699

STEERING LINKAGE ASM
(Superseded to 126-7185)

$217.99

$

In Stock, only 2 left!

0

11

Toro 126-4803

NUT-HF

$5.49

$

In Stock, only 2 left!

0

12

Toro 126-4332

SPACER

$19.99

$

Usually ships in 3-6 days

0

13

Toro 126-2835

WHEEL AND TIRE ASM
(Superseded to 126-6868)

$160.99

$

Usually ships in 3-6 days

0

13:1

Toro 126-2836

WHEEL ASM
(Superseded to 126-6869)

$

$

Not available

13:1:1

Toro 126-1508

BEARING

$21.99

$

Usually ships in 3-6 days

0

13:2

Toro 126-1509

TIRE

$84.99

$

In Stock, only 2 left!

0

13:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

13:4

Toro 302-62

FITTING-GREASE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 116-9789

BUMPER-FRONT

$336.99

$

Usually ships in 3-6 days

0

15

Toro 126-0980

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

16

Toro 126-2233

NUT-HF
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 12

0

17

Toro 3257-7

KEY-WOODRUFF

$10.99

$

In Stock, only 3 left!

0

18

Toro 126-1614

MOTION HANDLE ASM

$926.99

$

Usually ships in 3-6 days

0

18:2

Toro 126-2612

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0

19

Toro 126-1598

MOTION HANDLE ASM

$149.99

$

Usually ships in 3-6 days

0

19:2

Toro 103-9928

BEARING

$8.49

$

In Stock, Qty 10

0

20

Toro 126-0496

SHAFT-PIVOT, SPEED CONTROL

$51.99

$

Usually ships in 3-6 days

0

21

Toro 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.99

$

Usually ships in 3-6 days

0

22

Toro 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

23

Toro 126-1604-03

PANEL-REAR, STEERING

$39.99

$

Usually ships in 3-6 days

0

24

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

25

Toro 2411-41

ROD END-BALL JOINT

$45.99

$

Usually ships in 3-6 days

0

26

Toro 126-0498

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 126-2231

NUT-HF
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 12

0

28

Toro 126-2169

CABLE-MOTION

$241.99

$

Usually ships in 3-6 days

0

29

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

30

Toro 104-1412

BUMPER-RUBBER

$20.99

$

In Stock, only 3 left!

0

31

Toro 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

32

Toro 32152-5

NUT-HEX

$3.99

$

In Stock, only 2 left!

0

33

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0
