34215 - Toro Stand-On Spreader/Sprayer (SN: 316000001 - 316999999) (2016) SPRAY SYSTEM ASSEMBLY Parts Diagram

Stand-On Spreader/Sprayer

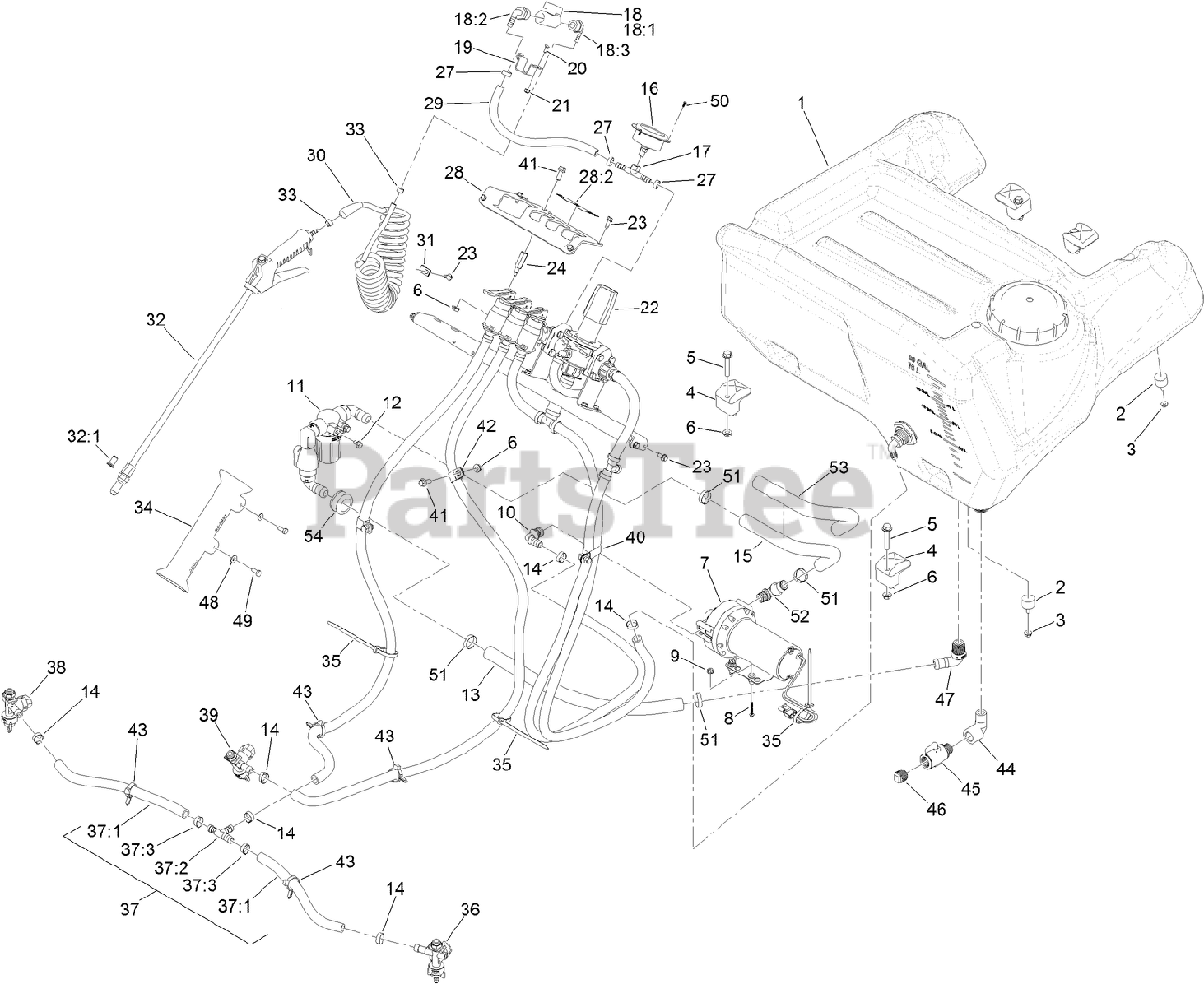

SPRAY SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 126-0286

TANK-SPRAYER

$674.99

$

Usually ships in 3-6 days

0

2

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

3

Toro 126-2231

NUT-HF
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 10

0

4

Toro 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

5

Toro 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

6

Toro 126-2232

NUT-HF
(Superseded to 135-2881)

$1.99

$

In Stock, only 3 left!

0

7

Toro 126-4839

PUMP-DIAPHRAGM, 3.8 GPM
(Superseded to 142-2301)

$495.99

$

In Stock, only 2 left!

0

8

Toro 692501

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 126-2645

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

10

Toro 126-0961

FITTING-ELBOW, BARBED

$9.99

$

In Stock, only 4 left!

0

11

Toro 126-4358

STRAINER ASM

$143.99

$

In Stock, only 1 left!

0

12

Toro 126-2713

SCREW-HHF

$5.49

$

In Stock, Qty 20+

0

13

Toro 126-4422

HOSE-WATER

$18.99

$

Usually ships in 3-6 days

0

14

Toro 126-4778

CLAMP

$2.99

$

In Stock, only 4 left!

0

15

Toro 126-4637

HOSE-WATER

$34.99

$

Usually ships in 3-6 days

0

16

Toro 126-4110

GAUGE-PRESSURE

$174.99

$

In Stock, Qty 5

0

17

Toro 126-2348

FITTING-TEE

$17.99

$

Usually ships in 3-6 days

0

18

WAND CONTROL ASM

Note: Not serviced separately

$

$

Not available

18:1

Toro 126-0242

VALVE-BALL

$46.99

$

In Stock, only 2 left!

0

18:2

Toro 126-4992

FITTING-ELBOW-90
(Superseded to 135-8341)

$1.49

$

In Stock, only 4 left!

0

18:3

Toro 126-4993

FITTING-ELBOW-90

$5.49

$

In Stock, Qty 20+

0

19

Toro 126-0239-03

BRACKET-VALVE

$18.99

$

In Stock, only 1 left!

0

20

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

21

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

CONTROL VALVE MANIFOLD ASM

Note: Not serviced separately

$

$

Not available

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

24

Toro 126-4914

SPACER-MOUNT, MANIFOLD

$29.99

$

Usually ships in 3-6 days

0

27

Toro 126-3749

CLAMP

$1.49

$

Usually ships in 3-6 days

0

28

Toro 126-4180

COVER-CONTROLS

$114.99

$

Usually ships in 3-6 days

0

28:2

Toro 126-4161

DECAL-CONTROL, LEVER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 126-5847

HOSE-WATER, 3/8 PVC RED

$7.99

$

Usually ships in 3-6 days

0

30

Toro 126-1493

HOSE-COILED

$79.99

$

In Stock, Qty 13

0

31

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

32

Toro 126-8000

SPRAY WAND ASM

$129.99

$

In Stock, only 3 left!

0

32:1

Toro 126-3943

STRAINER-NOZZLE, 50M 5PSI CHECK

$21.99

$

In Stock, Qty 20+

0

33

Toro 126-2707

CLAMP

$1.49

$

In Stock, Qty 20+

0

34

Toro 126-3987

HOLDER-WAND

$69.99

$

Usually ships in 3-6 days

0

35

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

36

Toro 126-3667

LEFT NOZZLE SUB ASM

$79.99

$

In Stock, only 1 left!

0

37

Toro 126-2252

HOSE ASM

$25.99

$

Usually ships in 3-6 days

0

37:1

Toro 126-2264

HOSE-WATER

$8.99

$

In Stock, only 1 left!

0

37:2

Toro 126-0968

FITTING-TEE

$5.49

$

Usually ships in 3-6 days

0

37:3

Toro 126-4778

CLAMP

$2.99

$

In Stock, only 4 left!

0

38

Toro 126-3669

RIGHT NOZZLE SUB ASM

$79.99

$

In Stock, only 3 left!

0

39

Toro 126-3668

CENTER NOZZLE SUB ASM

$79.99

$

In Stock, only 1 left!

0

40

Toro 120-1959

CLAMP

$3.49

$

Usually ships in 3-6 days

0

41

Toro 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 11

0

42

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

43

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

44

Toro 108-3573

ELBOW-90 DEG

$15.99

$

Usually ships in 3-6 days

0

45

Toro 126-1494

MICROVALVE

$46.99

$

Usually ships in 3-6 days

0

46

Toro 363-3125

PLUG

$2.99

$

Usually ships in 3-6 days

0

47

Toro 119-0490

ELBOW-HOSEBARB

$4.99

$

In Stock, only 2 left!

0

48

Toro 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

49

Toro 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

50

Toro 363-8552

SCREW-TAP

$0.99

$

Usually ships in 3-6 days

0

51

Toro 126-4779

CLAMP

$2.99

$

Usually ships in 3-6 days

0

52

Toro 126-4420

FITTING-ELBOW

$15.99

$

In Stock, Qty 12

0

53

Toro 126-5065

SLEEVE-CORRUGATED, SPLIT

$14.99

$

Usually ships in 3-6 days

0

54

Toro 126-7410

GROMMET

$6.99

$

Usually ships in 3-6 days

0
