34230 - Toro Stand-On Spreader/Sprayer (SN: 408000000 - 412799999) Engine Assembly Parts Diagram

Stand-On Spreader/Sprayer

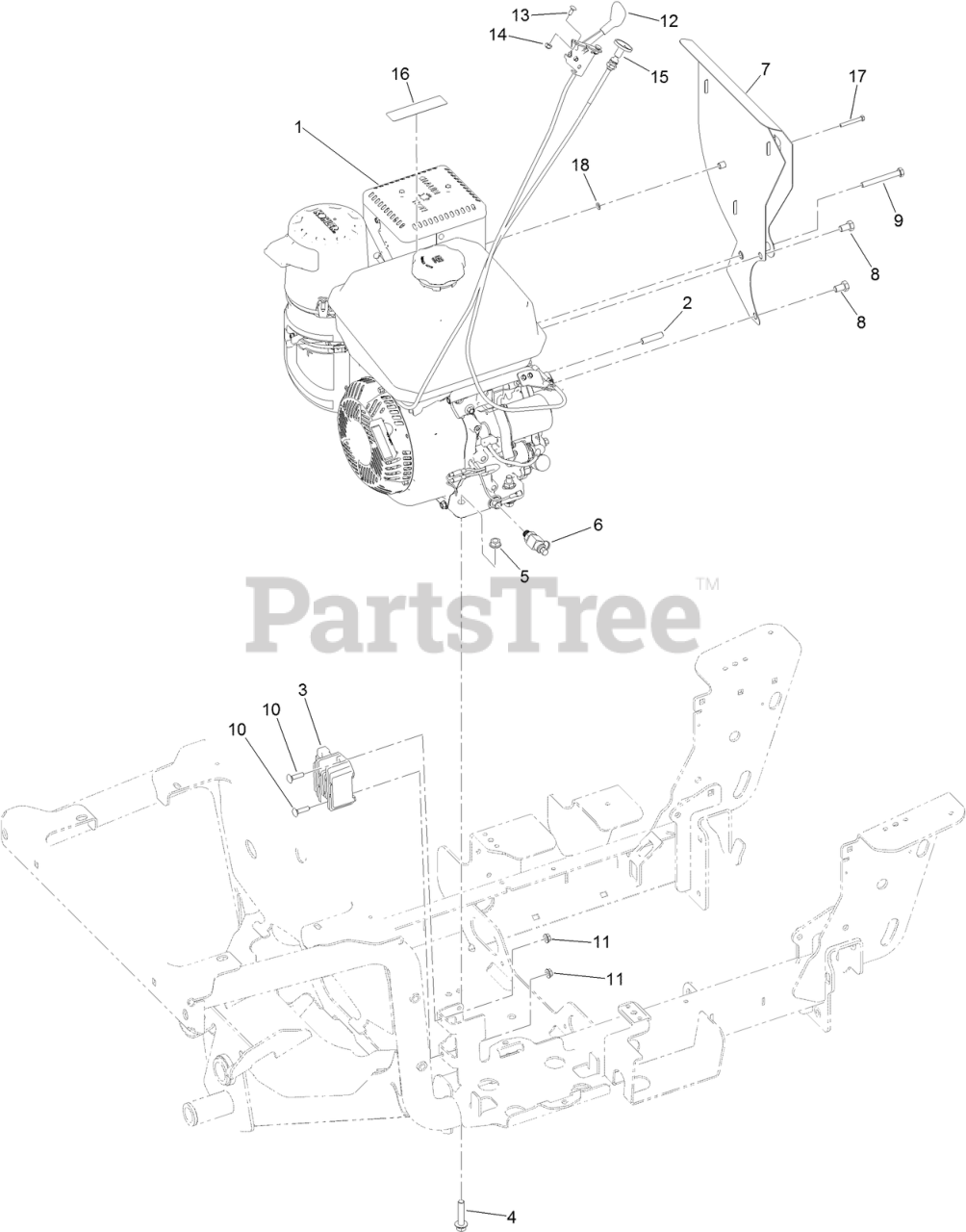

Engine Assembly Parts Diagram

  • Title

1

Toro 126-1359

ENGINE-KOHLER, CH395

$2956.99

$

Usually ships in 3-6 days

0

2

Toro 135-3980

KEY-SQUARE, 7MM

$6.49

$

Usually ships in 3-6 days

0

3

Toro 135-7026

REGULATOR-TROMBETTA, 18A

$129.99

$

Usually ships in 3-6 days

0

4

Toro 126-2710

SCREW-HHF

$13.99

$

Usually ships in 3-6 days

0

5

Toro 135-2882

NUT-HF

$2.99

$

In Stock, only 4 left!

0

6

Toro 126-9978

VALVE-DRAIN, OIL

$50.99

$

Usually ships in 3-6 days

0

7

Toro 126-2225

HEAT SHIELD ASM

$254.99

$

Usually ships in 3-6 days

0

8

Toro 115-8486

SCREW-HH

$3.49

$

In Stock, Qty 6

0

9

Toro 120-1177

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

10

Toro 126-1455

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

11

Toro 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

12

Toro 135-3149

CONTROL-THROTTLE

$45.99

$

In Stock, only 1 left!

0

13

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

15

Toro 135-3150

CABLE-CHOKE, PUSH/PULL

$37.99

$

Usually ships in 3-6 days

0

16

Toro 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

17

Toro 135-4328

BOLT-M5X0.8MM X 40 MM LONG

$1.99

$

Usually ships in 3-6 days

0

18

Toro 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0
