34230 - Toro Stand-On Spreader/Sprayer (SN: 408000000 - 412799999) Spreader Hopper Assembly Parts Diagram

Stand-On Spreader/Sprayer

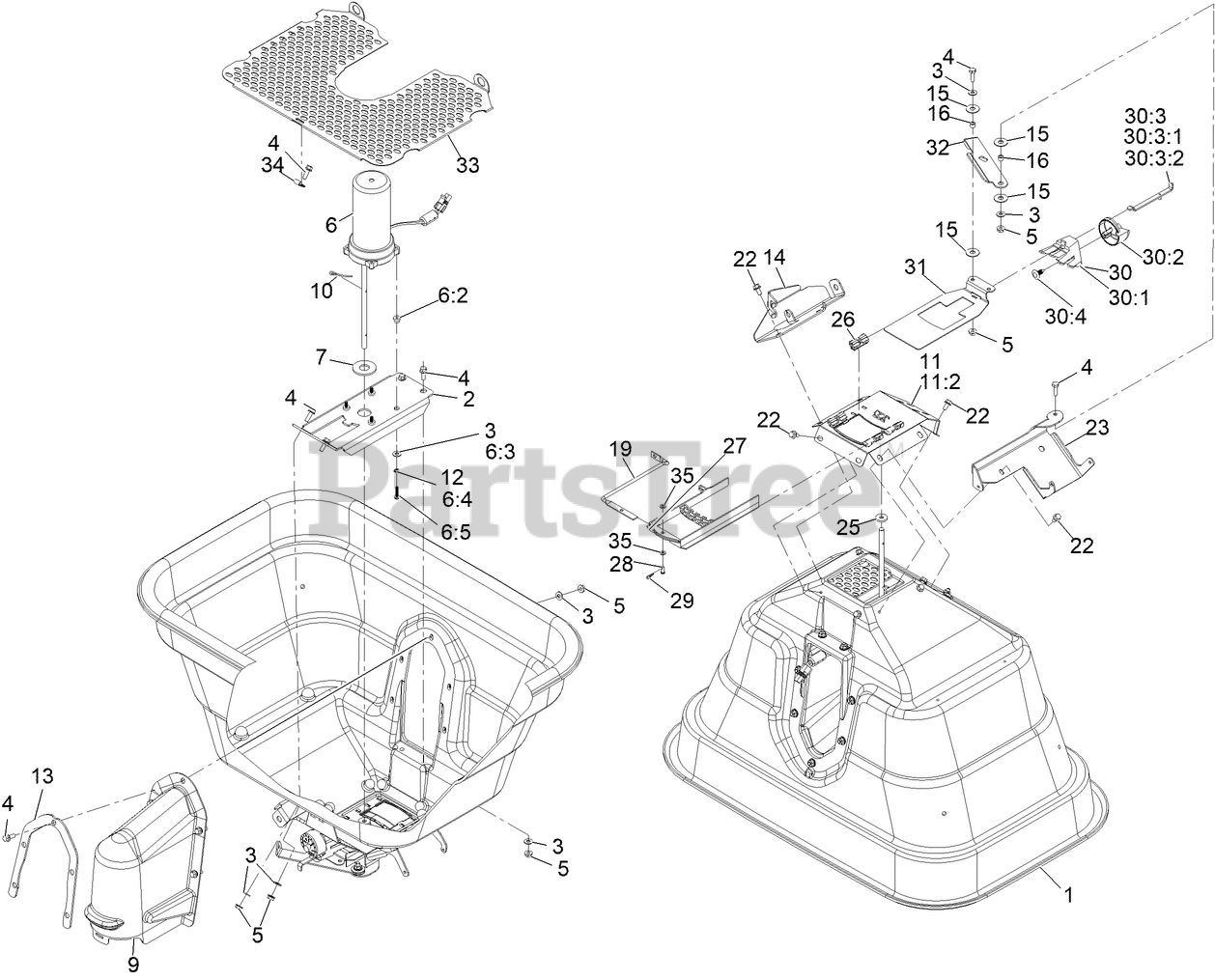

Spreader Hopper Assembly Parts Diagram

  • Title

1

Toro 142-2734

HOPPER-SPREADER, 175 LB

$427.99

$

Usually ships in 3-6 days

0

2

Toro 126-4245

BRACKET-MOUNT, MOTOR

$84.99

$

Usually ships in 3-6 days

0

3

Toro 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 126-0498

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

5

Toro 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

6

Toro 126-6231

SPREADER MOTOR ASM

$672.99

$

Usually ships in 3-6 days

0

6:2

Toro 135-3989

SPACER-FLANGED

$5.49

$

Usually ships in 3-6 days

0

6:3

Toro 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6:4

Toro 363-8641

WASHER-LOCK, INT

$1.49

$

Usually ships in 3-6 days

0

6:5

Toro 739001

SCREW-SHWH

$1.49

$

In Stock, Qty 6

0

7

Toro 83-2400

SPACER

$7.99

$

In Stock, only 3 left!

0

9

Toro 126-1348

COVER-MOTOR

$145.99

$

Usually ships in 3-6 days

0

10

Toro 142-3666

WIRE-AGITATOR

$4.49

$

In Stock, Qty 20+

0

11

Toro 142-4040

ASM-MULCH PLATE W/ BEARING

$67.99

$

Usually ships in 3-6 days

0

11:2

Toro 142-4042

HOPPER BOTTOM BEARING

$1.99

$

In Stock, only 2 left!

0

12

Toro 363-8641

WASHER-LOCK, INT

$1.49

$

Usually ships in 3-6 days

0

13

Toro 126-6334

FLANGE-COVER, MOTOR

$29.99

$

Usually ships in 3-6 days

0

14

Toro 126-4650

BRACKET-HOPPER, GATE CONTROLS

$64.99

$

Usually ships in 3-6 days

0

15

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

16

Toro 126-3684

SPACER

$6.99

$

Usually ships in 3-6 days

0

19

Toro 126-1646

ROD-CONTROL, DIFFUSER

$36.99

$

Usually ships in 3-6 days

0

22

Toro 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

23

Toro 142-3602

BRACKET-LEVER, HOPPER GATE

$51.99

$

Usually ships in 3-6 days

0

25

Toro 142-3665

WASHER-FELT

$2.49

$

Usually ships in 3-6 days

0

26

Toro 142-3316

GUIDE-RATE, GATE

$2.49

$

In Stock, Qty 20+

0

27

Toro 142-3406

DIFFUSER

$8.49

$

In Stock, only 2 left!

0

28

Toro 126-3729

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

29

Toro 126-1631

PIN-COTTER, HAIR

$2.99

$

Usually ships in 3-6 days

0

30

Toro 142-3821

RATE DIAL ASM

$67.99

$

Usually ships in 3-6 days

0

30:1

Toro 142-3319

MOUNT-DIAL

$3.49

$

In Stock, Qty 20+

0

30:2

Toro 142-3359

DIAL

$12.99

$

In Stock, Qty 20+

0

30:3

RATE GATE LINK ASM

Note: Not serviced separately

$

$

Not available

30:3:1

Toro 126-0987

LINK-GATE, RATE

$37.99

$

Usually ships in 3-6 days

0

30:3:2

Toro 126-4196

SCREW-SHOULDER, SLOTTED

$12.99

$

In Stock, only 1 left!

0

30:4

Toro 88-1080

FOOTPAD FASTENER

$9.99

$

In Stock, only 3 left!

0

31

Toro 142-4342

RATE GATE

$17.99

$

Usually ships in 3-6 days

0

32

Toro 126-4112

LEVER-GATE

$20.99

$

Usually ships in 3-6 days

0

33

Toro 126-3143

SCREEN-HOPPER, LARGE HOLE

$268.99

$

Usually ships in 3-6 days

0

33

Toro 126-3240

SCREEN-HOPPER, MEDIUM HOLE

$241.99

$

Usually ships in 3-6 days

0

33

Toro 126-3242

SCREEN-HOPPER, SMALL HOLE

$268.99

$

Usually ships in 3-6 days

0

34

Toro 126-1624

CLAMP-LOOP

$2.99

$

Usually ships in 3-6 days

0

35

Toro 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0
