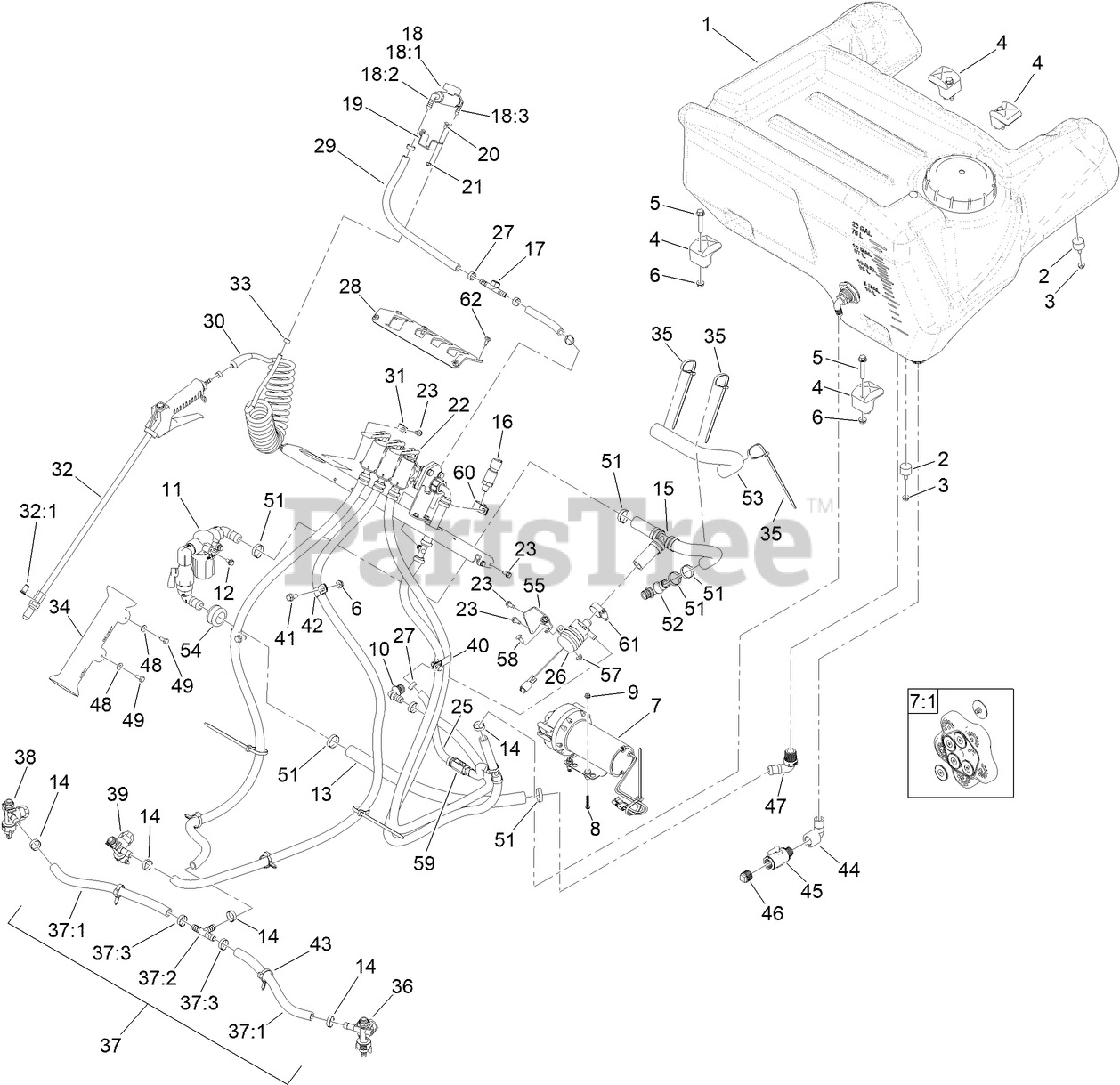

34230 - Toro Stand-On Spreader/Sprayer (SN: 412800000 - 415299999) Spray System Assembly Parts Diagram

Stand-On Spreader/Sprayer

Spray System Assembly Parts Diagram

  • Title

1

Toro 126-0286

TANK-SPRAYER

$797.99

$

Usually ships in 3-6 days

0

2

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

3

Toro 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

4

Toro 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

5

Toro 126-2711

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

6

Toro 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

7

Toro 142-2301

PUMP-DIAPHRAGM, 3.8 GPM

$534.99

$

In Stock, Qty 9

0

7:1

Toro 135-2477

KIT-DIAPHRAM PUMP

$143.99

$

Usually ships in 3-6 days

0

8

Toro 692501

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 126-2645

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

10

Toro 126-0961

FITTING-ELBOW, BARBED

$11.99

$

In Stock, only 2 left!

0

11

Toro 126-4358

STRAINER ASM

$169.99

$

Usually ships in 3-6 days

0

12

Toro 126-2713

SCREW-HHF

$5.49

$

In Stock, Qty 20+

0

13

Toro 126-4422

HOSE-WATER

$19.99

$

Usually ships in 3-6 days

0

14

Toro 142-3662

CLAMP OETIKER 0.716" CLOSED 0.826" OPEN

$1.99

$

Usually ships in 3-6 days

0

15

Toro 142-2192

ASM-, 3/4 PVC REINFORCED WATER HOSE

$44.99

$

Usually ships in 3-6 days

0

16

Toro 142-4495

TRANSDUCER-PRESSURE

$427.99

$

Usually ships in 3-6 days

0

17

Toro 126-2348

FITTING-TEE

$18.99

$

Usually ships in 3-6 days

0

18

WAND CONTROL ASM

Note: Not serviced separately

$

$

Not available

18:1

Toro 126-0242

VALVE-BALL

$59.99

$

In Stock, only 2 left!

0

18:2

Toro 126-4992

FITTING-ELBOW-90
(Superseded to 135-8341)

$1.99

$

In Stock, Qty 18

0

18:3

Toro 126-4993

FITTING-ELBOW-90

$5.49

$

In Stock, Qty 16

0

19

Toro 126-0239-03

BRACKET-VALVE

$20.99

$

In Stock, only 1 left!

0

20

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

21

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

MANIFOLD-VALVE, CONTROL ASM

Note: Not serviced separately

$

$

Not available

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

25

Toro 142-2213

HOSE-WATER

$4.49

$

Usually ships in 3-6 days

0

26

Toro 135-7843

PUMP-CENTRIFUGAL

$209.99

$

Usually ships in 3-6 days

0

27

Toro 126-3749

CLAMP

$1.49

$

Usually ships in 3-6 days

0

28

Toro 142-7735

COVER-CONTROLS

$63.99

$

Usually ships in 3-6 days

0

29

Toro 126-5847

HOSE-WATER, 3/8 PVC RED

$8.49

$

Usually ships in 3-6 days

0

30

Toro 126-1493

HOSE-COILED

$86.99

$

In Stock, Qty 11

0

31

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

32

Toro 126-8000

SPRAY WAND ASM

$147.99

$

In Stock, Qty 5

0

32:1

Toro 126-3943

STRAINER-NOZZLE, 50M 5PSI CHECK

$22.99

$

In Stock, Qty 16

0

33

Toro 126-2707

CLAMP

$1.49

$

In Stock, Qty 20+

0

34

Toro 126-3987

HOLDER-WAND

$80.99

$

Usually ships in 3-6 days

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

36

Toro 126-3667

LEFT NOZZLE SUB ASM

$86.99

$

Usually ships in 3-6 days

0

37

Toro 126-2252

HOSE ASM

$27.99

$

Usually ships in 3-6 days

0

37:1

Toro 126-2264

HOSE-WATER

$9.49

$

In Stock, only 1 left!

0

37:2

Toro 126-0968

FITTING-TEE

$5.49

$

Usually ships in 3-6 days

0

37:3

Toro 142-3662

CLAMP OETIKER 0.716" CLOSED 0.826" OPEN

$1.99

$

Usually ships in 3-6 days

0

38

Toro 126-3669

RIGHT NOZZLE SUB ASM

$86.99

$

In Stock, only 1 left!

0

39

Toro 126-3668

CENTER NOZZLE SUB ASM

$86.99

$

Usually ships in 3-6 days

0

40

Toro 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

41

Toro 126-2712

SCREW-HHF

$5.49

$

In Stock, only 4 left!

0

42

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

43

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

44

Toro 108-3573

ELBOW-90 DEG

$17.99

$

Usually ships in 3-6 days

0

45

Toro 126-1494

MICROVALVE

$59.99

$

Usually ships in 3-6 days

0

46

Toro 363-3125

PLUG

$3.49

$

Usually ships in 3-6 days

0

47

Toro 119-0490

ELBOW-HOSEBARB

$5.49

$

In Stock, only 2 left!

0

48

Toro 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

49

Toro 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

51

Toro 126-4779

CLAMP

$2.99

$

Usually ships in 3-6 days

0

52

Toro 126-4420

FITTING-ELBOW

$17.99

$

In Stock, Qty 8

0

53

Toro 126-5065

SLEEVE-CORRUGATED, SPLIT

$15.99

$

Usually ships in 3-6 days

0

54

Toro 126-7410

GROMMET

$7.49

$

Usually ships in 3-6 days

0

55

Toro 135-7913-03

BRKT-RECIR PUMP

$12.99

$

Usually ships in 3-6 days

0

57

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

58

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

59

Toro 142-2180

VALVE-3/8 CHECK

$84.99

$

Usually ships in 3-6 days

0

60

Toro 132-7590

R-CLAMP

$3.99

$

Usually ships in 3-6 days

0

61

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

62

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0
