34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Electrical Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

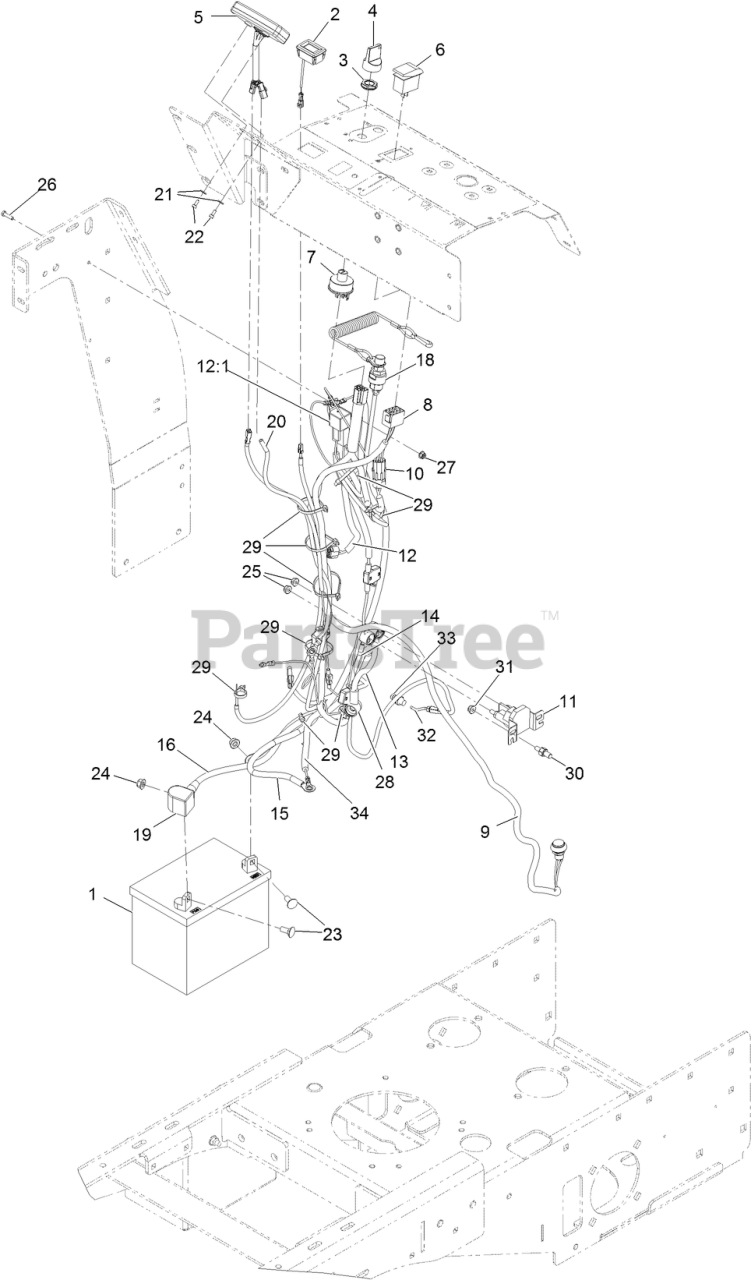

Electrical Assembly Parts Diagram

  • Title

1

Toro 104-4657

BATTERY (340 CCA, WET)

$

$

Currently unavailable

2

Toro 135-5259

METER-TACH/HOUR

$50.99

$

Usually ships in 3-6 days

0

3

Toro 135-5715

NUT-SWITCH, KEY

$2.99

$

Usually ships in 3-6 days

0

4

Toro 1-603511

KEYS-IGNITION (SPARE PAIR)

$2.49

$

In Stock, Qty 20+

0

4

Toro 135-5708

KEY-UMBRELLA

$7.99

$

Usually ships in 3-6 days

0

5

Toro 135-8900

STRIKER-HEAD ONLY

$191.99

$

In Stock, only 2 left!

0

6

Toro 100-8469

SWITCH-ROCKER

$26.99

$

In Stock, only 2 left!

0

7

Toro 135-6052

SWITCH-IGNITION

$28.99

$

In Stock, only 1 left!

0

8

Toro 32160-008

CONNECTOR-CARLING, 8F

$4.99

$

Usually ships in 3-6 days

0

9

Toro 135-6054

SWITCH-PUSH BUTTON

$115.99

$

In Stock, only 1 left!

0

10

Toro 32160-072

CONNECTOR-WP,2M

$3.99

$

In Stock, only 3 left!

0

11

Toro 135-6189

SOLENOID-STARTER

$38.99

$

Usually ships in 3-6 days

0

12

Toro 135-6113

HARNESS-MAIN

$197.99

$

Usually ships in 3-6 days

0

12:1

Toro 135-6270

RELAY-MINI ISO PWR, 5M

$29.99

$

Usually ships in 3-6 days

0

13

Toro 138-3132

CABLE-BATTERY, POSITIVE

$13.99

$

Usually ships in 3-6 days

0

14

Toro 135-6115

WIRE-SOLENOID

$19.99

$

Usually ships in 3-6 days

0

15

Toro 135-6116

CABLE-GROUND

$19.99

$

In Stock, only 1 left!

0

16

Toro 135-6117

CABLE-POSITIVE

$20.99

$

Usually ships in 3-6 days

0

18

Toro 135-6121

SWITCH-OP

$71.99

$

Usually ships in 3-6 days

0

19

Toro 135-2304

INSULATOR-BATTERY

$1.99

$

Usually ships in 3-6 days

0

20

Toro 135-6443

HARNESS-STRIKER

$19.99

$

Usually ships in 3-6 days

0

21

Toro 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

22

Toro 135-6357

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

24

Toro 135-6109

NUT-HEX FLANGE

$1.49

$

In Stock, Qty 13

0

25

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 135-6356

SCREW-HH

$1.49

$

In Stock, Qty 18

0

27

Toro 135-6342

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 16

0

28

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

30

Toro 135-7273

STUD-ENGINE

$21.99

$

Usually ships in 3-6 days

0

31

Toro 135-6108

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 8

0

32

Toro 135-8898

CABLE-SENSOR, TRAIL TECH

$49.99

$

Usually ships in 3-6 days

0

33

Toro 135-8903

MAGNET-SPEEDOMETER

$3.99

$

In Stock, only 1 left!

0

34

Toro 135-3998

HARNESS-WIRE, JUMPER

$29.99

$

Usually ships in 3-6 days

0
