34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Hydraulic Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

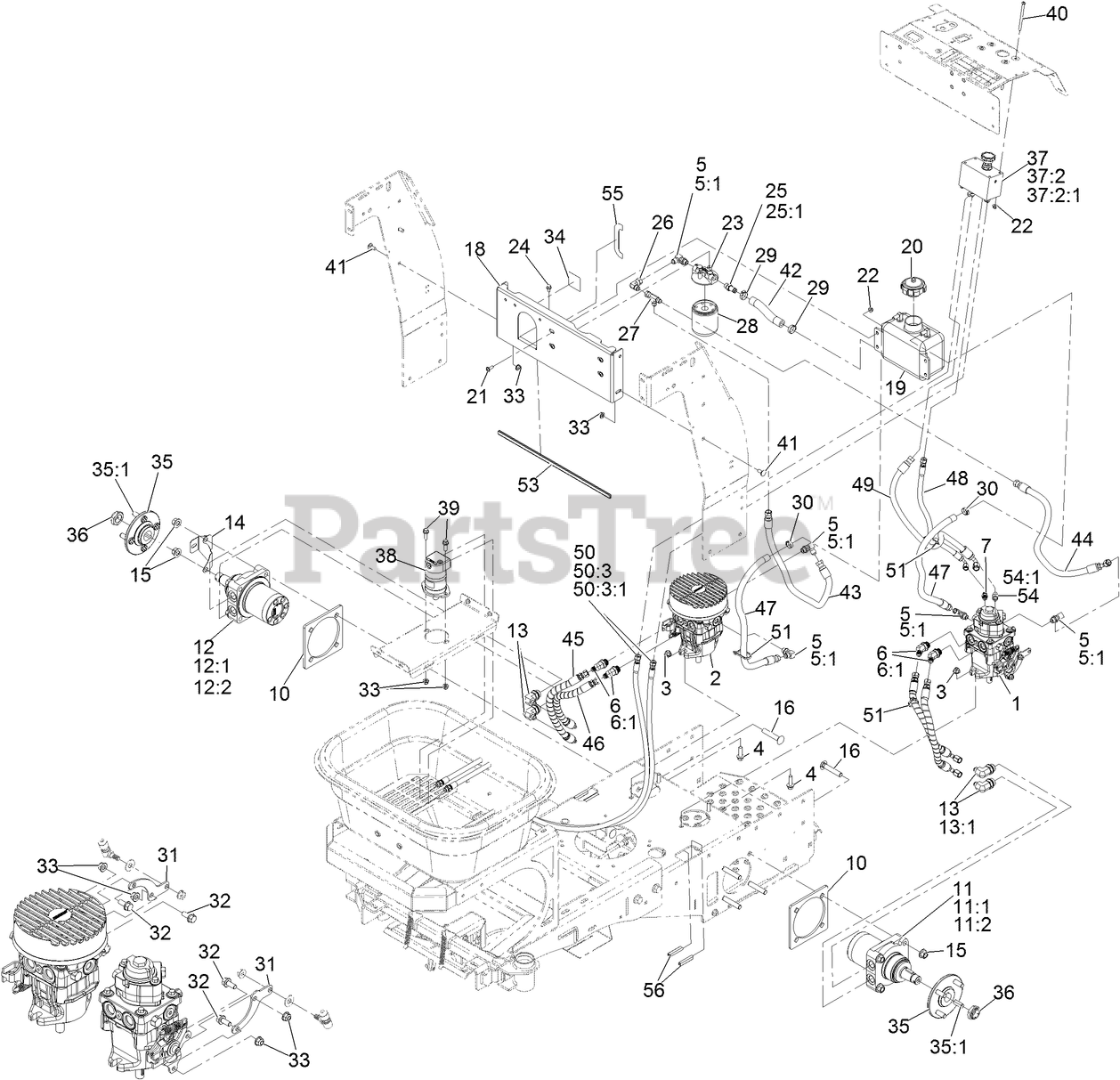

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 135-5250

PUMP-HYDRO, PG WITH AUX

$882.99

$

Usually ships in 3-6 days

0

2

Toro 135-5251

PUMP-HYDRO, PG

$782.99

$

Usually ships in 3-6 days

0

3

Toro 135-6110

NUT-HEX FLANGE

$1.49

$

Usually ships in 3-6 days

0

4

Toro 135-6211

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

5

Toro 103-1802

FITTING-ELBOW, 90 DEG

$22.99

$

In Stock, Qty 5

0

5:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Toro 131-1308

FITTING

$24.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

7

Toro 353-545

FITTING-STRAIGHT

$23.99

$

Usually ships in 3-6 days

0

10

Toro 142-0709

BACKPLATE, WHEEL, JR36

$29.99

$

Usually ships in 3-6 days

0

11

Toro 135-6689

MOTOR-WHEEL,LT

$883.99

$

Usually ships in 3-6 days

0

11:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

0

11:2

Toro 135-7497

KIT-SEAL, TJ MOTOR

$155.99

$

Usually ships in 3-6 days

0

12

Toro 135-6688

MOTOR-WHEEL,RT

$883.99

$

Usually ships in 3-6 days

0

12:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

0

12:2

Toro 135-7497

KIT-SEAL, TJ MOTOR

$155.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5281

FITTING-ELBOW, 90 DEG

$32.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

14

Toro 135-5574

BRACKET-HOPPER, SPEEDOMETER SENSOR

$4.99

$

Usually ships in 3-6 days

0

15

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

16

Toro 126-0095

SCREW-CARR

$2.99

$

In Stock, only 4 left!

0

18

Toro 135-9773

MOUNT, HYDRAULIC FILTER, JR36

$62.99

$

Usually ships in 3-6 days

0

19

Toro 135-9056

2 QT FLAMBEAU HYDRO TANK

$45.99

$

Usually ships in 3-6 days

0

20

Toro 135-5713

CAP-VENTED

$19.99

$

Usually ships in 3-6 days

0

21

Toro 135-7080

SCREW-HSBHF

$2.99

$

In Stock, Qty 8

0

22

Toro 135-6108

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 8

0

23

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 4 left!

0

24

Toro 135-6280

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

25

Toro 109-3278

ADAPTER-STRAIGHT

$120.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

26

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

27

Toro 353-877

FITTING-HYD, TEE

$23.99

$

Usually ships in 3-6 days

0

28

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$17.99

$

In Stock, Qty 5

0

29

Toro 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, only 2 left!

0

30

Toro 135-5757

CLAMP-OETIKER, 167

$1.99

$

Usually ships in 3-6 days

0

31

Toro 135-8846

EXTENSION, HYDRO-PUMP, JR36

$5.49

$

Usually ships in 3-6 days

0

32

Toro 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 9

0

33

Toro 135-6109

NUT-HEX FLANGE

$1.49

$

In Stock, Qty 13

0

34

Toro 135-6398

DECAL-OIL

$1.99

$

Usually ships in 3-6 days

0

35

Toro 135-7525

HUB-WHEEL

$111.99

$

In Stock, Qty 6

0

35:1

Toro 135-7526

STUD-1/2-20 X 1.55

$5.49

$

Usually ships in 3-6 days

0

36

Toro 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

37

Toro 135-5256

MANIFOLD-HOPPER, W/OUT RELIEF
(Superseded to 142-8082)

$353.99

$

In Stock, only 1 left!

0

37:2

Toro 353-212

FITTING-ELBOW, 45 DEG

$25.99

$

Usually ships in 3-6 days

0

37:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

38

Toro 135-5243

MOTOR-HYDRAULIC, SPREADER

$527.99

$

Usually ships in 3-6 days

0

39

Toro 135-6272

SCREW-HHF

$2.99

$

In Stock, Qty 10

0

40

Toro 135-6385

SCREW-HSBH

$1.99

$

Usually ships in 3-6 days

0

41

Toro 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

42

Toro 109-5577

HOSE-HYDRAULIC

$6.49

$

In Stock, Qty 6

0

43

Toro 135-9977

HOSE ASM, HYD LP

$25.99

$

Usually ships in 3-6 days

0

44

Toro 135-7822

HOSE ASM, HYD LP

$67.99

$

Usually ships in 3-6 days

0

45

Toro 142-3121

HOSE ASM-HYD HP

$67.99

$

Usually ships in 3-6 days

0

46

Toro 142-3122

HOSE ASM-HYD HP

$67.99

$

Usually ships in 3-6 days

0

47

Toro 135-9978

HOSE ASM, HYD LP

$21.99

$

Usually ships in 3-6 days

0

48

Toro 142-3119

HOSE ASM-HYD HP

$59.99

$

Usually ships in 3-6 days

0

49

Toro 135-7821

HOSE ASM, HYD LP

$67.99

$

Usually ships in 3-6 days

0

50

Toro 142-3110

HOSE ASM-HYD HP

$70.99

$

Usually ships in 3-6 days

0

50:3

FITTING-STRAIGHT, RIGID

Note: Not serviced separately

$

$

Not available

50:3:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

51

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

53

Toro 135-7494

STRIP-TRIM, 17.88"

$4.49

$

Usually ships in 3-6 days

0

54

Toro AU218-5352

ADAPTER-STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

54:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

55

Toro 135-7911

DECAL-HYDRO LEVEL

$5.99

$

Usually ships in 3-6 days

0

56

Toro 135-7948

STRIP-TRIM, 2.0"

$2.99

$

Usually ships in 3-6 days

0
