34231 - Toro 36" Spray Master Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Spray System Assembly Parts Diagram

36" Spray Master Stand-On Spreader/Sprayer

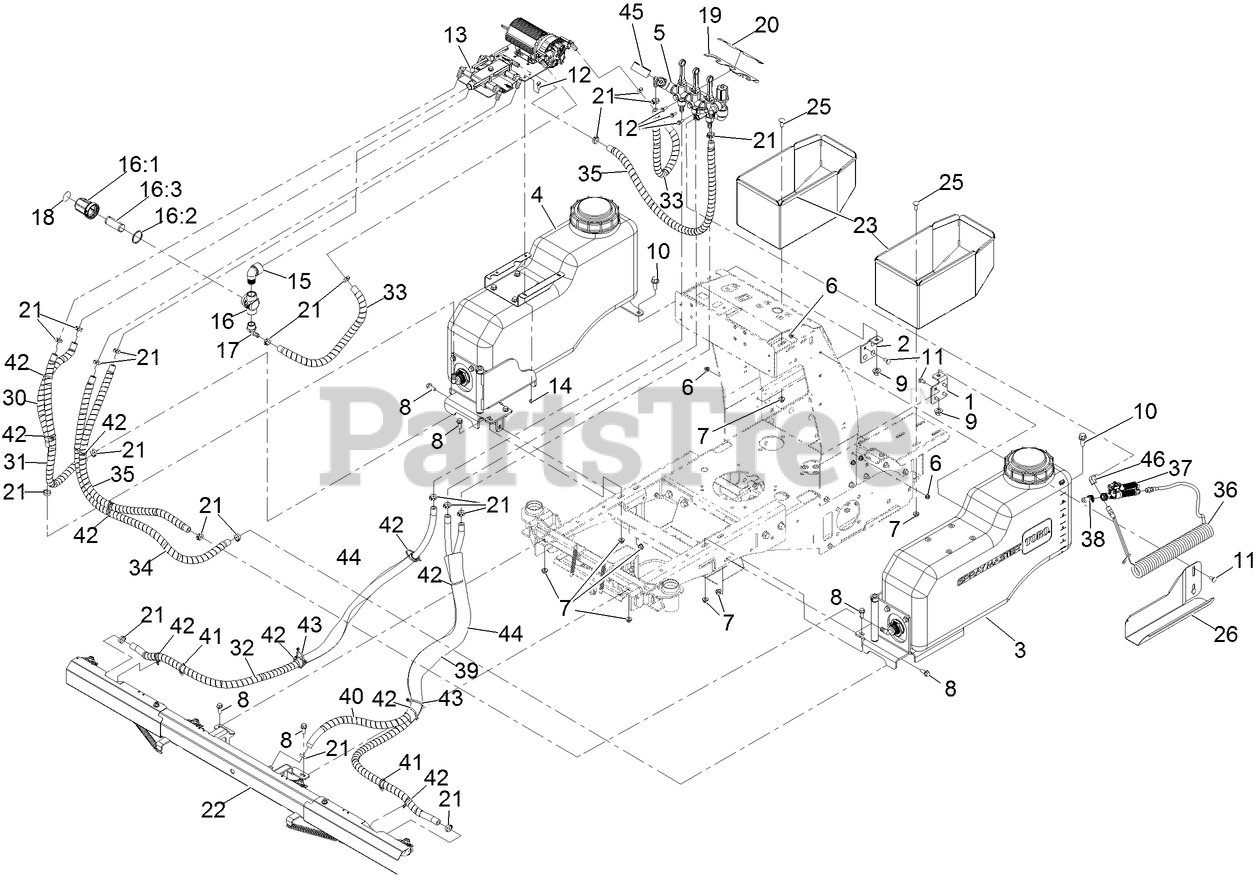

Spray System Assembly Parts Diagram

  • Title

1

Toro 142-0722

PIN, SUPPORT, JR36

$17.99

$

Usually ships in 3-6 days

0

2

Toro 142-0723

PIN, SUPPORT, JR36, SS, 0.188

$17.99

$

Usually ships in 3-6 days

0

3

ASM-TANK LT

Note: Not serviced separately

$

$

Not available

4

ASM-TANK RT

Note: Not serviced separately

$

$

Not available

5

ASM-MANIFOLD

Note: Not serviced separately

$

$

Not available

6

Toro 135-6109

NUT-HEX FLANGE

$1.49

$

In Stock, Qty 13

0

7

Toro 135-6110

NUT-HEX FLANGE

$1.49

$

Usually ships in 3-6 days

0

8

Toro 135-6208

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 135-6111

NUT-HEX FLANGE

$5.99

$

Usually ships in 3-6 days

0

10

Toro 135-6207

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

11

Toro 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Toro 135-6221

SCREW-HHF

$1.49

$

In Stock, Qty 10

0

13

ASM, LIQUID VALVE

Note: Not serviced separately

$

$

Not available

14

Toro 135-6108

NUT-HEX FLANGE

$1.99

$

In Stock, Qty 8

0

15

Toro 132-7706

ELBOW-90 DEG

Note: Apply pipe sealant to all pipe threads.

$11.99

$

Usually ships in 3-6 days

0

16

Toro 135-5765

STRAINER-INLINE

$28.99

$

In Stock, only 2 left!

0

16:1

Toro 126-7195

BOWL-STRAINER

$26.99

$

In Stock, only 1 left!

0

16:2

Toro 126-2272

GASKET-HEAD, LINE STRAINER

$9.99

$

In Stock, Qty 9

0

16:3

Toro 135-5766

SCREEN-STRAINER, 50 MESH

$19.99

$

In Stock, only 2 left!

0

17

Toro 135-5744

FITTING-ELBOW, 90

Note: Apply pipe sealant to all pipe threads.

$1.99

$

In Stock, only 2 left!

0

18

Toro 135-6424

DECAL-CAP, STRAINER

$1.99

$

Usually ships in 3-6 days

0

19

Toro 135-5570-05

BRACKET-MANIFOLD

$16.99

$

Usually ships in 3-6 days

0

20

Toro 135-6285

DECAL-VALVE, BOOM

$4.99

$

Usually ships in 3-6 days

0

21

Toro 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, only 2 left!

0

22

ASM-BOOM, SPRAY

Note: Not serviced separately

$

$

Not available

23

Toro 142-2446

BOX-FERT

$212.99

$

Usually ships in 3-6 days

0

25

Toro 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

26

Toro 142-0749

TRAY, GUN, JR36

$60.99

$

Usually ships in 3-6 days

0

30

Toro 142-0042

HOSE-SPRAY, WRAPPED

$19.99

$

In Stock, only 1 left!

0

31

Toro 142-0039

HOSE-SPRAY, WRAPPED

$33.99

$

In Stock, only 2 left!

0

32

Toro 142-0014

HOSE-SPRAY, WRAPPED

$17.99

$

Usually ships in 3-6 days

0

33

Toro 142-0041

HOSE-SPRAY, WRAPPED

$27.99

$

Usually ships in 3-6 days

0

34

Toro 142-0036

HOSE-SPRAY, WRAPPED

$39.99

$

Usually ships in 3-6 days

0

35

Toro 142-0037

HOSE-SPRAY, WRAPPED

$38.99

$

Usually ships in 3-6 days

0

36

Toro 135-6612

HOSE-COILED, 15 FT

$95.99

$

Usually ships in 3-6 days

0

37

Toro 135-5773

GUN-SPRAY, SPOT

$64.99

$

In Stock, only 3 left!

0

38

Toro 135-5778

TIP-SPRAY, #12 SPOT

$23.99

$

In Stock, Qty 10

0

39

Toro 142-0013

HOSE-SPRAY, WRAPPED

$17.99

$

Usually ships in 3-6 days

0

40

Toro 135-5294

HOSE-SPRAY, WRAPPED

$13.99

$

Usually ships in 3-6 days

0

41

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

42

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

43

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

44

Toro 135-6484

GUARD-MESH

$19.99

$

In Stock, only 3 left!

0

45

Toro 142-3437

GAUGE-PLAIN

$33.99

$

In Stock, only 1 left!

0

46

Toro 125-9088

FITTING-ELBOW, 90

$17.99

$

Usually ships in 3-6 days

0
