343 (190-343-100) - Cub Cadet Front Hitch Hitch Parts Diagram

Front Hitch

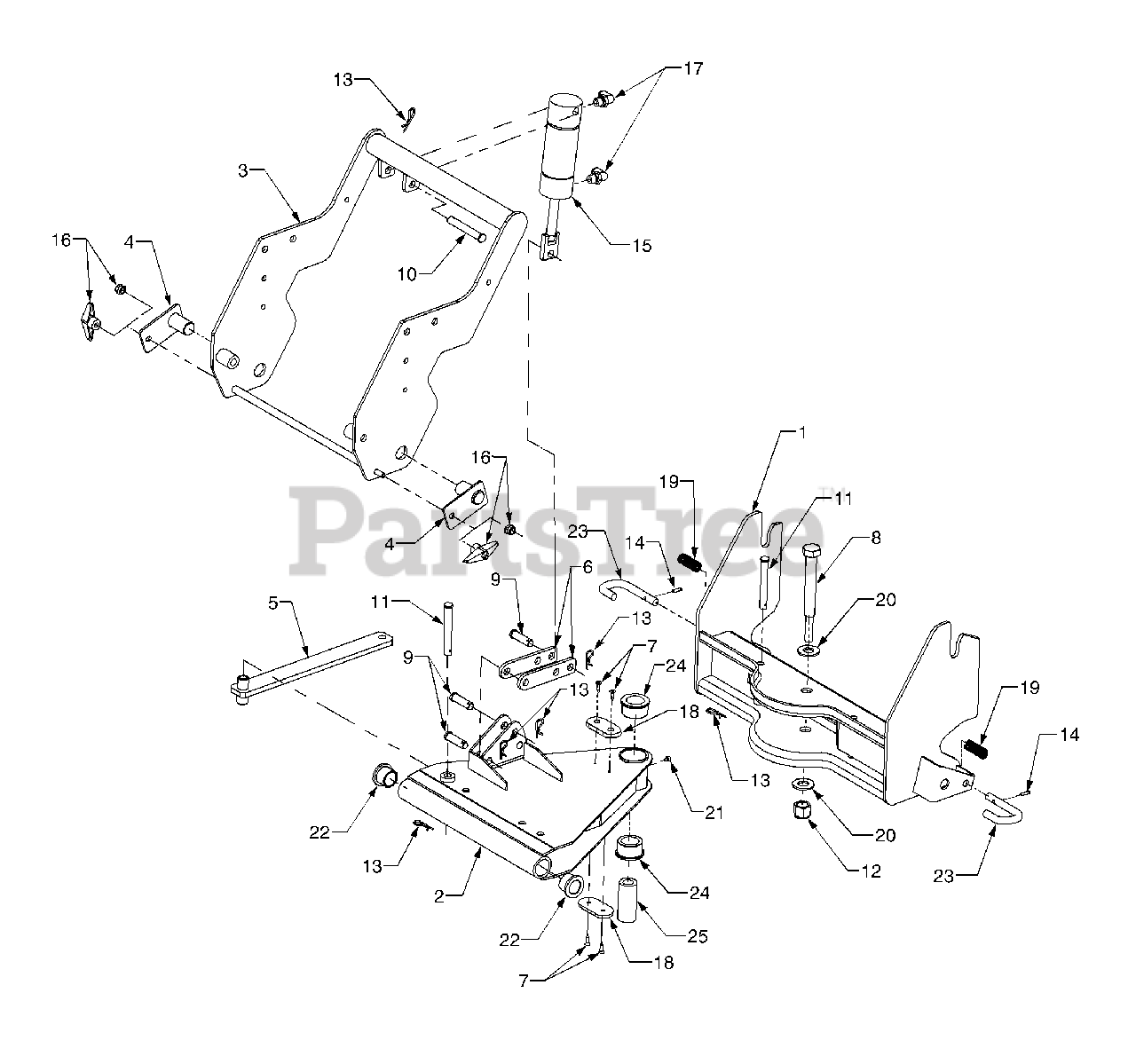

Hitch Parts Diagram

  • Title

1

Cub Cadet 603-0603-0716

Yoke Assembly, Hitch

$

$

Not available

2

Cub Cadet 603-0604-0716

Plate Assembly, Pivot

$556.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0605-0716

Plate Assembly, Mounting

$

$

Not available

4

Cub Cadet 603-0628

Pin Assembly, Pivot

Variations

Cub Cadet 603-0628-0637

PIN ASSY-PIVOT - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0657

Strut, Front Hitch

Variations

Cub Cadet 603-0657-0716

STRUT-FRONT HITCH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 703-3256

Arm, Hitch Float

$

$

Not available

7

Cub Cadet 710-0841

Screw, Countersink, #10-12 x .75

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1635

Screw, Hex Cap 3/4-10 x 4.75 GR5

$16.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-0231

Pin, Clevis, .5 Dia x 1.59
(Superseded to 911-0231)

$5.99

$

In Stock, only 3 left!

0

10

Cub Cadet 711-0578

Pin, Clevis, .494 Dia x 2.91

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1322

Pin, Clevis, .5 Dia x 3.375

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-3107

Nut, Hex, 3/4-10

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet 714-0145

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 715-3003

Pin, Spirol

$6.49

$

In Stock, Qty 11

0

15

Cub Cadet 717-3456

Cylinder, Hitch Lift

$529.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 720-0241

Knob, Wing Nut, 5/16-18
(Superseded to 720-04072A)

Note: Early Production

$6.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

Note: Later Production

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 727-3012

Elbow, 90 Degree

$24.99

$

In Stock, only 4 left!

0

18

Cub Cadet 731-3258

Plate, Stab

$35.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-3091

Spring, Compression

$

$

Not available

20

Cub Cadet 736-0315

Washer, Flat, .75 x 1.5 x .120

$6.49

$

In Stock, Qty 7

0

21

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 741-0476

Bearing, Flange, 1.003 ID
(Superseded to 741-04488)

$8.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-3427

Pin, Mower Support

$

$

Not available

24

Cub Cadet 748-0194

Bearing, Flange, 1.252 ID

$30.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-3234

Pivot Shaft

$

$

Not available
