343 R - Husqvarna String Trimmer (SN: 20043100001 - 20064000000) CYLINDER PISTON Parts Diagram

String Trimmer

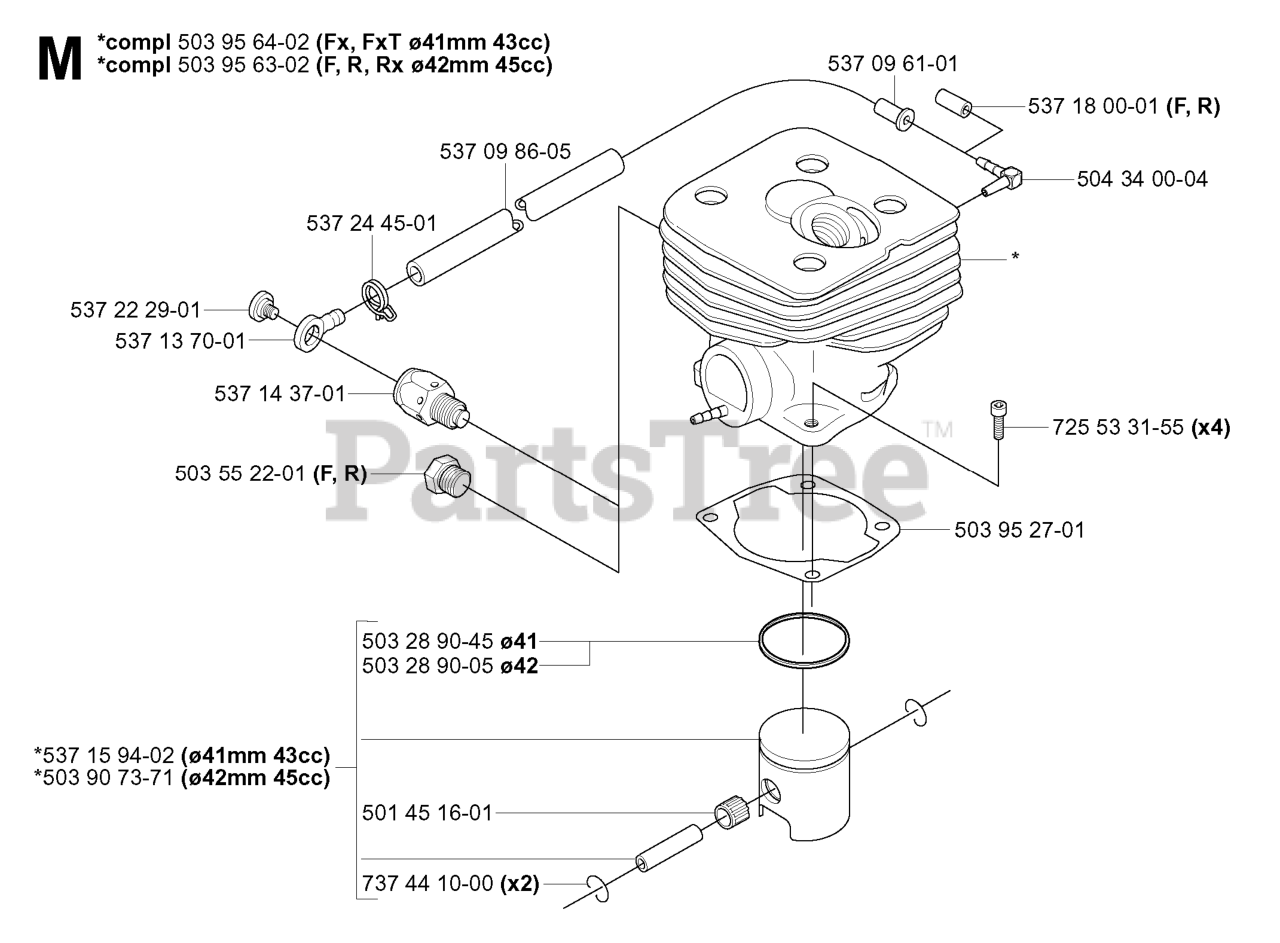

CYLINDER PISTON Parts Diagram

  • Title

503 95 64-02

Husqvarna 503956402

CYLINDER
(Superseded to 505108502)

Note: FX, FXT ?1MM 43CC

$319.99

$

Usually ships in 3-10 days

0

537 09 86-05

Husqvarna 537098605

HOSE

$

$

Not available

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$3.49

$

In Stock, Qty 12

0

537 18 00-01

Husqvarna 537180001

PROTECTIVE CAP

Note: F, R

$4.99

$

Usually ships in 3-10 days

0

503 28 90-45

Husqvarna 503289045

PISTON RING

Note: ?1

$28.99

$

In Stock, only 1 left!

0

537 09 61-01

Husqvarna 537096101

SLEEVE

$6.99

$

In Stock, only 4 left!

0

537 24 45-01

Husqvarna 537244501

HOSE CLIP

$

$

Not available

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

Note: F, R

$12.99

$

In Stock, only 2 left!

0

537 13 70-01

Husqvarna 537137001

NIPPLE

$6.99

$

Usually ships in 3-10 days

0

504 34 00-04

Husqvarna 504340004

NIPPLE

$

$

Not available

737 44 10-00

Husqvarna 737441000

LOCKING RING

$3.49

$

Usually ships in 3-10 days

0

501 45 16-01

Husqvarna 501451601

SUPPORT BUSHING
(Superseded to 503256302)

$27.99

$

Usually ships in 3-10 days

0

537 15 94-02

Husqvarna 537159402

PISTON ASSEMBLY

Note: ?1MM 43CC

$113.99

$

Usually ships in 3-10 days

0

503 90 73-71

Husqvarna 503907371

PISTON ASSY

Note: ?2MM 45CC

$125.99

$

In Stock, only 1 left!

0

537 14 37-01

Husqvarna 537143701

VALVE DECOMPR
(Superseded to 537306501)

$

$

Not available

503 28 90-05

Husqvarna 503289005

PISTON RING

Note: ?2

$20.99

$

In Stock, only 2 left!

0

537 22 29-01

Husqvarna 537222901

SCREW

$3.49

$

Usually ships in 3-10 days

0

503 95 27-01

Husqvarna 503952701

GASKET
(Superseded to 502438001)

$4.99

$

Usually ships in 3-10 days

0

503 95 63-02

Husqvarna 503956302

CYLINDER
(Superseded to 505034804)

Note: F, R, RX ?2MM 45CC

$

$

Not available
