343 R - Husqvarna String Trimmer (SN: 20064000001 - 20103600000) CARBURETOR & AIR FILTER Parts Diagram

String Trimmer

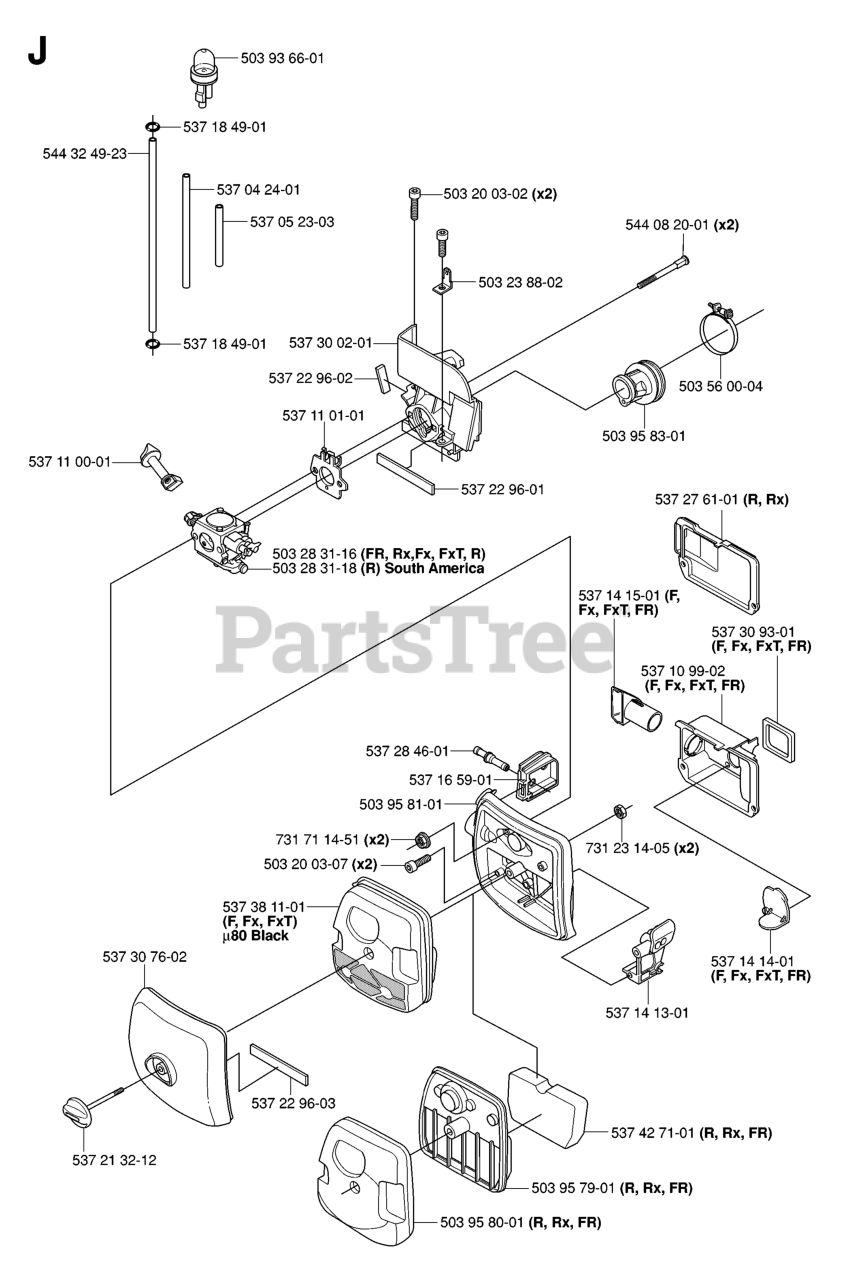

CARBURETOR & AIR FILTER Parts Diagram

  • Title

731 23 14-05

Husqvarna 731231405

NUT M6M M5

$5.99

$

In Stock, only 3 left!

0

537 27 61-01

Husqvarna 537276101

COVER

$

$

Not available

503 56 00-04

Husqvarna 503560004

%CLAMP
(Superseded to 505283309)

$6.49

$

In Stock, Qty 5

0

503 28 31-18

Husqvarna 503283118

CARBURETOR

$136.99

$

Usually ships in 3-10 days

0

537 11 01-01

Husqvarna 537110101

SPACER WASHER

$

$

Not available

537 30 02-01

Husqvarna 537300201

PARTITION

$20.99

$

Usually ships in 3-10 days

0

537 22 96-01

Husqvarna 537229601

SEAL

$

$

Not available

537 42 71-01

Husqvarna 537427101

AIR FILTER

$11.99

$

In Stock, only 4 left!

0

537 05 23-03

Husqvarna 537052303

NOSE
(Superseded to 581756140)

$7.99

$

In Stock, Qty 9

0

537 28 46-01

Husqvarna 537284601

PIPE

$

$

Not available

503 93 66-01

Husqvarna 503936601

AIR PURGE BUBBLE

$18.99

$

In Stock, Qty 20+

0

503 95 80-01

Husqvarna 503958001

COVER

$12.99

$

Usually ships in 3-10 days

0

537 18 49-01

Husqvarna 537184901

O-RING

$7.49

$

In Stock, Qty 20+

0

537 14 13-01

Husqvarna 537141301

SCREW DRIVER GUIDE

$5.99

$

Usually ships in 3-10 days

0

537 11 00-01

Husqvarna 537110001

CHOKE CONTROL

$7.99

$

In Stock, only 3 left!

0

503 95 79-01

Husqvarna 503957901

BASE

$10.99

$

Usually ships in 3-10 days

0

503 95 83-01

Husqvarna 503958301

PIPE

$26.99

$

Usually ships in 3-10 days

0

537 38 11-01

Husqvarna 537381101

AIR FILTER

$28.99

$

Usually ships in 3-10 days

0

537 16 59-01

Husqvarna 537165901

GROMMET

$

$

Not available

537 30 76-02

Husqvarna 537307602

RP FILTER COVER COMP
(Superseded to 505198501)

$22.99

$

Usually ships in 3-10 days

0

537 10 99-02

Husqvarna 537109902

AIR CAN

$

$

Not available

537 04 24-01

Husqvarna 537042401

HOSE.FUEL L=102

$4.99

$

In Stock, Qty 20+

0

537 30 93-01

Husqvarna 537309301

SEAL

$

$

Not available

537 21 32-12

Husqvarna 537213212

HANDLE AIR FILTER COVER

$7.99

$

Usually ships in 3-10 days

0

503 23 88-02

Husqvarna 503238802

PIN

$

$

Not available

731 71 14-51

Husqvarna 731711451

NUT

$6.49

$

In Stock, only 3 left!

0

537 14 15-01

Husqvarna 537141501

AIR CONDUCTOR

$

$

Not available

503 95 81-01

Husqvarna 503958101

FILTER HOLDER

$26.99

$

Usually ships in 3-10 days

0

537 22 96-02

Husqvarna 537229602

SEAL

$

$

Not available

503 28 31-16

Husqvarna 503283116

CARBURETOR

$113.99

$

In Stock, only 1 left!

0

537 22 96-03

Husqvarna 537229603

SEAL

$6.99

$

Usually ships in 3-10 days

0

503 20 03-02

Husqvarna 503200302

SCREW IHSCFM

$4.99

$

Usually ships in 3-10 days

0

544 08 20-01

Husqvarna 544082001

SCREW CARBURETOR

$5.99

$

Usually ships in 3-10 days

0

537 14 14-01

Husqvarna 537141401

COVER

$

$

Not available

544 32 49-23

Husqvarna 544324923

FUEL HOSE
(Superseded to 581756123)

$8.99

$

Usually ships in 3-10 days

0
