34344 - Troy-Bilt 21" Walk-Behind Mower (SN: 343441100101 - 343441199999) ENGINE, MOWER DECK & BLADE ASSY. Parts Diagram

21" Walk-Behind Mower

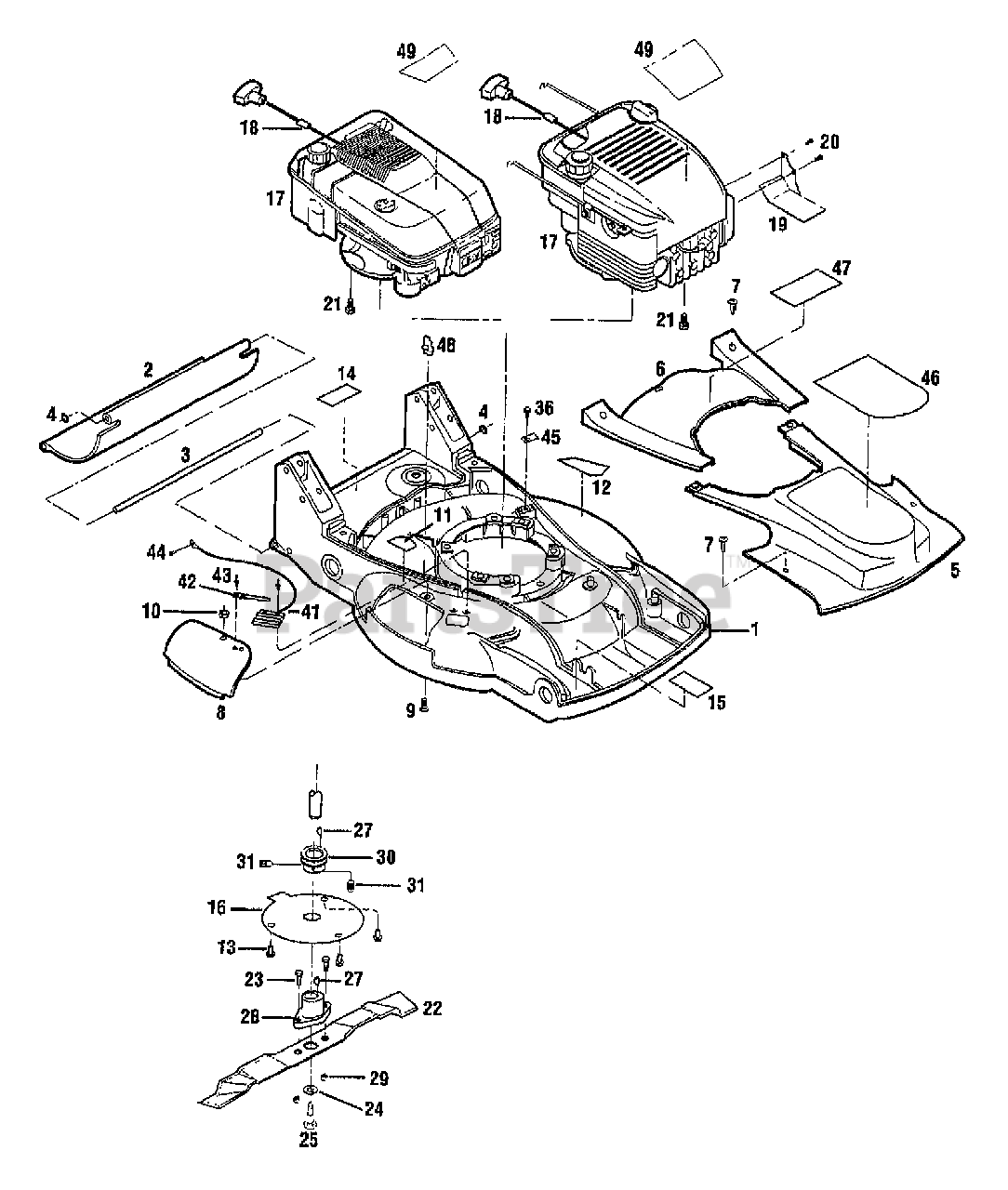

ENGINE, MOWER DECK & BLADE ASSY. Parts Diagram

  • Title

1

Troy-Bilt 1904120

MOWER DECK W/DECALS (INCL. 2-4,9,11,12,14, 15,41 & 43)

$

$

Currently unavailable

2

MTD 1902656

FLAP-SAFETY WITH NOTCH

$

$

Not available

3

MTD 1902721

ROD

$

$

Not available

4

Troy-Bilt 1185304

RING-RET. "E".312 ID

$

$

Not available

5

Troy-Bilt 1904122

COVER W/DECAL FRONT (INCL. 46)

$

$

Not available

6

MTD 1768952

COVER-REAR W/DECAL (INCL. 47)

$

$

Not available

7

MTD 1766503

SCREW- M12-24X.63 THREAD FORMING

$

$

Not available

8

MTD 1902112

DOOR-DISCHARGE W/TAB (INCL. 42 & 43)

$

$

Not available

9

MTD 1766512

SCR-SPECIAL 5/16-24X.75

$

$

Not available

10

Troy-Bilt 1766514

NUT-HT/LK 5/16-24
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

11

MTD 1768434

DECAL-DANGER USE GUARD (34320,34320C,34321, 34321C,34322,34322C,34323,34323C)

$

$

Not available

11

Troy-Bilt 1915369

DECAL-DANGER GUARD (34044,34045,34046)
(Superseded to 777S00008)

$

$

Not available

12

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH (34321,34321C,34322, 34322C,34323,34323C)
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1768436

DECAL-WARNING THROWN OBJECT

Note: (34320,34320C, 34321,34321C,34322,34322C,34323,34323C)

$

$

Currently unavailable

14

Troy-Bilt 1915371

DECAL-THROWN OBJECTS (34044,34045,34046)

$

$

Currently unavailable

15

MTD 1768435

DECAL-CAUTION PINCH POINT (34321,34321C, 34322,34322C,34323,34323C)

$

$

Not available

15

Troy-Bilt 1915370

DECAL-CAUTION PINCH POINT (34045,34046)

$

$

Currently unavailable

16

Troy-Bilt 1909893

PLATE-SHIELD GRASS

$

$

Currently unavailable

17

0

ENGINE, BRIGGS & STRATTON 4HP (ACTU. 5HP) #XTE 12F802-1174-01 (34320,34321)

$

$

Not available

17

0

ENGINE, BRIGGS & STRATTON 5HP #12F802-0833- 01 (34320C,34321C)

$

$

Not available

17

0

ENGINE, BRIGGS & STRATTON 5HP #XTE 12F802- 1174-01 (34322)

$

$

Not available

17

0

ENGINE, BRIGGS & STRATTON 5HP 12F802-0833- 01 (34322C)

$

$

Not available

17

0

ENGINE, BRIGGS & STRATTON 5HP 12F807-1174- 01 (34323)

$

$

Not available

17

0

ENGINE, BRIGGS & STRATTON 5HP 12F802-0835- 01 ELEC. START (34323C)

$

$

Not available

18

Troy-Bilt 1746425

STOP-STARTER ROPE

$

$

Not available

19

MTD 1766513001

SHIELD-HEAT PNT

$

$

Not available

20

Troy-Bilt 90002

SCR-SELF TAP

$

$

Currently unavailable

21

Troy-Bilt 1767610

SCR-HH 3/8-16X1.25 THDFRM

$

$

Not available

22

Troy-Bilt 1768306

KIT-BLADE 21" MULCH MOWER (INCL. 23 & 29)

$

$

Currently unavailable

22

Troy-Bilt 1764381

BLADE-MULCHER 21" (BLADE ONLY)

$43.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

25

MTD 1746688

SCR-SHLDR 3/8-24X1.63

$

$

Not available

26

0

THIS REF. NO. NOT USED

$

$

Not available

27

MTD 1185885

KEY-WOODRUFF

$

$

Not available

28

MTD 1766541

COUPLING-BLADE

$

$

Not available

29

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

30

MTD 1766546

SHEAVE-ENGINE {NOT 34320,34320C,34044}

$

$

Not available

31

Troy-Bilt 1738845

SCR-SQHD 1/4-20X1/2 GR5 {NOT 34320,34320C, 34044}

$

$

Not available

32

0

THIS REF. NO. NOT USED

$

$

Not available

33

0

THIS REF. NO. NOT USED

$

$

Not available

34

0

THIS REF. NO. NOT USED

$

$

Not available

35

0

THIS REF. NO. NOT USED

$

$

Not available

36

0

THIS REF. NO. NOT USED

$

$

Not available

37

0

THIS REF. NO. NOT USED

$

$

Not available

38

0

THIS REF. NO. NOT USED

$

$

Not available

39

0

THIS REF. NO. NOT USED

$

$

Not available

40

0

THIS REF. NO. NOT USED

$

$

Not available

41

Troy-Bilt 1768443

SWITCH-IGNITION GROUND

$

$

Not available

42

MTD 1764197

TAB-SWITCH

$

$

Not available

43

Troy-Bilt 97000

RIVET-POPOP

$

$

Currently unavailable

44

MTD 1902137

SCR-HH 10-24X.25 THRD FRM

$

$

Not available

45

0

THIS REF. NO. NOT USED

$

$

Not available

46

MTD 1915004

DECAL-COVER

$

$

Not available

47

MTD 1768743

DECAL-WARNING SAFETY LIST

$

$

Not available

47

Troy-Bilt 1915372

DECAL-WARNING REAR COVER {34044,34045,34046}

$

$

Currently unavailable

48

Troy-Bilt 9218

CLIP-SPECIAL {NOT 34320,34320C,34044}
(Superseded to GW-9218)

$

$

Not available

49

MTD 1915006

DECAL-ENGINE 4HP {34320,34320C}

$

$

Not available

49

MTD 1915002

DECAL-ENGINE (34321,34321C,34322,34322C, 34323,34323C,34044))

$

$

Not available

49

MTD 1915761

DECAL-LOGO 6HP T/B (34045,34046)

$

$

Not available
