34363 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower Drive Assembly Parts Diagram

33" Wide-Cut Walk-Behind Mower

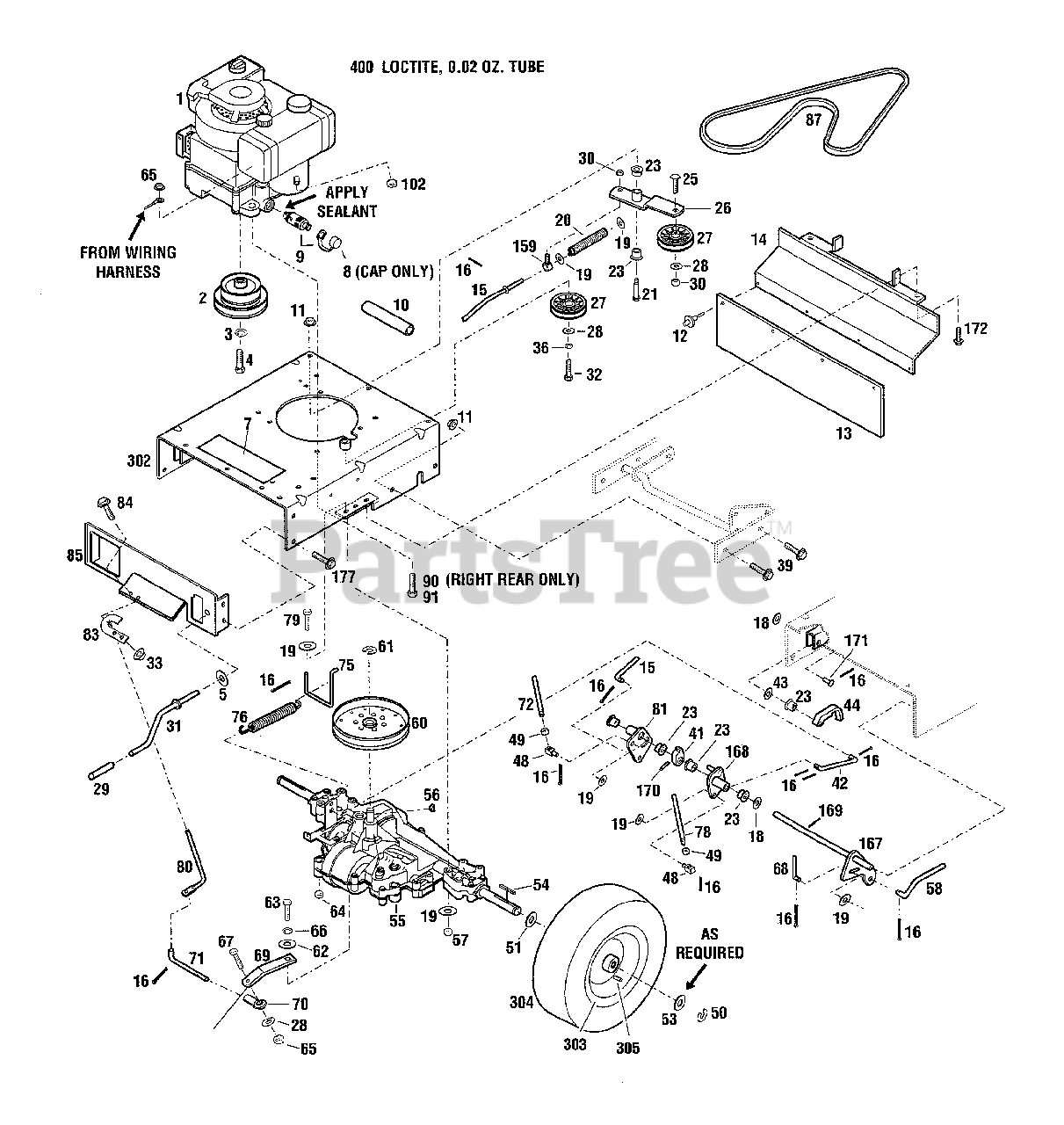

Drive Assembly Parts Diagram

  • Title

1

Engine

Note: Order parts from your local authorized engine service dealer. Refer to engine for model / type number.

$

$

Not available

2

Troy-Bilt 1769904

Engine Pulley

$

$

Not available

3

Troy-Bilt 1100244

Lock Washer, 7/16
(Superseded to 936-0171)

$4.99

$

In Stock, Qty 6

0

4

Troy-Bilt 1740949

Bolt, 7/16-20 x 1-3/4
(Superseded to 710-04092)

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1773599

Washer, Nylon
(Superseded to 736-04070)

$

$

Not available

7

MTD 1915475

Warning Decal

$

$

Not available

8

MTD 1766326

Oil Valve Cap

$

$

Not available

9

Troy-Bilt 1768865

Oil Valve
(Superseded to 951-10517A)

Note: (Incl. Ref. 8)

$25.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1769006

Oil Drain Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, Qty 16

0

11

Troy-Bilt 1186393

Flange Locknut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 1727379

Pop Rivet, 3/16

$3.99

$

Usually ships in 3-6 days

0

13

MTD 1769870

Flap

$

$

Not available

14

MTD 1769869001

Flap Bracket

$

$

Not available

15

Troy-Bilt 1769885

Lower Transmission Rod

$

$

Not available

16

Troy-Bilt 1185147

Cotter Pin, 3/32 x 5/8
(Superseded to 914-0111)

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1890234

Flat Washer, 1/2
(Superseded to GW-20546)

$

$

Not available

19

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

20

Troy-Bilt 1711864

Compression Spring

$3.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 1763219

Shoulder Bolt

$10.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 1715538

Nyliner, 1/2

$

$

Not available

25

MTD 1748393

Carriage Bolt, 3/8-16 x 1-3/4

$

$

Not available

26

Troy-Bilt 1764920

Idler Arm
(Superseded to 687-02011-0637)

$53.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1756151

Idler Pulley

$48.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 15

0

29

Troy-Bilt 1715685

Plastic Grip
(Superseded to 720-0269)

$5.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 1733398

Top Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 7

0

31

Troy-Bilt 1915831

Lift Crank Assembly

$26.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 1100086

Bolt, 3/8-16 x 1-3/4
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 1100243

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1186347

Flange Lock Screw, 3/8-16 x 1
(Superseded to 710-04042)

$4.99

$

In Stock, Qty 6

0

41

Troy-Bilt 1769881

Interlock Cam

$8.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 1769877

Lower Brake Rod

$

$

Not available

43

MTD 1702646

Washer, Flat 1/2

$

$

Not available

44

Troy-Bilt 1770361

Interlock Latch

$19.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1725264

Swivel Block

$

$

Not available

49

Troy-Bilt 1186258

Jam Nut, 5/16-18
(Superseded to 712-3007)

$7.49

$

In Stock, only 4 left!

0

50

Troy-Bilt 1185388

Retaining Ring
(Superseded to 916-0231)

$

$

Not available

51

Troy-Bilt 1708012

Flat Washer
(Superseded to 736-0188)

$4.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 1701447

Special Washer

$4.49

$

In Stock, Qty 15

0

54

Troy-Bilt 1769781

Square Key, 3/16 x 2-1/2
(Superseded to 714-0168)

$

$

Not available

55

Transmission Assembly, Model 915-029

Note: (See "Peerless 3-Speed Transaxle"); Order parts from your local Peerless - Tecumseh dealer.

$

$

Not available

56

Troy-Bilt 1104436

Woodruff Key, 3/16 x 3/4
(Superseded to 914-0868)

$4.49

$

In Stock, only 4 left!

0

57

Troy-Bilt 1732499

Top Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

58

MTD 1770247

Lower Blade Rod

$

$

Not available

60

Troy-Bilt 1770326

Transaxle Pulley

$128.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1118808

Retaining Ring

$

$

Not available

62

Troy-Bilt 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

63

Troy-Bilt 1100002

Screw, 1/4-28 x 3/4
(Superseded to 710-0412)

$5.99

$

In Stock, Qty 9

0

64

Troy-Bilt 1186391

Flange Locknut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 19

0

65

Troy-Bilt 1110108

Locknut, 3/8-16
(Superseded to 712-0375)

$4.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 1100241

Lock Washer, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

67

Troy-Bilt 1100043

Screw, 3/8 x 1-1/4
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

68

MTD 1769888

Upper Blade Rod

$

$

Not available

69

MTD 1768140

Transmission Arm

$

$

Not available

70

Troy-Bilt 1767837

Ball Joint

$

$

Not available

71

Troy-Bilt 1768628

Shift Link Rod

$10.99

$

In Stock, only 1 left!

0

72

MTD 1769873

Upper Transmission Rod

$

$

Not available

75

Troy-Bilt 1768624

Spring Attachment Rod

$

$

Not available

76

MTD 1768636

Extension Spring

$

$

Not available

78

Troy-Bilt 1769872

Upper Brake Rod

$

$

Not available

79

Troy-Bilt 1111609

Screw, 5/16-18 x 2-3/4
(Superseded to 710-0176)

$4.99

$

In Stock, only 2 left!

0

80

Troy-Bilt 1769874

Shift Rod

$33.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 1769875

Clutch Arm Pivot

$

$

Currently unavailable

83

Troy-Bilt 1768630001

Shift Rod Bracket

$15.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 1186308

Flange Lock Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

85

Troy-Bilt 1769852001

Backplate

$

$

Not available

87

Troy-Bilt 1770334

V-Belt

$48.99

$

In Stock, Qty 12

0

90

Troy-Bilt 1768194

Thread Forming Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.99

$

In Stock, Qty 13

0

91

MTD 1762042

Thread Forming Screw, 3/8-16 x 1

$

$

Not available

102

Troy-Bilt 1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 11

0

159

MTD 1769038

Eye Bolt

$

$

Not available

167

MTD 1769882

Pivot Shaft Assembly

$

$

Not available

169

Troy-Bilt 1100350

Cotter Pin
(Superseded to 914-0115)

$4.49

$

In Stock, Qty 20+

0

168

MTD 1769878

Brake Arm

$

$

Not available

170

Troy-Bilt 1187961

Drive Pin, 5/32 x 1
(Superseded to 915-0249)

$7.49

$

In Stock, Qty 18

0

171

Troy-Bilt 1730851

Clevis Pin, 1/2 x 1-1/4

$

$

Not available

172

Troy-Bilt 1724491

Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

177

Troy-Bilt 1740496

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

302

Troy-Bilt 1916916

Frame Weldment Ass'y
(Superseded to 687-02014-0637)

Note: (Incl. Ref. 7)

$

$

Not available

303

Troy-Bilt 1768180

Wheel Rim

$

$

Not available

304

Troy-Bilt 1774129

Tire
(Superseded to 734-04237)

$130.99

$

In Stock, only 1 left!

0

305

Troy-Bilt 1718086

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

400

Troy-Bilt 97092

Loctite 242, 0.02 oz. Tube
(Superseded to GW-97092)

Note: Item not included with unit; order separately.

$

$

Not available

$

$

Not available
