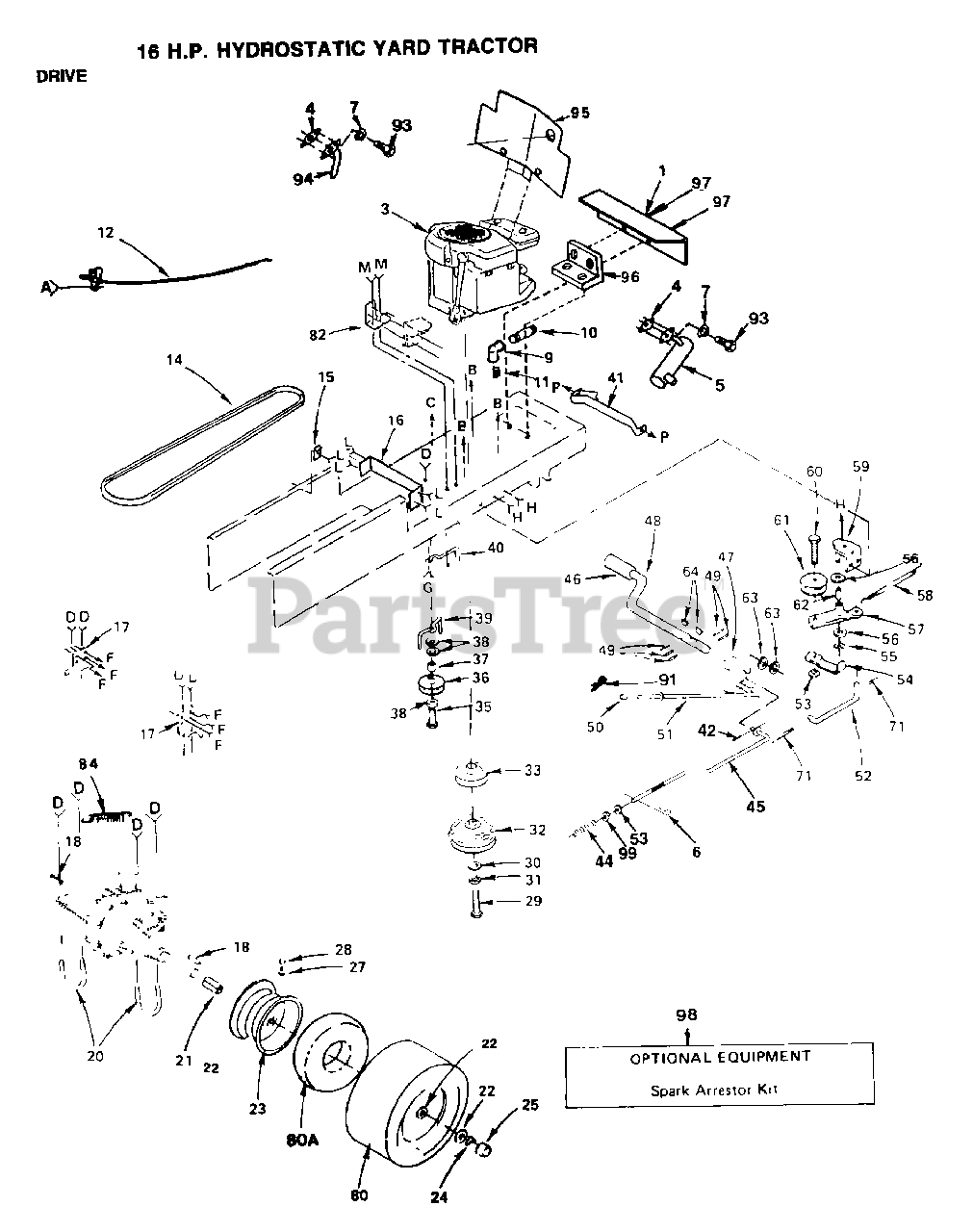

3441 E94 - Electrolux/AYP Lawn Tractor (1999) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 110012X

BAFFLE - VERTICAL

$

$

Not available

2

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

3

Electrolux/AYP 110562X

ENGINE 16 H.P. MODEL #402707 TYPE #1211 - 01

$

$

Not available

4

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

5

Electrolux/AYP 108373X

MUFFLER HYT

$

$

Not available

6

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 17210806

SCREW

$

$

Not available

9

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 18

0

10

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 18

0

11

Electrolux/AYP 91084

PLUG OIL DRAIN

$

$

Not available

12

Electrolux/AYP 121524X

CONTROL THROTTLE
(Superseded to 583665701)

$21.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 108103X

SUB= 120418X

$

$

Not available

15

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

16

Electrolux/AYP 121187X

PLATE TRANS SUPT
(Superseded to 532121187)

$

$

Not available

17

Electrolux/AYP 121191X

SUB= 126649X

$

$

Not available

18

Electrolux/AYP 2703J

SUB= 123583X

$

$

Not available

19

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 121189X

U BOLT
(Superseded to 532121189)

$

$

Not available

21

Electrolux/AYP 121199X

SPACER SPLIT
(Superseded to 532121199)

$

$

Not available

22

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$3.49

$

In Stock, Qty 20+

0

23

Electrolux/AYP 106108X

SUB= 106108X417

$

$

Not available

24

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 74610764

SUB= 71130768

$

$

Not available

30

Electrolux/AYP 19152405

WASHER LT
(Superseded to 819152405)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 108218X

SUB= 142600

$

$

Not available

33

Electrolux/AYP 109841X

SUB= 136905

$

$

Not available

35

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 4859J

SUB= 123674X

$

$

Not available

37

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 105730X

"KEEPER,BLT ENG LT"
(Superseded to 532105730)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 121218X

KEEPER BELT ENGLH
(Superseded to 532121218)

$

$

Not available

41

Electrolux/AYP 109169X

SUB= 109172X

$

$

Not available

42

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 7

0

45

Electrolux/AYP 121200X

ROD BRAKE
(Superseded to 532121200)

$

$

Not available

46

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

47

Electrolux/AYP 106918X

ARM BRAKE LT
(Superseded to 583653301)

$

$

Not available

48

Electrolux/AYP 109037X

FOOT SHAFT PEDAL

$

$

Not available

49

Murray 1572H

SUB= 2882J

$

$

Not available

50

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$4.99

$

In Stock, only 2 left!

0

51

Electrolux/AYP 105844X

SUB= 125637X

$

$

Not available

52

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 106499X

SUB= 123205X

$

$

Not available

55

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 13

0

56

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

57

Electrolux/AYP 105707X

"ASS T, BELLCRAN"
(Superseded to 584368501)

$

$

Not available

58

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$10.99

$

In Stock, Qty 20+

0

59

Electrolux/AYP 105724X

SUB= 123102X

$

$

Not available

60

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 106298X

SUB= 139245

$

$

Not available

62

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

In Stock, Qty 20+

0

64

Electrolux/AYP 228M

KEY WOODRUFF #9

$

$

Not available

65

Electrolux/AYP 17080408

SCREW
(Superseded to 817080408)

$2.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

67

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

69

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

71

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 122082X

SUB= 918122082X
(Superseded to 532125833)

$194.99

$

In Stock, only 1 left!

0

80A

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

84

Electrolux/AYP 110442X

SUB= 146682

$

$

Not available

88

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

90

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

91

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

92

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

94

Electrolux/AYP 100229L

EXHAUST TUBE T

$

$

Not available

95

Electrolux/AYP 104917X

BAFFLE YT

$

$

Not available

96

Electrolux/AYP 110013X

BRACKET HEAT SHIELD

$

$

Not available

97

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 100091M

SUB= 132922

$

$

Not available

99

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0
