3441 E94 - Electrolux/AYP Lawn Tractor (1999) PUMP Parts Diagram

Lawn Tractor

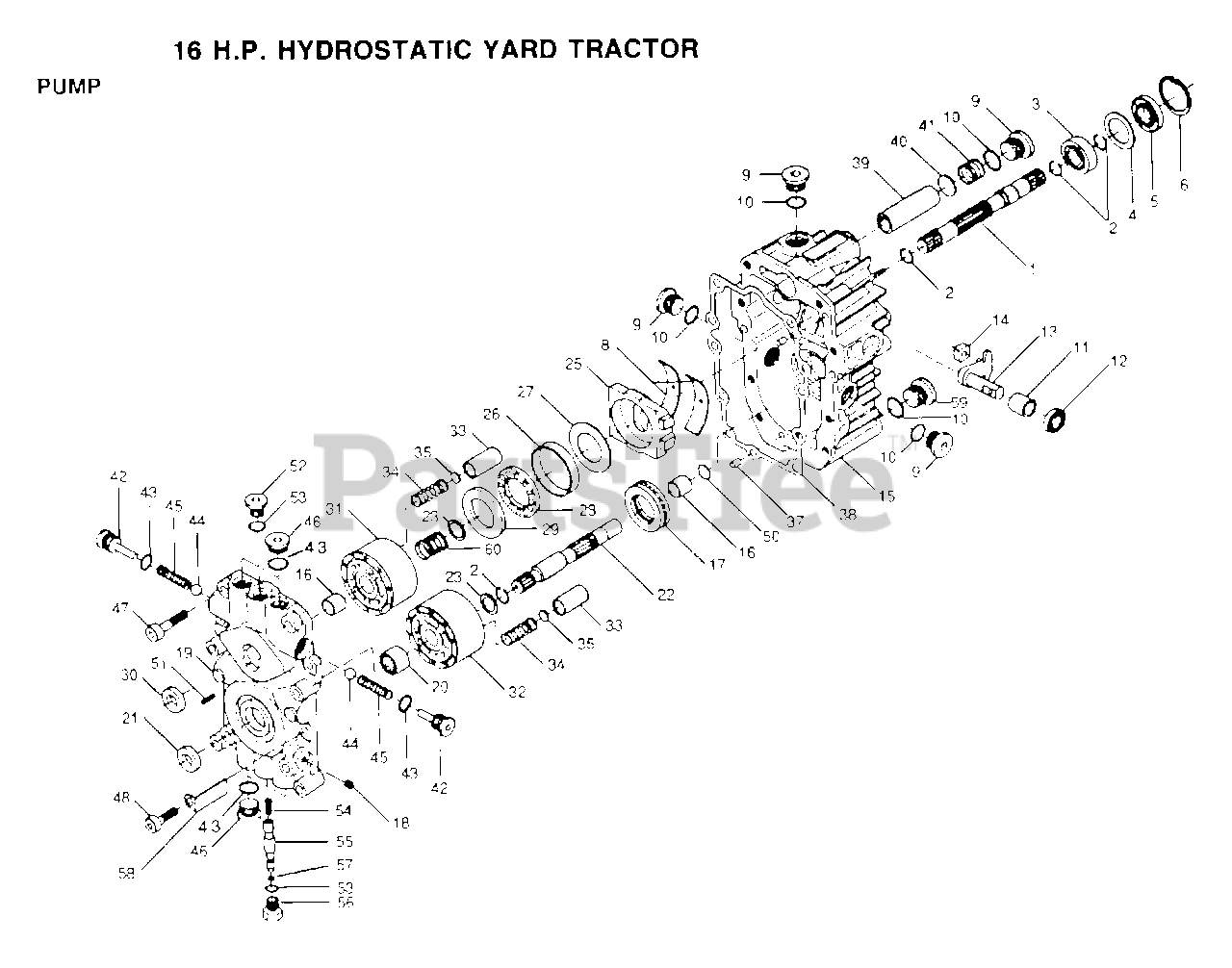

PUMP Parts Diagram

  • Title

1

Electrolux/AYP 122756X

SHAFT.PU.2003022
(Superseded to 532122756)

$

$

Not available

2

Electrolux/AYP 122716X

RETAINIANG RING-(2003016)
(Superseded to 532142928)

$

$

Not available

3

Electrolux/AYP 122745X

BALL BEARING
(Superseded to 532122745)

$143.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 122715X

SPACER
(Superseded to 532122715)

$

$

Not available

5

Electrolux/AYP 122700X

SEAL LIP
(Superseded to 532142932)

$

$

Not available

6

Electrolux/AYP 122699X

RING.RET.2003052
(Superseded to 532142933)

$

$

Not available

8

Electrolux/AYP 122767X

CRADLE BEARING (2003023)
(Superseded to 532142935)

$47.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 122729X

PLUG

$22.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 122746X

O RING

$

$

Not available

11

Electrolux/AYP 122747X

BEARING
(Superseded to 532122747)

$

$

Not available

12

Electrolux/AYP 122717X

SEAL.9008000-0126
(Superseded to 532142940)

$

$

Not available

13

Electrolux/AYP 122748X

TRUNION ARM (2003005)
(Superseded to 532122748)

$

$

Not available

14

Electrolux/AYP 122749X

GUIDE.2000015.HYD
(Superseded to 532122749)

$

$

Not available

15

Electrolux/AYP 122768X

SUB= 121430X

$

$

Not available

16

Electrolux/AYP 122769X

JOURNAL BRG(2003071)
(Superseded to 583667601)

$

$

Not available

17

Electrolux/AYP 122770X

SUB= 142936

$

$

Not available

18

Electrolux/AYP 122771

SUB= 122771X

$

$

Not available

19

Electrolux/AYP 122772X

CENTER SECTION

$561.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 122773X

NEEDLE BEARING
(Superseded to 532122773)

$

$

Not available

21

Electrolux/AYP 122722X

LIP SEAL-9008000-0127
(Superseded to 532122722)

$15.99

$

In Stock, only 4 left!

0

22

Electrolux/AYP 122750X

SHAFT
(Superseded to 532122750)

$

$

Not available

23

Electrolux/AYP 122774X

WASHER
(Superseded to 582796201)

$

$

Not available

25

Electrolux/AYP 122775X

SUB= 121430X

$

$

Not available

26

Electrolux/AYP 122776X

SUB= 121430X

$

$

Not available

27

Electrolux/AYP 122777X

SUB= 121430X

$

$

Not available

28

Electrolux/AYP 122778X

SUB= 121430X
(Superseded to 121430X)

$

$

Not available

29

Electrolux/AYP 122779X

SUB= 121430X

$

$

Not available

30

Electrolux/AYP 122723X

SEAL LIP
(Superseded to 532122723)

$

$

Not available

31

Electrolux/AYP 122780X

CYLINDER BLOCK

$

$

Not available

32

Electrolux/AYP 122781X

CYLINDER BLOCK(70331)

$318.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 122782X

PISTON

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 122784X

PISTON SPRING

$

$

Not available

35

Electrolux/AYP 122785X

WASHER.TR.2003019
(Superseded to 583667701)

$

$

Not available

37

Electrolux/AYP 122786X

PIN
(Superseded to 532122786)

$

$

Not available

38

Electrolux/AYP 122718X

GASKET.20030600
(Superseded to 532122718)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 122731X

FILTER
(Superseded to 532122731)

$89.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 122730X

WASHER (2000011)
(Superseded to 532122730)

$

$

Not available

41

Electrolux/AYP 122728X

SPRING
(Superseded to 532122728)

$

$

Not available

42

Electrolux/AYP 122706X

PLUG

$

$

Not available

43

Electrolux/AYP 122705X

O RING

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 122702X

BALL

$2.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 122704X

SPRING.2003012.HY
(Superseded to 583667101)

$

$

Not available

46

Electrolux/AYP 122787X

PLUG
(Superseded to 142914)

$

$

Not available

47

Electrolux/AYP 122752X

SCREW9007314-0808
(Superseded to 532122752)

$

$

Not available

48

Electrolux/AYP 122753X

SCREW

$2.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 122788X

WASHER
(Superseded to 532122788)

$

$

Not available

51

Electrolux/AYP 122789X

PIN
(Superseded to 532122789)

$

$

Not available

52

Electrolux/AYP 122754X

PLUG
(Superseded to 532122754)

$

$

Not available

53

Electrolux/AYP 122711X

O RING
(Superseded to 583667301)

$

$

Not available

54

Electrolux/AYP 122708X

SPRING

$

$

Not available

55

Electrolux/AYP 122709X

SUB= 122712X
(Superseded to 583667401)

$

$

Not available

56

Electrolux/AYP 122712X

BYPAS KT 25130011
(Superseded to 583667401)

$

$

Not available

57

Electrolux/AYP 122710X

O RING (9004175-0027)
(Superseded to 583667201)

$

$

Not available

58

Electrolux/AYP 122727X

ADHESIVE LABEL

$

$

Not available

59

Electrolux/AYP 122790X

PLUG
(Superseded to 532122790)

$

$

Not available

60

Electrolux/AYP 122791X

SPRING

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 121430X

PUMP.BDU-10S-114
(Superseded to 532121430)

$

$

Not available
