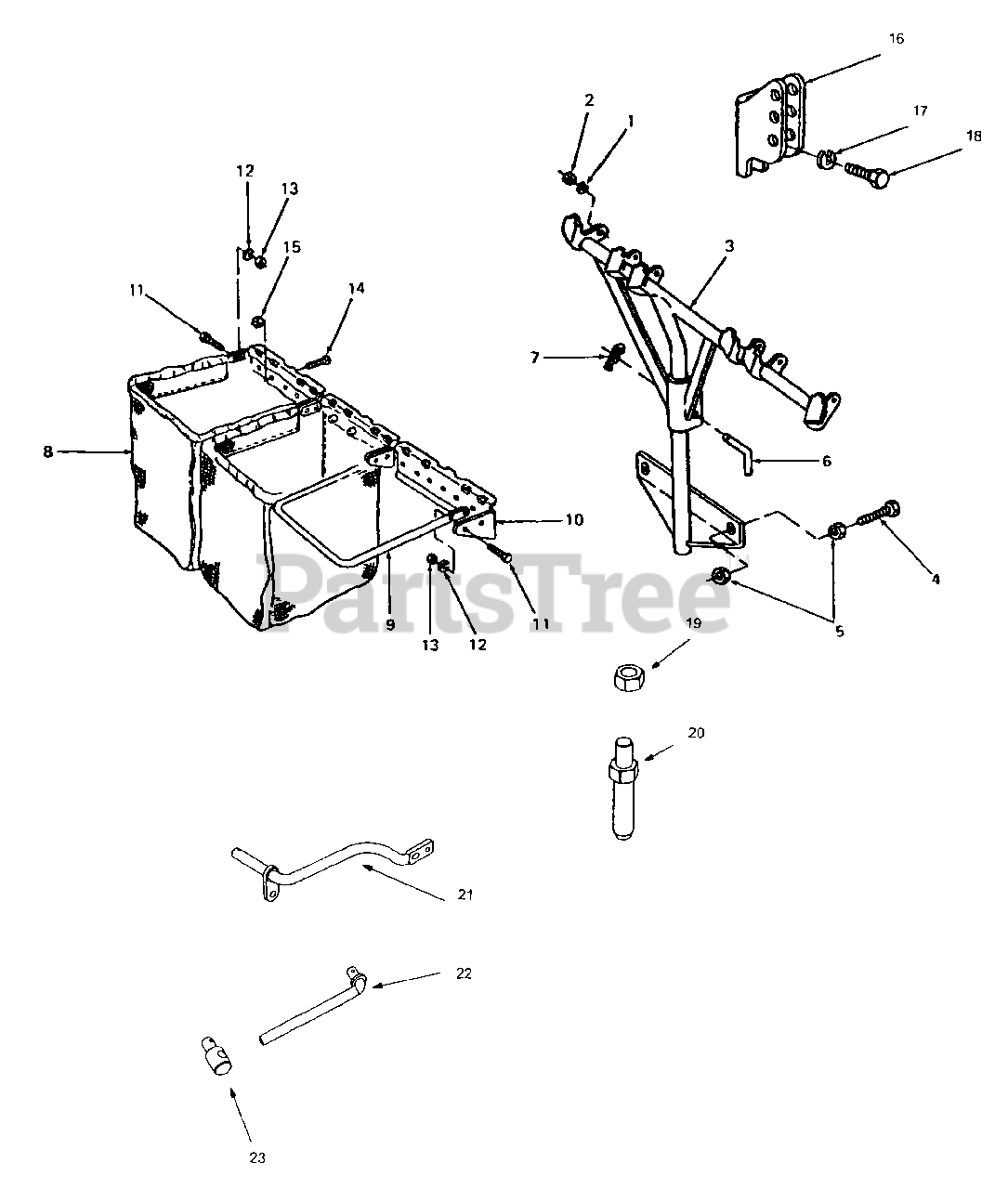

345 (190-345-100) - Cub Cadet Fan Assisted Bagger att Bag & Support Parts Diagram

Fan Assisted Bagger

Bag & Support Parts Diagram

  • Title

1

Cub Cadet 736-0169

Washer, Lock, 3/8
(Superseded to 936-0169)

$3.04

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$3.52

$

In Stock, Qty 8

0

3

Cub Cadet 603-0621-0637

Tube Assy, Catcher Support

$

$

Not available

4

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1.25 Lg.
(Superseded to 710-3005)

$3.30

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5
(Superseded to 912-3008)

$3.76

$

In Stock, Qty 16

0

6

Cub Cadet 711-3285

Pin, Right Angle Clevis

$31.19

$

Usually ships in 5-10 days

0

7

Cub Cadet 714-0117

Pin, Internal Cotter, 5/8 Dia.

$3.51

$

In Stock, Qty 11

0

8

Cub Cadet 964-0251

Bag, Grass Catcher

$77.86

$

In Stock, Qty 20+

0

9

Cub Cadet 749-0745A-0637

Frame, Catcher Bag

$48.82

$

In Stock, only 2 left!

0

10

Cub Cadet 17201A-0637

Bracket, Bag Frame Hanger

$58.23

$

Usually ships in 5-10 days

0

11

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg.

$4.57

$

In Stock, only 3 left!

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

13

Cub Cadet 712-0138

Nut, Hex, 1/4-28
(Superseded to 912-0138)

$

$

Not available

14

Cub Cadet 710-0192

Screw, Truss Mach, #10-24 X .38 Lg.

$2.84

$

In Stock, Qty 6

0

15

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.27

$

Usually ships in 5-10 days

0

16

Cub Cadet 13026-0637

Hitch Bracket

$49.26

$

Usually ships in 5-10 days

0

17

Cub Cadet 736-0169

Washer, Lock, 3/8
(Superseded to 936-0169)

$3.04

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 X .88 Lg.

$5.71

$

In Stock, Qty 18

0

19

Cub Cadet 712-0337

Hex Nut, 5/8-18

$3.87

$

In Stock, Qty 9

0

20

Cub Cadet 711-1290

Stud Adapter

$69.79

$

Usually ships in 5-10 days

0

21

Cub Cadet 603-0464

Reverse Rod Assy.

$

$

Not available

22

Cub Cadet 747-3382

Connecting Rod

$46.84

$

Usually ships in 5-10 days

0

23

Cub Cadet 711-1307

Adjustment Ferrule
(Superseded to 911-1307)

$

$

Not available
