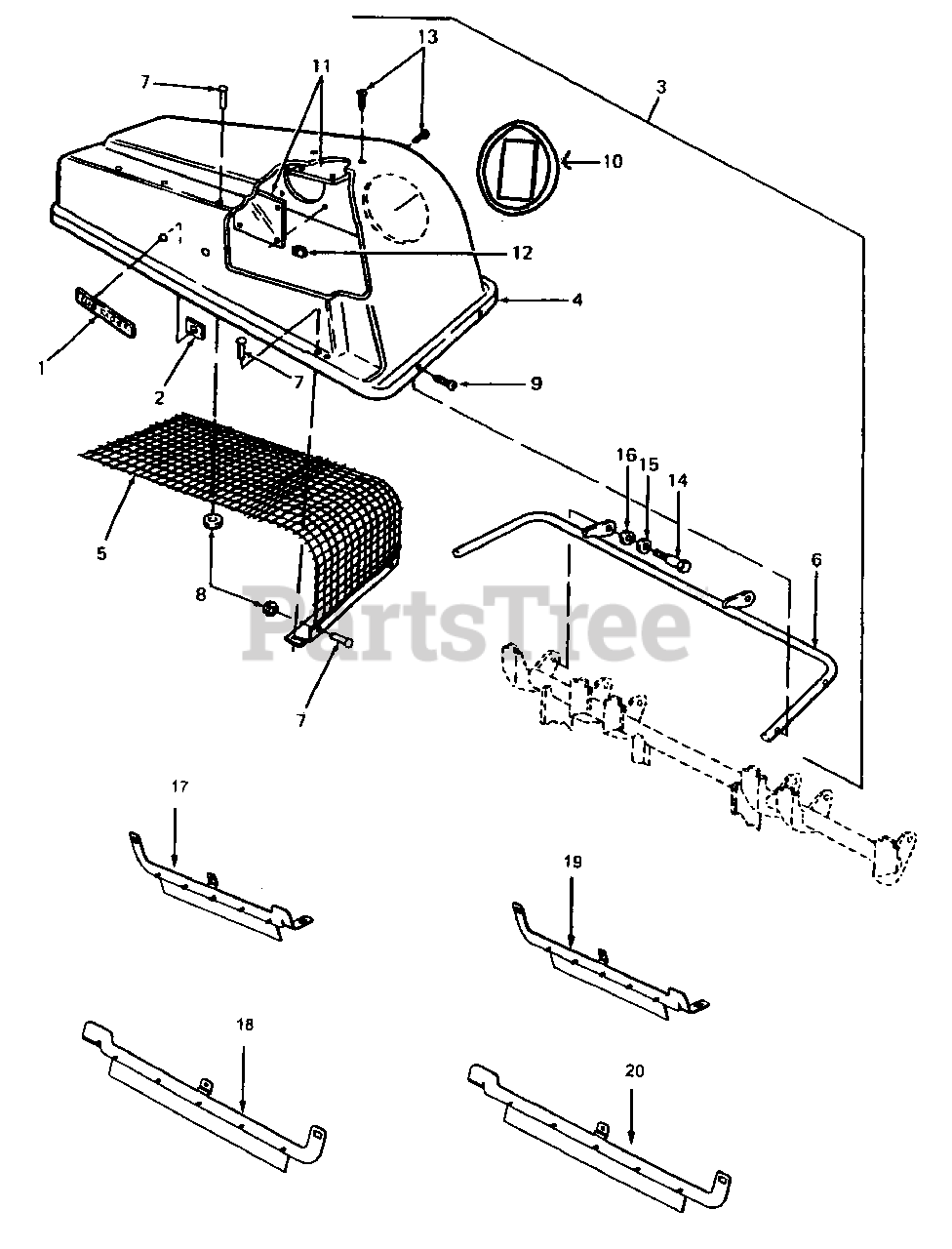

345 (190-345-100) - Cub Cadet Fan Assisted Bagger Cover Assembly & Deck Brackets Parts Diagram

Fan Assisted Bagger

Cover Assembly & Deck Brackets Parts Diagram

  • Title

1

Cub Cadet 731-3081

Plaque, Logo w/Studs
(Superseded to 731-3081A)

$

$

Not available

2

Cub Cadet 726-3040

Nut, Push-on Speed

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 603-0579

Cover Assy, Grass Catcher

$

$

Not available

4

Order 603-0579

$

$

Not available

5

Order 603-0579

$

$

Not available

6

Cub Cadet 749-0747

Bracket Assy, Catcher Cover Hinge
(Superseded to 749-0747-0637)

Variations

749-0747-0637

Cub Cadet 749-0747-0637

HINGE BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 728-0123

Rivet, Pop
(Superseded to 928-0123)

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0400

Washer, Flat, .218 X .62 X .063

$5.99

$

In Stock, Qty 9

0

9

Cub Cadet 710-0896

Screw, Hex Washer. 1/4 X .50 Lg.

$4.49

$

In Stock, Qty 15

0

10

Cub Cadet 723-0460

Seal, Tube

$

$

Not available

11

Cub Cadet 731-0824A

Plate, Plastic, 1/8 Thk X 5.62 Sq.

$

$

Not available

12

Cub Cadet 712-0147

Nut, U-Type Speed

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 910-0473

Screw, Truss Mach., #10 X .50 Lg.
(Superseded to 710-0473)

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 738-0380

Screw, Shld.

$8.49

$

In Stock, Qty 10

0

15

Cub Cadet 736-0108

Washer, Flat, .510 X.75 X .033

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0255

Washer, Bell, .515 X 1.14

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet 603-0624

Brkt. Assy-w/Flapp RH 48"

$

$

Not available

18

Cub Cadet 603-0625

Brkt. Assy-w/Flapp LH 48"

$

$

Not available

19

Cub Cadet 603-0626

Brkt. Assy-w/Flapp RH 54"
(Superseded to 903-0626)

$139.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 603-0627

Brkt. Assy-w/Flapp LH 54"
(Superseded to 903-0627)

$

$

Not available
