345 e - Husqvarna Chainsaw (SN: 20062300001 & Above) CHAIN BRAKE Parts Diagram

Chainsaw

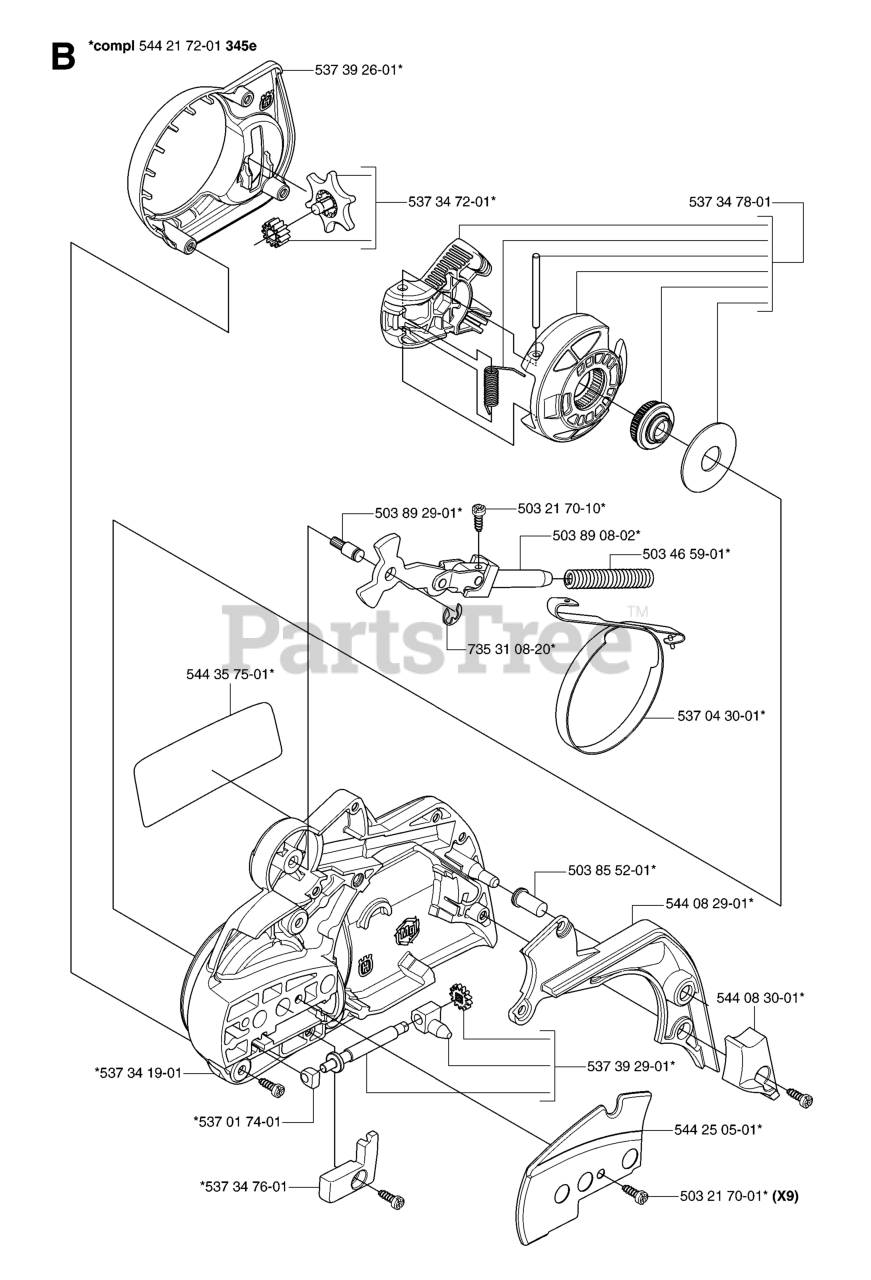

CHAIN BRAKE Parts Diagram

  • Title

537 34 76-01

Husqvarna 537347601

COVER
(Superseded to 504542801)

$5.99

$

In Stock, only 2 left!

0

503 89 08-02

Husqvarna 503890802

JOINT

$26.99

$

In Stock, only 4 left!

0

537 34 19-01

Husqvarna 537341901

CLUTCH COVER HOUSING 455E

$43.99

$

In Stock, only 1 left!

0

503 89 29-01

Husqvarna 503892901

PIN

$3.49

$

In Stock, only 3 left!

0

544 21 72-01

Husqvarna 544217201

CLUTCH HOUSING COMPLETE

$

$

Not available

544 08 30-01

Husqvarna 544083001

WEAR GUARD, CHAIN

$6.99

$

In Stock, Qty 20+

0

503 85 52-01

Husqvarna 503855201

SLEEVE

$5.99

$

In Stock, Qty 15

0

537 01 74-01

Husqvarna 537017401

SLEEVE

$5.99

$

In Stock, Qty 20+

0

537 39 29-01

Husqvarna 537392901

CHAIN TENSIONER SCREW, COMP.

$7.99

$

In Stock, only 3 left!

0

537 34 72-01

Husqvarna 537347201

CHAIN TENSIONER WHEEL, COMP.

$7.99

$

In Stock, only 2 left!

0

544 08 29-01

Husqvarna 544082901

COVER, CHAIN BRAKE

$7.99

$

In Stock, only 2 left!

0

544 25 05-01

Husqvarna 544250501

PLATE

$6.99

$

In Stock, only 1 left!

0

544 35 75-01

Husqvarna 544357501

DECAL, CLUTCH HOUSING

$3.49

$

In Stock, only 1 left!

0

537 04 30-01

Husqvarna 537043001

BRAKE BAND

$17.99

$

Usually ships in 3-10 days

0

503 21 70-01

Husqvarna 503217001

$

$

Currently unavailable

503 21 70-10

Husqvarna 503217010

SCREW

$3.49

$

In Stock, Qty 20+

0

503 46 59-01

Husqvarna 503465901

SPRING

$7.99

$

In Stock, Qty 5

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$3.49

$

In Stock, Qty 12

0

537 34 78-01

Husqvarna 537347801

KNOB, COMPLETE

$22.99

$

In Stock, only 1 left!

0

537 39 26-01

Husqvarna 537392601

HEAT SHIELD

$9.49

$

In Stock, only 3 left!

0
