345 RX - Husqvarna String Trimmer (SN: 20103600001 - 20144899999) BEVEL GEAR Parts Diagram

String Trimmer

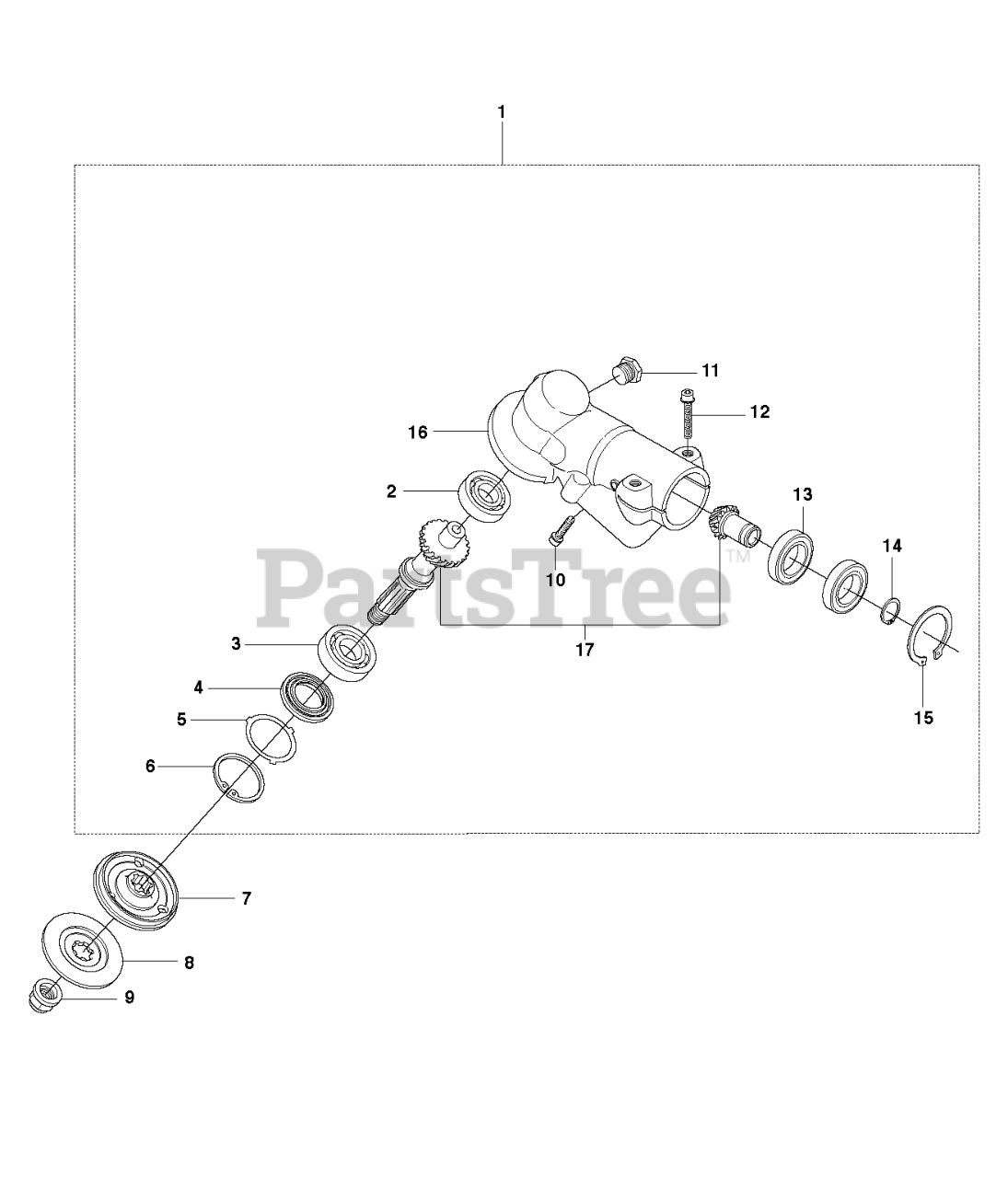

BEVEL GEAR Parts Diagram

  • Title

6

Husqvarna 735313310

RETAINING RING SGH 35

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 502297801

RP_GEAR HOUSING ASSY
(Superseded to 588163301)

Note: F, Fx, FxT

$226.17

$

Usually ships in 3-10 days

0

12

Husqvarna 503200225

SCREW

$4.99

$

In Stock, Qty 15

0

2

Husqvarna 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503261701

SEAL

$14.99

$

In Stock, only 1 left!

0

13

Husqvarna 738218712

BALL BEARING

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 502291101

NUT BLADE

$7.99

$

In Stock, Qty 9

0

16

Husqvarna 502297901

GEAR HOUSING

$121.99

$

Usually ships in 3-10 days

0

15

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 503201501

PLUG

$9.99

$

In Stock, Qty 6

0

14

Husqvarna 735311700

RETAINING RING SGA 15

$5.99

$

In Stock, Qty 12

0

8

Husqvarna 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537290601

RP_SPARE PARTS KIT

$85.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503200316

SCREW

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 544197801

DRIVER

Note: "1"""

$56.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503758901

WASHER

$2.23

$

In Stock, only 1 left!

0

3

Husqvarna 503250801

BALL BEARING

$24.99

$

In Stock, Qty 9

0
